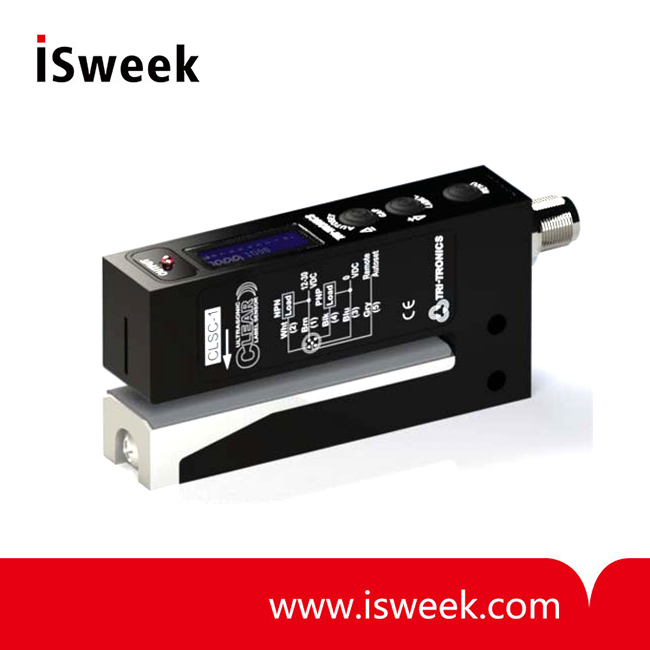

Ultrasonic Clear Label Sensor - CLS Series

? Supply Voltage: 12 to 30 VDC
? Current Requirements: 95mA @ 12 VDC, 45mA @ 30 VDC
? Ambient Temperature: 4°C to 50°C (39°F to 122°F)
? Response Time: 200μs
? Repeatability: 125μs
? Waterproof ratings: NEMA 4X, 6P and IP65

Model Number: CLS Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Ultrasonic Clear Label Sensor Description
The first Ultrasonic Clear Label Sensor with OLED graphic display for monitoring sensor performance. Designed into the sensor are all the Ease-of-Use characteristics that have made TRI-TRONICS' sensors so well known in the industry.

Ultrasonic technology coupled with digital signal processing makes the detection of clear and opaque labels on clear or opaque backing material easy. The introduction of the OLED graphic display in place of simple indicator lights offers the user has an unprecedented view of the sensor's performance, options, program modes, and helpful simple instructions never before offered in a clear label sensor. A stainless steel removable gap plate and anodized aluminum housing makes this sensor rugged. Setup is fast with one press of a button for the label and one press for the label gap.

Ultrasonic Clear Label Sensor Features
? OLED Alphanumeric Display
? 10 Bar Graphic Contrast Indicator
? Static and Dynamic Numerical Display
? One button AUTOSET (Gap Set)
? Tweak-able (Momentary Up/Down Adjustable)
? Available Timers and Delays
? Cable and Connector Version (M12 and M8)
? Removable Gap Plate
? High Speed (200μs) (1800'/548M per minute)
? Durable and Robust Housing
? Compatible with Existing Mounting Configurations

Ultrasonic Clear Label Sensor Benefits
? Easy to Set Up
? Highly Accurate and Precise
? Low Maintenance
? Affordable, Low-Cost Option
? Made in USA
? Durable and Reliable

Ultrasonic Clear Label Sensor Applications
? Label Rewinding
? Label Applying
? Clear, Paper, Foil, or Mylar Labels
? Splice Detection
? Fold or Crease Detection

Ultrasonic Clear Label Sensor Specifications

SUPPLY VOLTAGE	? 12 to 30 VDC ? Polarity Protected Note: For use in Class 2 Circuits
CURRENT REQUIREMENTS	? 95mA @ 12 VDC, 45mA @ 30 VDC
DIGITAL OUTPUTS	? (1) NPN and (1) PNP open collector output 150mA Max; <2V Residual Voltage (Note: On CLSC-1M8, NPN & PNP are software selectable). ? All outputs are continuously short circuit protected
REMOTE AUTOSET INPUT	? Momentary sinking or sourcing input; 1.2mA max; Software Selectable
DIAGNOSTIC INDICATORS	? OLED Graphic Display - Includes Contrast Indicator, Numerical Display, Set Point and Trigger Point, and all sensor options and modes. ? Red LED Output Indicator-Illuminates when the sensor's output transistors are "ON". Note: If output LED flashes on power up, a short circuit condition exists.
PUSHBUTTON CONTROL	? Three (3) push button controls ? Gap (for Gap AUTOSET) ? Label (for multi-layered labels) ? Menu (for accessing Options)
HYSTERESIS	? Dynamic - adjusted by AUTOSET
RESPONSE TIME	? 200μs
REPEATABILITY	? 125μs
AMBIENT TEMPERATURE	? 4°C to 50°C (39°F to 122°F)
RUGGED CONSTRUCTION	? Chemical resistant, high impact Aluminum housing ? Waterproof ratings: NEMA 4X, 6P and IP65 ? Conforms to heavy industry grade CE requirements
THRESHOLD SET	? 1-Point, 2-Point, or Dynamic AUTOSET; manually or remotely.
THRESHOLD ADJUST	? Manual or AUTO Adjust
OUTPUT TIMERS	? On Delay, Off Delay, One Shot, or Debounce (Advanced Option, software selectable).
CONNECTOR	? M12 5-Pin, M8 4-Pin, or 6' (1.8m) Shielded Cable

Ultrasonic Clear Label Sensor How to Specify

1. Select Sensor:
Ultrasonic Clear Label Sensor
2. Select Cable or Connector:
Blank = 6’ (1.8m) Cable
C = Connector M12, 5-Pin (Standard)
3. Select Connector Type:
-1 = Standard M12 Connector (see #2). Includes both NPN and PNP
-1M8 = M8, 4-Pin Connector NPN/PNP Software Selectable
-1M8LE = Wired like LERC

? CLS-1 - Cabled. Advanced timer. 12-30 VDC polarity protected.
? CLSC-1 - M12 5-pin connector. Advanced timer. 12-30 VDC polarity protected.
? CLSC-1M8 - M8 4-pin connector, Single Output with Remote Set. Advanced timer. 12-30 VDC polarity protected.
? CLSC-1M8LE - M8 4-pin connector, NPN and PNP Output. Advanced timer. 12-30 VDC polarity protected.
