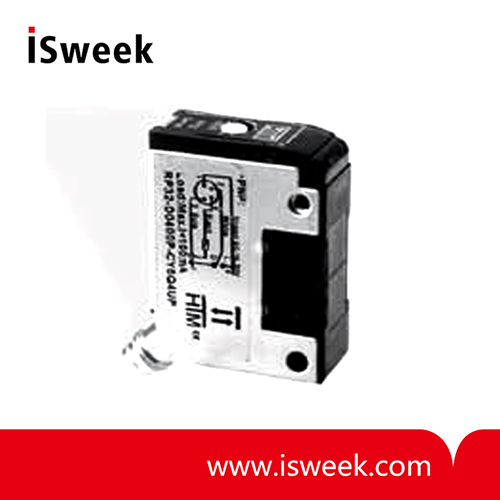

Miniature Photoelectric Sensor - RP32 Series

? Through Beam: 8.5m
? Power Supply: 10 - 30 VDC
? Current Consumption: 35mA max.
? Ripple: ±10% (within Vs tolerance)
? Light Emission: 660nm Infrared LED?
? Mechanical Protection?: IP67 / NEMA 6???
? Operating Temp.?: -25 ~ +55°C (-13 ~+131°F)?

Model Number: RP32 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RP32 Series Miniature Photoelectric Sensor Description
? Compact & Rugged Design
? Stainless Steel and Glass Fiber Reinforced Plastic Housing
? Shock & Vibration Resistant

Modes	Ranges
Through Beam	8.5m
Retroreflective	4m
Diffuse	400mm
Clear Object Detection	500mm

RP32 Series Miniature Photoelectric Sensor

	Through-beam	Diffuse	Retroreflective	Clear Object Detection
Part Numbers
Emitter	RP32-T8500D- EY6Q4LP
NPN	RP32-T8500N- CY6Q4UP	RP43-D0400N- CY6Q4UP	RP32-L4000N- CY6Q4UP-PF	RP32-L0500N- CY6Q4UP-PD
PNP	RP32-T8500P- CY6Q4UP	RP43-D0400P- CY6Q4UP	RP32-L4000P- CY6Q4UP-PF	RP32-L0500P- CY6Q4UP-PD
Technical Data
Operating Range	8.5m (27.8 ft.)	400mm (15.7 in.)	4m (13 ft.)	0.5m (19 in.)
Power Supply	10 - 30 VDC
Current Consumption	35mA max.
Ripple	±10% (within Vs tolerance)
Light Emission	660nm Infrared LED
Angle of Divergence	approx. 3.5°	approx. 5.0°	approx. 4.5°
Light Spot Size	approx. 440mm@7m	40mm@400mm	approx. 200mm@2.5m
Setting	sensitivity trimmer
Output Voltage	High: PNP: Vs - (≤1.5V); NPN is approx. Vs; Low: PNP is approx. 0V; NPN is ≤1.5V
Output Current Max.	100mA max., short-circuit protected and over current protected, Vs reverse polarity protected
Response Time	<15 ms	<2 ms	<0.7 ms
Switching Frequency	33 Hz	250 Hz	700 Hz
Connection	M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle)
Mechanical Protection	IP67 / NEMA 6
Housing Material	Stainless Steel / Glass fiber reinforced plastic
Operating Temp.	-25 ~ +55°C (-13 ~ +131°F)
Storage Temp.	-40 ~ +70°C (-40 ~ +158°F)
Reference Standard	EN 60947-5-2
