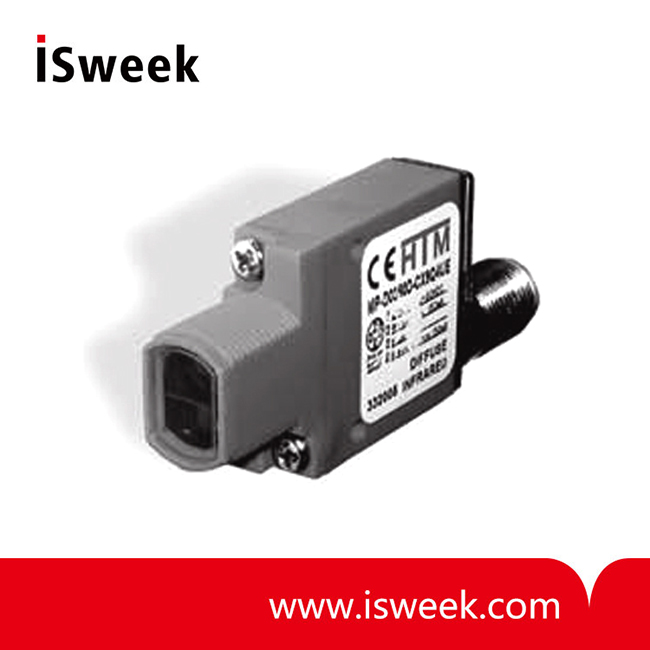

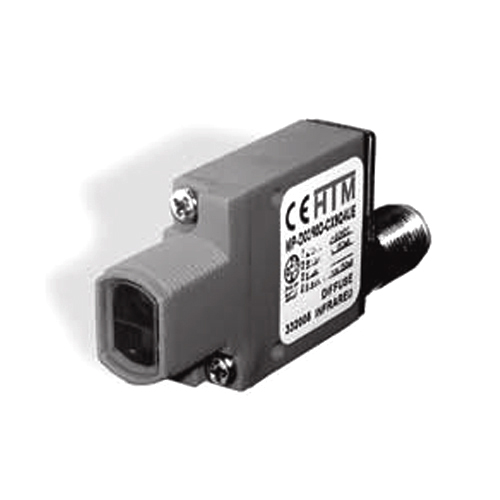

Universal Mount Photoelectric Sensor - MP Series

? Through Beam: 30m
? Retroreflective: 5m
? Long Range - Up to 30m
? Power Supply: 10 to 30 VDC, 20 to 250 VAC
? Current Consumption: 25mA max.
? Mechanical Protection: IP67 (IEC)
? Environment: -20°C to +70°C; Max. 90% RH @ 50°C

Model Number: MP Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MP Series Universal Mount Photoelectric Sensor Description
? Mounts on Standard or Flat Bracket
? Long Range - Up to 30m
? Several Detection Modes
? Compact Size

Modes	Ranges
Through Beam	30m
Retroreflective	5m
Diffuse	380mm
Convergent	43mm
Fiber Optic Mode - (range depends on fiber used)

MP Series Universal Mount Photoelectric Sensor Part Numbers

DC Models - Quick Connect
Mode	Through-beam (30m range)	Retroreflective	Diffuse	Convergent
Light Emission	Infrared LED, 880nm	Red LED, 650nm	Infrared LED, 880nm	Red LED, 650nm
Operating Range	30m (98.4 ft.)	5m (16.4 ft.)	380mm (14.96 in.)	43mm (1.69 in.)
Part Numbers
Emitter	MP-T030MD-EX9Q4LE
NPN / PNP	MP-T030MD-CX9Q4UE	MP-L5000D-CX6Q4UE	MP-D0380D-CX9Q4UE	MP-C0043D-CX6Q4UE

Mode	Through-beam (3m range)	Retroreflective (Polarized)	Fiber Optic (Diffuse)	Fiber Optic (Through-beam)
Light Emission	Infrared LED, 880nm	Red LED, 650nm	Infrared LED, 880nm
Operating Range	3m (9.84 ft.)	2m (6.56 ft.)	Depends on fiber used (see pages 18-21 )
Part Numbers
Emitter	MP-T3000D-EX9Q4LE
NPN / PNP	MP-T3000D-CX9Q4UE	MP-L2000D-CX6Q4UE-PF	MP-DGFD-CX9Q4UE	MP-TGFD-CX9Q4UE

AC Models - Prewired
Mode	Through-beam (30m range)	Retroreflective	Diffuse	Convergent
Light Emission	Infrared LED, 880nm	Red LED, 650nm	Infrared LED, 880nm	Red LED, 650nm
Operating Range	30m (98.4 ft.)	5m (16.4 ft.)	380mm (14.96 in.)	43mm (1.69 in.)
Part Numbers
Emitter	MP-T030MA-EX9C2L2
SPST, Solid State	MP-T030MA-CX9C3U2	MP-L5000A-CX6C3U2	MP-D0380A-CX9C3U2	MP-C0043A-CX6C3U2

Mode	Through-beam (3m range)	Retroreflective (Polarized)	Fiber Optic (Diffuse)	Fiber Optic (Through-beam)
Light Emission	Infrared LED, 880nm	Red LED, 650nm	Infrared LED, 880nm
Operating Range	3m (9.84 ft.)	2m (6.56 ft.)	Depends on fiber used (see pages 18-21 )
Part Numbers
Emitter	MP-T3000A-EX9C2L2
SPST, Solid State	MP-T3000A-CX9C3U2	MP-L2000A-CX6C3U2-PF	MP-TGFA-CX9C3U2	MP-DGFA-CX9C3U2

MP Series Universal Mount Photoelectric Sensor Technical Data

	DC Models	AC Models
Power Supply	10 to 30 VDC	20 to 250 VAC
Current Consumption	25mA max.	25mA max. (1.7mA max. for emitter)
Output Configuration	Bipolar: One current sourcing (PNP) and one current sinking (NPN) open-collector transistor	SPST MOSFET solid-state relay with either N.O. or N.C. contact (light/dark operate selectable: 3-wire hook-up
Voltage Drop	<2.0V @ 150mA	<10V @ 200mA
Current Load Max	150mA	200mA
Response Time	1ms	8ms (4ms for Retroreflective Models)
Adjustments	LIGHT/DARK Operate sensitivity adjustment switch
Connection	M12 - Recomended Mating Cable: part # R-FS4TZ- V075 (straight), R-FA4TZ-V075 (right-angle	2 meter cable
Electrical Protection	Short-circuit, Reverse Polarity and Overload Current Protection	-
Mechanical Protection	IP67 (IEC)
Housing Material	Reinforced thermoplastic polyester housing, totally encapsulated o-ring sealing, acrylic lenses and stainless steel screws
Environment	-20°C to +70°C (-4°F to 158°F) ; Max. 90% RH @ 50°C
Reference Standard	IEC 60947-5-2
