Two-Color Non-Contact Infrared Pyrometers - PSC-SR54NL/PSC-SR54NV

? Temperature Range: 500 to 3000°C
? Spectral Range: 0.8μm to 1.1μm
? Accuracy: 0.5% of Measured Value in °C
? Reproducibility: 0.1% of Measured Value in °C
? Transmissivity: 50% to 100%
? Power Consumption: Max. 1.5W
? Power Supply: 24 V DC ± 25%, Residual Ripple 500 mV
? Operating Temperature: 0° to 70°C (32° to 158°F)

Model Number: PSC-SR54NL/PSC-SR54NV
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PSC-SR54NL and PSC-SR54NV
2-Color Pyrometer Series For Industrial and R&D Applications

PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Description
Two-Color or Ratio Pyrometers measure temperatures from the ratio of radiation signals of two adjacent wavelengths as opposed to measuring the absolute intensity within one wavelength, as with one-color pyrometers. The advantages and benefi ts of using two-color sensors are the following:
? Automatic compensation for viewing though dirty windows, dust and partial smoke between sensor and target.
? Compensation for changes in target emissivity i.e. gray bodies — targets with the same emissivity on both wavelengths.
? Measures smaller target than sensor’s fi eld of view (FOV/Spot Size) i.e. measures weighted peak temperature within FOV.
? Unaffected by moving targets within FOV.

PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Features
? High Accuracy/Repeatability with Self-Contained Stand Alone Operation
? Wide Temperature Ranges from 500° to 3000°C (932° to 5432°F)

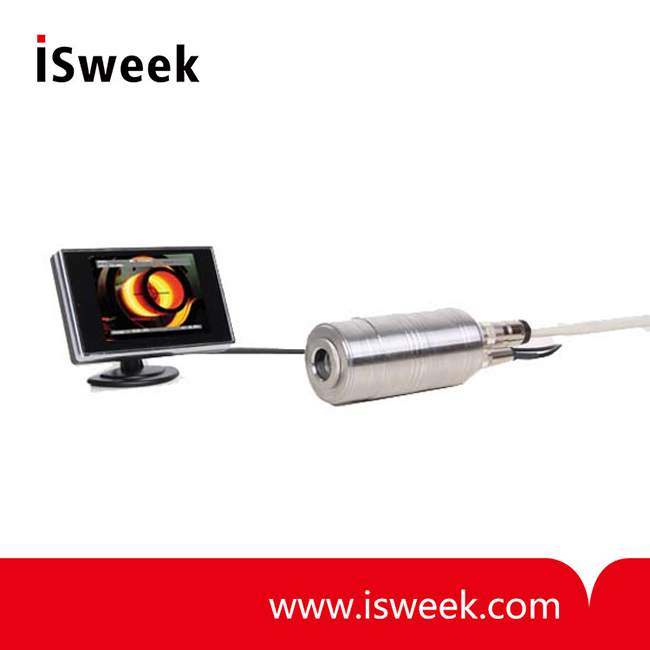

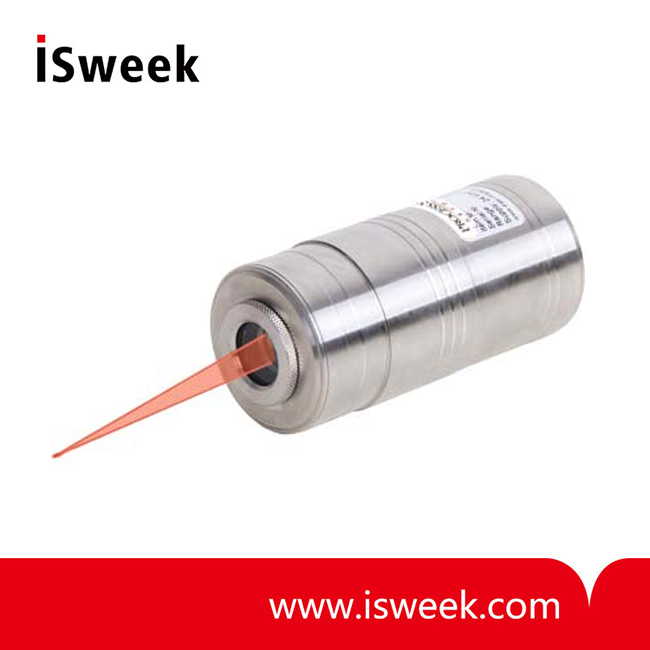

? Integrated Red Laser or Video Camera Sighting
? High Resolution Optics Up to FOV 200:1
? Fixed Focus Optics
? Fast Response Time – 5 milliseconds, adjustable
? Simultaneous Analog and Digital Outputs
? 4-20mA and Digital RS-485 Communications
? Durable, Compact Stainless-Steel Housing
? Innovative, Rugged Design Accessories

PSC-SR54NL/PSC-SR54NV Non-Contact Infrared Pyrometers Applications
? Induction Heating
? Steel Industry
? Heat Treating of Metals
? Kilns
? Vacuum Furnaces
? Welding
? Composites
? Sintering
? Nuclear
? Research and Development

Specifications PSC-SR54NL and PSC-SR54NV Non-Contact Infrared Pyrometers

Temperature Range	500° to 1200°C	600° to 1400°C	700° to 1800°C	800° to 2500°C	900° to 3000°C
	932° to 2192°F	1112° to 2552°F	1292° to 3272°F	1472° to 4532°F	1652° to 5432°F
Sub Temperature Range	Adjustable Within Overall Temperature Range, Minimum Span 50°C (122°F)
Field of View Ratio	50:1	100:1	200:1	200:1	200:1
Accuracy	0.5% of Measured Value in °C
Reproducibility	0.1% of Measured Value in °C
Aiming	PSC-SR54N: Laser, 630…680 nm, Class II, <1 mW PSC-SR54NV: Video Camera, Composite Video Signal NTSC (M), 60Hz or PAL (B), 50Hz
Choice of Optics Types	650mm, 2000mm, 4000mm
Spectral Range	0.8μm to 1.1μm
Ratio Correction K	0.800 to 1.200
Emissivity	0.050 to 1.000
Response Time (t95)	5 ms (min.) Adjustable up to 100 seconds
NETD	0.1K
Transmissivity	50% to 100%
Output	0/4 mA to 20 mA, Linear, Max. Load 500 Ω (Galvanically Isolated)
Interface	RS-485 (Galvanically Isolated), Half Duplex, Max. 115 kBd, Modbus RTU
Switching Output/Threshold	1 Opto Relay, R Load Min. 48Ω (Galvanically Isolated) Adjustable Within Temperature Range
Parameters	Adjustable Via Interface and Software, or at Device using handheld programmer: Ratio Correction, Emissivity, Transmissivity, Response Time, Data Storage Settings, Sub Range of Measurement Output, Switching Thresholds of Switching Output
Power Supply	24 V DC ± 25%, Residual Ripple 500 mV
Power Consumption	Max. 1.5W (Without Load at Switching Output)
Operating Temperature	0° to 70°C (32° to 158°F)
Storage Temperature	-20° to 70°C (-4° to 158°F)
Weight	600 grams (1 lb. 5.16 oz.)

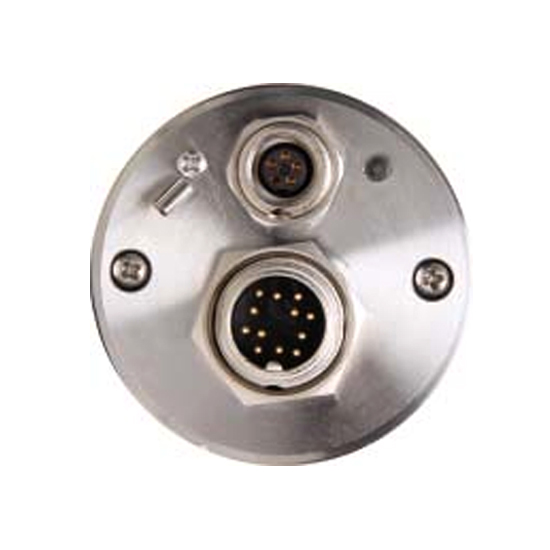

Housing	Stainless Steel Cylindrical Housing with Plug Connector 4.1” (105 mm)L x 2” (50mm) OD
Safety Class	IP65 According to DIN EN 60529 and DIN 40050
Test Regulation	EN 55 011: 1998, Limit Class A
CE Symbol	According to EU Regulations
Standard Equipment	PSC-SR54N/PSC-SR54NV, Operation Manual, Inspection Sheet. No-cost PSCSpot Software is included with the purchase of an optional RS485 to USB adapter and connection cable that must be ordered separately
