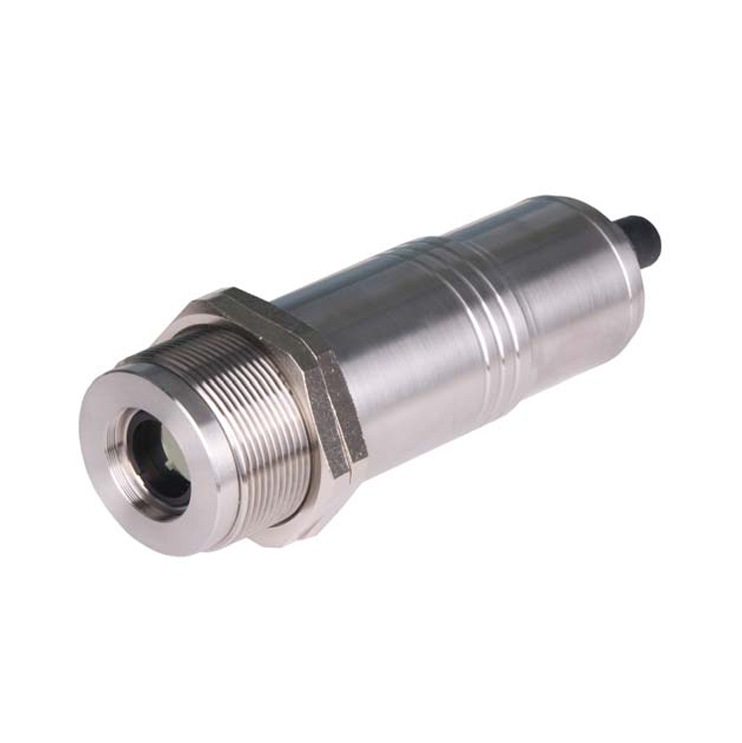

Self-Contained Pyrometers for Industrial Applications - PSC-42 Series

? 2-wire, loop powered (simple installation)
? On-board emissivity adjustment
? Selection of wavelength and temperature ranges
? Temperature ranges: -40°F (-40°C) to 4532°F (2500°C)
? Variety of fixed focus optics
? Stainless steel housing
? IP65 Rating

Model Number: PSC-42 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PSC Model 42 Series
Self-Contained Pyrometers for Industrial Applications

PSC-42 Series Self-Contained Pyrometers Description
Outstanding value and long term reliability

Boasting temperature ranges from -40°C (-4°F) to 2500°C (4532°F), the PSC-40 Series of 2-wire loop powered pyrometers offer high quality performance, outstanding value and long term reliability. A variety of fixed focus optics are available, and users may choose an optional or integrated laser aiming light to determine exact alignment to the measured target. PSC-42 series Reliable Non-Contact Temperature Sensor

The PSC-42 Series provides accurate and reliable temperature measurement for a wide range of applications.

Easily integrated into existing measurement and control systems with a linear 4 to 20 mA output signal, the PSC Model 42 infrared thermometer series provide a fast response time, small spot size, on-board emissivity adjustment and laser sighting (High temperature models). For use in harsh industrial environments, the rugged protective cooling jackets and air purge assemblies are rated for ambient temperatures up to 392°F (200°C), with a full range of electrical, mechanical and optical accessories available.

PSC-42 Series Self-Contained Pyrometers Features
? 2-wire, loop powered (simple installation)
? On-board emissivity adjustment
? Selection of wavelength and temperature ranges
? Temperature ranges from -40°F (-40°C) to 4532°F (2500°C)
? Variety of fixed focus optics
? Integrated or optional battery operated laser aiming light
? Stainless steel housing
? Protective cooling/air purge assemblies for harsh industrial applications
? IP65 Rating
? Factory preset temperature range to customer specification available within overall range

PSC-42 Series Self-Contained Pyrometers Typical Applications
PSC-T42L
? Non-metals, coated metals
? Paper and packaging
? Building materials
? Food industry
? Plastics
PSC-T42G
? Glass industry
? Flat glass
? Glass bottle manufacture
? Liquid glass
? Glass forms
PSC-S42N and PSC-G42N
? Steelmaking
? Glass
? Ceramics
? Furnace
? Metal industry

PSC-42 Series Self-Contained Pyrometers Technical Specifications

Model	PSC-T42L	PSC-T42G	PSC-S42N	PSC-G42N
Temperature Range	-40°C to 1000°C (-40°F to 1832°F)	100°C to 1300°C (212°F to 2372°F) 500°C to 2500°C (932°F to 4532°F)	600°C to 1800°C 1112°F to 3272°F) 800°C to 2500°C (1472°F to 4532°F)	250°C to 1300°C (482°F to 2372°F) 350°C to 1800°C (662°F to 3272°F)
Spectral Range	8 μm to 14 μm	5 μm	0.8 μm to 1.1 μm	1.5 μm to 1.8 μm
Sub Temperature Range	Adjustable Within Temperature Range, Minimum Span 50°C (122°F)
Fixed Optics (See Table page 3)	300, 2000	300, 800	210, 290, 650, 4000	210, 290, 650, 4000
Measurement Accuracy	1 % Of Measured Value In °C		0.5 % Of Measured Value In °C
Repeatability	0.5 % Of Measured Value °C		0.1 % Of Measured Value In °C
NETD	< 0.1 C		< 0.1 C
Response Time (t95)	100 ms, Optional Adjustable Up to 100s (Factory-Provided)		10 ms, Optional Adjustable Up to 100s (Factory-Provided)
Emissivity	0.20 to 1.00, Adjustable (Factory Setting: 1.00)		0.05 to 1.00, Adjustable (Factory Setting: 1.00)
Output	4 to 20 mA, Temperature Linear, Max. Load: 500 Ohms At 24 V
Aiming	Laser Aiming Light (Optional)		Integrated Laser Aiming Light
Power Supply	24 VDC ± 25 %, Residual Ripple 500 mV, Laser Aiming Light: 7 V to 30 VDC, < 200 mW
Power Consumption	Max. 0.6 W (Without Aiming Light)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Weight	Appr. 450 G (15.87 oz)
Dimensions	Length 4.92in (125mm), Thread M40x1.5
Housing	Stainless Steel with Plug Connector
Safety Class	IP 65 (According to DIN En 60529 and DIN 40050)
CE Symbol	According To Eu Regulations
Standard Equipment	PSC Model 42 Series Sensor, Manual, Inspection Sheet, Two Mounting Screw Nuts, Connecting Cable 5 M, 5 Pin. More Cable Lengths Available.
