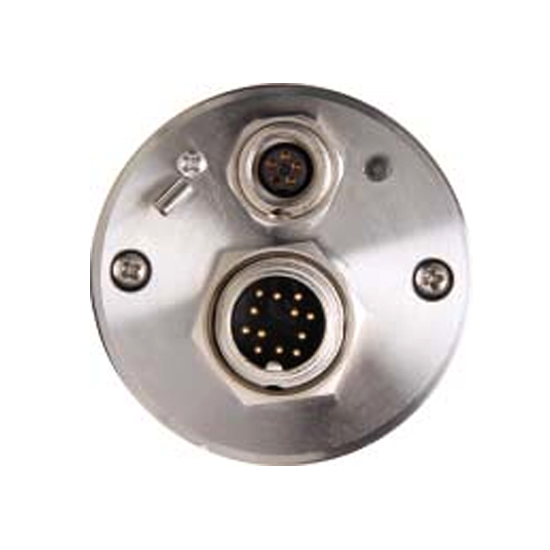

One-Color Non-Contact Infrared Pyrometers - PSC-G54NL/NV PSC-S54NL/NV

? Temperature Range
PSC-G54NL / NV: 200 to 2500°C
PSC-S54NL / NV: 550 to 3000°C
? Spectral Range:
PSC-G54NL / NV: 1.5μm to 1.8μm
PSC-S54NL / NV: 0.8μm to 1.1μm
? Accuracy: 0.5% of Measured Value in °C
? Reproducibility: 0.1% of Measured Value in °C
? Transmissivity: 50% to 100%
? Power Supply: 24 V DC ± 25%, Residual Ripple 500 mV

Model Number: PSC-G54NL/NV PSC-S54NL/NV
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PSC-G54NL/NV and PSC-S54NL/NV
1-Color Pyrometer Series

PSC-G54NL/NV?and?PSC-S54NL/NV?Non-Contact Infrared Pyrometers?Description
The Stand Alone PSC-G54NL/NV and PSC-S54NL/NV One-Color Pyrometer Series provide pinpoint accuracy over an incredibly wide temperature range with customizable options. Choose from integrated laser aiming light or real-time color video camera sighting, ten distinct temperature ranges and four high-resolution, fixed focus optics.

These compact digital sensors are specifi cally designed for accuracy and reliability in harsh industrial and demanding laboratory applications. The PSC-G54N and S54N Series' 0/4 to 20mA output allows easy integration to existing measurement and control systems. RS-485 interface capability facilitates connection to a PC to allow all parameter settings to be set and adjusted using the PSCSpot software and optional RS-485 to USB connector.

PSC-G54NL/NV?and?PSC-S54NL/NV?Non-Contact Infrared Pyrometers?Features
? Compact, Self-Contained with Rugged Stainless Steel Housing
? Laser or Integrated Color Video Camera Sighting
? 10 Temperature Ranges Spanning from 200° to 3000°C
? Analog 4-20mA and Digital RS-485 Interface
? Choice of 4 Fixed Focus, High Resolution Optics
? Fast Response Time from 2ms, Adjustable up to 100 seconds
? Small Spot Size with Fixed Focus Optics
? Connect to PC to Adjust Parameters with PSCSpot Software
? RS-485 Modbus Interface Integration into Existing Data Acquisition Systems
? Robust Hardware Designed for Harsh Industrial Continuous Operations

PSC-G54NL/NV?and?PSC-S54NL/NV?Non-Contact Infrared Pyrometers?Applications
? Steel and Metals
? Induction Heating
? Ceramics/Composites
? Soldering
? Sintering/Graphite
? Welding
? Semiconductor
? Kilns
? Vacuum Furnace
? R & D

Specifications PSC-G54NL/NV and PSC-S54NL/NV?Non-Contact Infrared Pyrometers

Temperature Range PSC-G54NL / NV	200° to 1200°C	200° to 2000°C	250° to 1500°C	350° to 2000°C	250° to 2500°C
	392° to 2192°F	392° to 3632°F	482° to 2732°F	662° to 3632°F	482° to 2732°F
Temperature Range PSC-S54NL / NV	550° to 1500°C	600° to 1800°C	800° to 2500°C	900° to 3000°C	600° to 3000°C
	1022° to 2732°F	1112° to 3272°F	1472° to 4532°F	1652° to 5432°F	1112° to 5432°F
Sub Temperature Range	Adjustable Within Overall Temperature Range, Minimum Span 50°C (122°F)
Field of View Ratio	200:1	200:1	200:1	200:1	200:1
Accuracy	0.5% of Measured Value in °C
Reproducibility	0.1% of Measured Value in °C
Method of Aiming	PSC-G54NL and PSC-S54NL: Laser Aiming Light, 630…680 nm, Class II, <1 mW PSC-G54NV and PSC-S54NV: Video Camera, Composite Video Signal NTSC (M), 60Hz or PAL (B), 50Hz
Choice of Optics Types	250mm, 650mm, 2000mm, 4000mm - Refer to FOV Diagrams
Spectral Range	PSC-G54NL / NV 1.5μm to 1.8μm PSC-S54NL / NV 0.8μm to 1.1μm
Emissivity ε	0.050 to 1.00
Response Time (t95)	2ms Adjustable up to 100 seconds
NETD	0.1K
Transmissivity	50% to 100%
Output	0/4 mA to 20 mA, Temperature Linear, Max. Load 500 Ω (Galvanically Isolated)
Interface	RS-485 (Galvanically Isolated), Half Duplex, Max. 115 kBd, Modbus RTU
Alarm Output	1 Opto Relay, R Load Min. 48Ω (Galvanically Isolated) Adjustable Within Temperature Range
Parameters	Adjustable Via Interface and Software, or at Device: Emissivity, Transmissivity, Ambient? Radiation, Response Time, Data Storage Settings, Sub Range of Measurement Output,? Switching Thresholds of Switching Output
Power Supply	24 V DC ± 25%, Residual Ripple 500 mV
Power Consumption	Max. 1.5W (Without Load at Switching Output)
Operating Temperature	0° to 70°C (32° to 158°F)
Storage Temperature	-20° to 70°C (-4° to 158°F)
Weight	Approx. 600 grams (1 lb. 5.16 oz.)
Housing	Stainless Steel Cylindrical Housing w/Plug Connector Approx. 105mm, ? 50mm
Safety Class	IP65 According to DIN EN 60529 and DIN 40050
Test Regulation	EN 55 011: 1998, Limit Class A
CE Symbol	According to EU Regulations
Standard Equipment	PSC-G54NL/NV or PSC-S54NL/NV, Operation Manual, Inspection Sheet, PSC Spot Software,? Without Connection Cable (Must be ordered separately)
