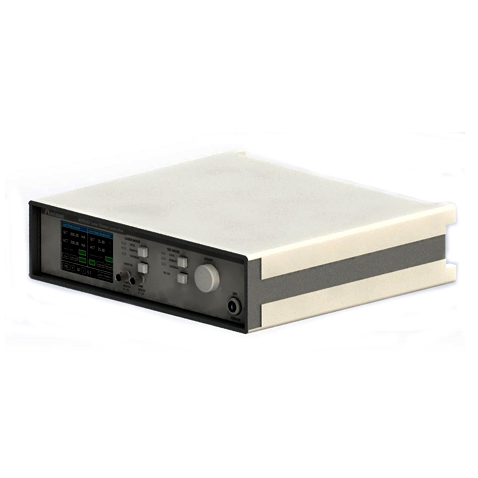

Temperature Controller and Laser Diode Driver - AD5005

? Input Voltage: 220V AC 45~65Hz
? Power requirements (max): <50 W
? Operating Temperature: 10 to 40oC
? Current noise: <75μA
? Current Stability: <50ppm(Constant Current Mode)
? Power Stability: <0.02%(Constant Power Mode)
? Analog modulation capbility: up to 500 KHz
? Temperature controlling power: up to 50W
? Temperature Stability: <0.005°C

Model Number: AD5005
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

AD5005 Temperature Controller and Laser Diode Driver GENERAL DESCRIPTION
The AD5005 is a high precision laser diode and temperature controller series coming in several models to work with all low power laser diodes. Based on its low noise current driver and high efficient temperature controller, it best fits your applications with high performance.

The laser current driver feeds high stable current with noise below75μA and incorporates all essential protection strategies to laser diode. The driver offers excellent current stability in constant current mode or power stability in constant power mode.Furthurmore,it supports external modulation of sinewave with small signal 3dB bandwidth from DC to 500KHz

The temperature controller is built based on reliable and precise circuitry. It is ideal for high performance applications like wavelength locking. By the help of adjustable Proportional Gain(P) and Integrator Time Constant(I) ,it achieves temperature stability better than 0.005°C.Any type of temperature sensors are compatible with AD5005.

AD5005 supports local and remote operation. By a USB2.0 interface, users can operate it via PC conveniently.

AD5005 Temperature Controller and Laser Diode Driver Features and Benefits
? Current/Temperature Controlling Combination
? USB2.0 remote interface
? Operating in constant power or constant current modes
? Current noise <75μA
? Current Stability <50ppm(Constant Current Mode)
? Power Stability <0.02%(Constant Power Mode)
? Analog modulation capbility up to 500 KHz
? Temperature controlling power up to 50W
? Temperature Stability <0.005°C
? Compatible with thermistor, IC, RTD sensors

AD5005 Temperature Controller and Laser Diode Driver General Specification

Input Voltage	220V AC 45~65Hz
Power requirements (max)	<50 W
Output Current (TEC/LD) (max)	±5A / 500mA
Operating Temperature	10 to 40oC
Storage Temperature	0 to 60oC
Temperature Stability℃	<0.005oC (short term); <0.008oC (long term)
Temperature Control Ranges	-45oC ~ +145oC (AD590); -55oC ~ +114oC (NTC)
Current/Power Stability	<50ppm / <0.02%
Sensor	NTC /PT/AD590/LM335
User Interface	DB9 analog and USB
Software	With software for PC control
19-inch standard rack kits were supported

AD5005 Temperature Controller and Laser Diode Driver Electrical and Operating Specifications

Laser Diode Driver		Temperature Controller
Output Current	500 mA max	Output Current	±5 A max
Operating Temperature	10 to +40?C
Storage Temperature	0 to +60?C
Constant Current Control		Temperature Control
Constant Current	0 ~ 500 mA	Stability¹	<0.005?C (short term)
Stability	<50 ppm	Stability¹	<0.008?C (long term)
Noise and Ripple (rms)²	< 75μAμA	P (Proportional Gain)	~ 20 A/V
Current Limit Range	0 ~ 500 mA	I (Integrator Time Constant)	0.53 ~ 4.5 Sec
Constant Power Control	Current Limit Range	PI Control	Manual
Photodiode Range	15~2500μA	Compliance Voltage	±3.4 V @ 2A
Power Stability	< 0.02%	Sensors
Modulation	Resistive Sensor Type
Depth of Modulation (100 KHz Sinewave)	99%
Constant Current Bandwidth³	500 KHz	Sensor Bias Current Range	2μA ~ 1 mA
Input Impedance	5 kΩ	Input Impedance	1 MΩ
Constant Power Bandwidth	Depends on PD	IC Sensor Types	AD590, LM335, Thermistors, RTDs
Mod Input Safe Range	0 ~ 2V	Mod Input Safe Range	0 ~ 3.3V
