Wide Temperature Laser Methane Sensor - Advanced Series - AG-6-CH4-2842-100

? Strong anti-interference
? High detection accuracy
? High environmental adaptation
? Strong structural protection
? Long life ≥ 10 years
? Calibration-free
? Wide temperature use

Model Number: AG-6-CH4-2842-100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Wide Temperature Laser Methane Sensor - Advanced Series -AG-6-CH4-2842-100 Product Description：

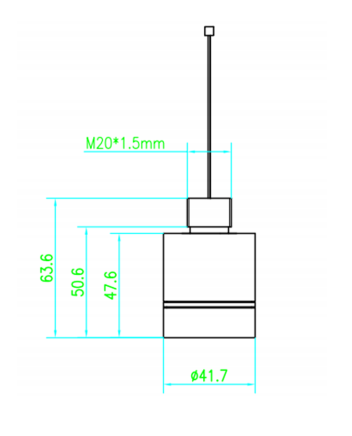

AG-6-CH4-2842-100 methane sensor adopts self-developed laser and photodetector core devices, combined with a stable temperature control algorithm, concentration inversion algorithm, and temperature compensation algorithm to achieve accurate measurement of methane concentration; the product is based on the Tunable Laser Absorption Spectroscopy (TD-LAS), the internal design of the multiple reflective optical path structure, absorption of the light range is long, and the detection sensitivity is high; Standard threaded mounting interface and stainless steel structure design to meet the requirements of explosion-proof, convenient for customers to quickly product integration, can be widely used in underground space, catering industry, industrial chemical industry and coal mining and other fields.

Wide Temperature Laser Methane Sensor - Advanced Series -AG-6-CH4-2842-100 Technical Specification：

Measuring Range	0-100% VOL (CH4)
Response Time(T90)	< 15s
Measurement Error	< ±0.06VOL (0-1% VOL) < ±6% VOL (1-20% VOL)
Lower Detection Limit	0.15% VOL
Operating Voltage	3.0VDC to 3.6VDC
Operating Current (Average)	< 30mA
Peak Current	< 160mA
Output Type	3.3V TTL level UART
Temperature Range	-40 - 70°C (Operating) -40 - 60°C (Storage)
Humidity Range	0-99%RH (noncondensing)
Weight	255g
Expected Life	10 years
Warranty	18 months
Explosion Proof Signs	Ex ia lIC T6 Ga
IP Rating	IP 66

IMPORTANT NOTICE

The sensors contain precision optical components, please avoid severe impact. The operating voltage of the sensor is 3.3V. It is forbidden to supply more than 3.6VDC to the sensor in order to avoid damaging the sensor. Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for a sensor determined to be defective by Apollosense Ltd is limited to replacing the sensor. Apollosense Ltd will not be liable for the buyer's negligence, misapplication, abuse, or accident.
