1.5-5μm PbSe Large Area Power Detectors - ET-6000
? Detector Type: Photoconductor
? 2x and 100x gain select
? Power Supply: 24VDC
? Active Area: 5mm x 5mm
? Maximum Output: ±11V
? Maximum Input Power: 0.6mW/mm2
? Operating Tempermature: 10 - 40 °C
? Output Connector: BNC
- Model Number: ET-6000
- Data Sheet:
- Quantity:
- - +
Product Specification

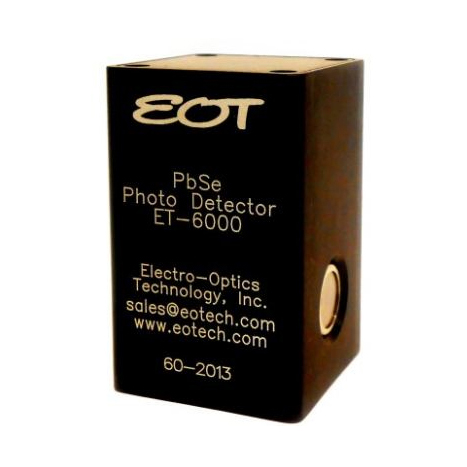

ET-6000 1.5-5μm PbSe Large Area Power Detectors
The 1.5-5μm PbSe Large Area Power Detectors can be used to measure power from 1.5μm to 5.0μm, has a selectable gain of either 2X or 100X, and an active area of 5mm x 5mm making alignment easy. Based on a photoconductor, this detector responds more quickly and reaches a stable state more quickly than a thermopile detector.
ET-6000 Power Detectors Applications:
* Power detection of QXLs
* Power detection of DFBs
ET-6000 Power Detectors Features:
* 2x and 100x gain select
* PbSe photoconductor responds more quickly and reaches a stable state more quickly than a thermopile detector

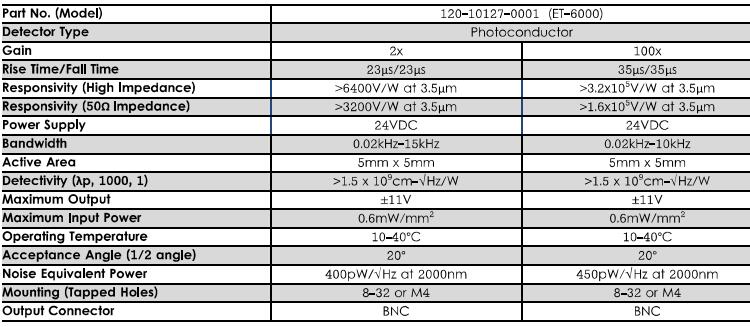

ET-6000 Power Detectors Specifications:
