Product Specification

Near-IR DFB Lasers

NORCADA designs and manufactures single mode semiconductor distributed feedback (DFB) lasers for industrial sensing and environmental monitoring applications. Our DFB lasers come with two main styles of hermetic packaging configurations designed for excellent temperature stability and wavelength tuning.

Near-IR DFB Lasers Product Features
? Integrated DFB grating provides single frequency operation
? Frequency tuning can be accomplished by adjusting either laser drive current or temperature.
? Tuning range up to 6 nm without mode hopping
? Temperature tuning control: 0.1 nm / ℃
? Drive current tuning control: 0.04 nm / mA
? output powere: 10-20 mW
? Narrow linewidth <2 MHz

Near-IR DFB Lasers Packaging Options

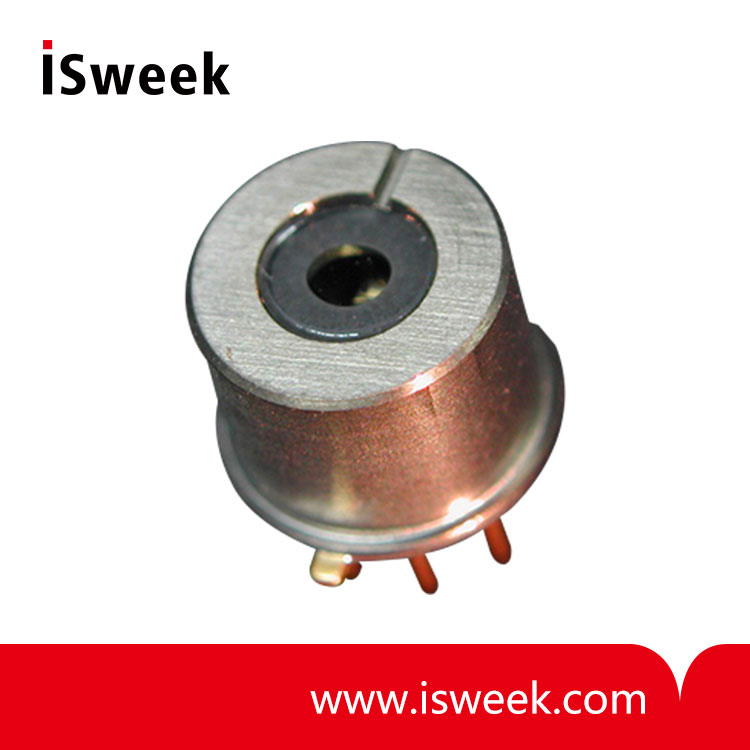

? TO-39 package
? window with 7°slope
? Hermetically sealed
? Integrated thermoelectric cooler (TEC)
? Mounted lens for collimation
? Butierfly package with fibre coupled output

Near-IR DFB Lasers Applications
? Molecular spectroscopy
? Industrial gas sensing (TDLAS)
? Environmental monitoring

Near-IR DFB Lasers Available Wavelengths
1300nm-1670nm

Typical wavelengths for trace gas sensing applications
