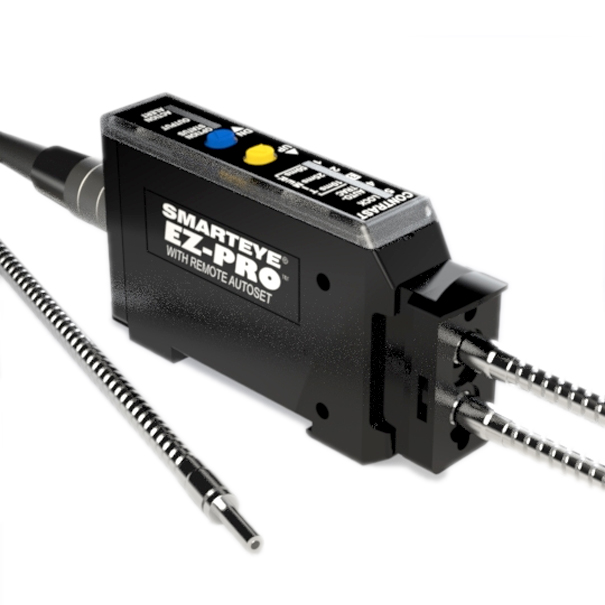

SMARTEYE EZ-PRO Digital Photoelectric Multi-mode Sensor - EZP Series

? Supply Voltage: 10 to 30 VDC
? Current Requirements: 45mA (exclusive of load)?
? Light/Dark state response = 300 microseconds?
? Ambient Temperature: -40°C to 70°C (-40°F to 158°F)?
? Waterproof ratings: NEMA 4X, 6P and IP67
? Three pulse stretchers; 10ms, 25ms, and 50ms

Model Number: EZP Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SMARTEYE EZ-PRO Digital Photoelectric Multi-mode Sensor Description
The SMARTEYE^? EZ-PRO? is a high performance, digital photoelectric multi-mode sensor that can be set-up by a single push of a button. There is no guess work on the part of the operator. From that point on, the sensor will automatically maintain a perfect setting, thanks to the dynamic Automatic Contrast Tracking System (ACT). The EZ-PRO? AUTOSET routine can also be implemented from a momentary remote switch (i.e. push button or touch screen). The EZ-PRO? is equipped with a Contrast Indicator as well as an Action Alert diagnostic indicator that allows the operator to visually substantiate performance. When the lock feature is enabled (see advanced features), the EZ-PRO? sensor is tamper-proof. Now, the sensor will provide you with the automatic, hassle-free performance that you expect from a SMARTEYE^?. It can either be side mounted or Din rail mounted. Epoxy encapsulated, it is ultra rugged and vibration proof.

SMARTEYE EZ-PRO Digital Photoelectric Sensor Features and Options
? AUTOSET, one button push setup
? Remote AUTOSET
? ACT, Automatic Contrast Tracking
? Action Alert indicator
? Three pulse stretchers; 10ms, 25ms, and 50ms
? 5-LED Contrast Indicator
? Cable or quick disconnect
? Interchangeable optical blocks
? Button lock out
? Light On/Dark On automatic select
? NPN and PNP output

SMARTEYE EZ-PRO Digital Photoelectric Sensor Benefits
? Easy to use
? Reduces downtime
? Robust design
? High reliability
? Lower inventory costs
? Tamperproof

SMARTEYE EZ-PRO Digital Photoelectric Sensor Applications
? Labeling
? Precision Triggering
? Shiny Objects

SMARTEYE EZ-PRO Digital Photoelectric Sensor Specifications

SUPPLY VOLTAGE	? 10 to 30 VDC ? Polarity Protected
CURRENT REQUIREMENTS	? 45mA (exclusive of load)
OUTPUT TRANSISTORS	? (1) NPN and (1) PNP sensor output transistor ? Sensor outputs can sink or source up to 150mA (current limited) ? All outputs are continuously short circuit protected
REMOTE AUTOSET INPUT	? Opto isolated sinking input (10mA)
RESPONSE TIME	? Light/Dark state response = 300 microseconds
LED LIGHT SOURCE	? Infrared = 880nm, Red = 660nm, Blue = 480nm, White = Broadband Color Spectrum ? Pulse modulated
PUSHBUTTON CONTROL	? Yellow/Blue - AUTOSET ? Manual Adjustments ? Set status of three options: 5) Lock, 4) Auto-Trac, 3) Timers: 10ms, 25ms, 50ms
HYSTERESIS	? "Factory-set" for high resolution - less than one bar on the Contrast Indicator
LIGHT IMMUNITY	? Responds to sensor’s pulsed modulated light source, resulting in high immunity to most ambient light, including indirect sunlight or strobes
DIAGNOSTIC INDICATORS	? 5-LED bar graph functions in one of two modes: 1. Contrast Indicator – displays scaled reading of sensor’s response to contrasting light levels (light to dark) 2. Status Indicator – Displays status of 5 selectable options ? Red LED output indicator = Illuminates when the sensor’s output transistors are "on." NOTE: If Output LED flashes, a short circuit condition exists ? Amber LED = Illuminates when in the options select mode ? Yellow LED = Illuminates when action alert is activated. Also indicates when ACT adjusts sensor
AMBIENT TEMPERATURE	? -40°C to 70°C (-40°F to 158°F)
RUGGED CONSTRUCTION	? Chemical resistant, high impact polycarbonate housing ? Waterproof ratings: NEMA 4X, 6P and IP67 ? Conforms to heavy industry grade CE requirements

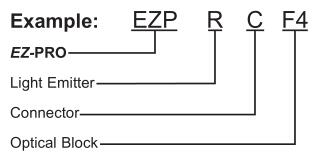

SMARTEYE EZ-PRO Digital Photoelectric Sensor How To Specify
1. Select Sensor light source required:
I = Infrared
R = Red
B = Blue
WL = White
2. Select Connector required:
Blank = Cable 6 ft. (1.8m)
C = Connector
3. Select Optical Block based on mode of operation required.
