Plastic Laboratory pH Electrodes - pH1000/pH2000/pH3000

? Diameter: 12mm
? Length: 150mm
? pH Range: 0 - 14 (Na + error at 12.3 < pH)
? Response:
95% in 1 second (bulb glass shape)
95% in 5 seconds (flat glass shape)
90% < in 5-7 seconds (spear glass shape)
? Isopotential Point: 7.00 pH (0 mV)
? Offset: ± 0.20 pH
? Span: 97% of theoretical or higher

Model Number: pH1000/pH2000/pH3000
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

pH1000/pH2000/pH3000 Series Plastic Laboratory pH Electrodes Features
? Choose basic, advanced, or premium options based on your application
? Virtually unbreakable with durable polycarbonate or Ultem? bodies
? Compatible with any meter accepting a BNC
? Accurate and reliable measurements across full pH scale (0-14)
? Instantly ready for use: Extended shelf life (guaranteed for one year)
? One year limited warranty

pH1000/pH2000/pH3000 Series Plastic Laboratory pH Electrodes Description
The right sensor makes the difference.

Choosing a sensor that is well-suited for your application will improve measurement accuracy and extend sensor lifetime. Select from basic, advanced, and research grade pH sensors to find the option that meets your application needs.

pH1000 Series (Basic): The pH1000 polycarbonate pH sensor is easy to use and stands up to the usual wear and tear. This sensor performs reliably in environments such as swimming pools and hydroponics. New to the pH1000 series is model pH1600 for those who require a more chemically resistant body material.

pH2000 Series (Advanced): The pH2000 series of Ultem? pH sensors offers enhanced chemical compatibility. Great for testing samples with unknown composition, such as wastewater, these sensors feature double junction reference protection and operate at temperatures up to 80°C.

pH3000 Series (Research Grade): Our pH3000 series Ultem? pH electrodes are designed for maximum accuracy and sensor lifetime. These research grade probes stand up to aggressive chemicals and temperatures up to 100°C. The refillable design is excellent for precision measurements, even in low ionic samples.

pH1000/pH2000/pH3000 Series Plastic Laboratory pH Electrodes Specifications

Universal (All Plastic Laboratory pH Electrodes)
Diameter	12mm
Length	150mm
pH Range	0 - 14 (Na + error at 12.3 < pH)
Response	95% in 1 second (bulb glass shape) 95% in 5 seconds (flat glass shape) 90% < in 5-7 seconds (spear glass shape)
Isopotential Point	7.00 pH (0 mV)
Offset	± 0.20 pH
Span	97% of theoretical or higher

	pH1000 Series (Basic)	pH2000 Series (Advanced)	pH3000 Series (Research Grade)
Reference	Sealed	Sealed	Refillable
Junction Number	Single	Double	Double
Junction Material	Pellon	Pellon	Ground Epoxy and pHASE
Reference Solution	3.5 M KCl/AgCl (gel)	3.5 M KCl/AgCl/KNO 3 (gel)	3.5 M KCl (liquid)
Glass Shape	Bulb	Bulb	Bulb
Body Material	Polycarbonate, Ultem (pH1600 only)	Ultem?	Ultem?
Temperature Range	0-60 degrees C, 0-80 degrees C (pH1600 only)	0-80 degrees C	0-100 degrees C
Strain Relief	No	No	Yes
BNC Boot	No	Yes	Yes
Bulb Protection	Slots, teeth (pH1600 only)	Teeth	Removable Guard

Specialty
	pH2100	pH2200
Reference	Sealed	Sealed
Junction Number	Double	Double
Junction Material	HDPE and Pellon	Kynar and Pellon
Reference Solution	3.5 M KCl/AgCl/KNO3 (gel)	3.5 M KCl/AgCl/KNO 3 (gel)
Glass Shape	Flat	Spear
Body Material	Ultem?	Ultem?
Temperature Range	0-80 degrees C	0-80 degrees C
Strain Relief	No	No
BNC Boot	Yes	Yes

pH1000/pH2000/pH3000 Series Plastic Laboratory pH Electrodes Ordering Information

Part Number	Description

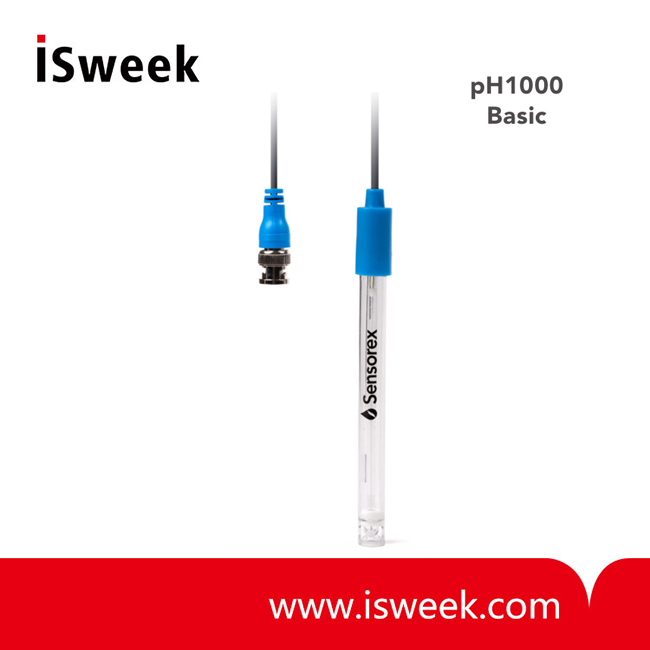

pH1000	Single junction, sealed polycarbonate pH electrode

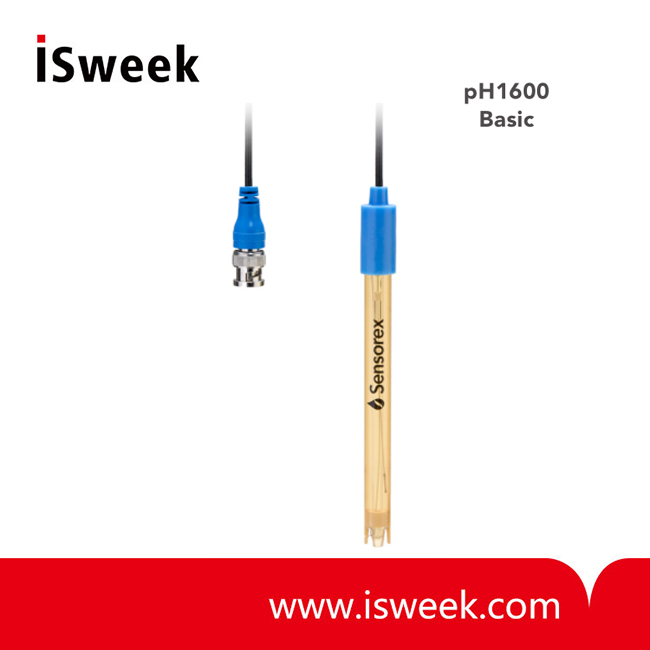

pH1600	Single junction, sealed Ultem? pH electrode

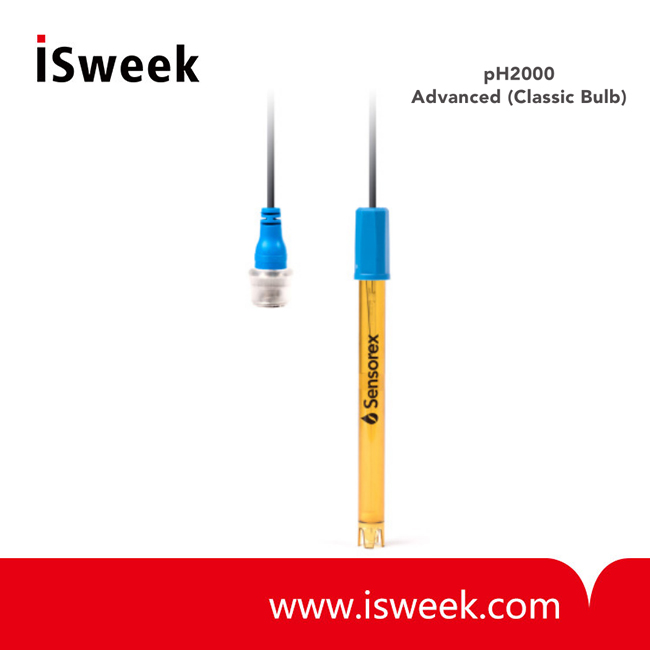

pH2000	Double junction, sealed Ultem? pH electrode

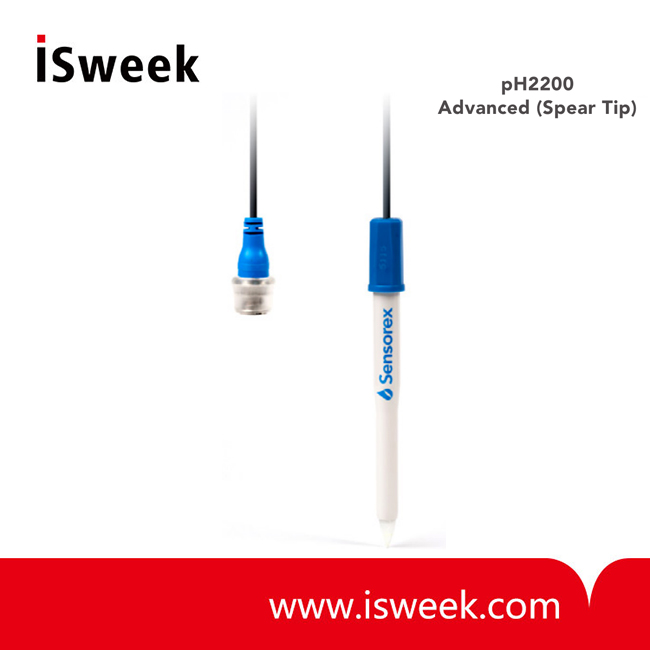

pH2200	Double junction, sealed Ultem? pH electrode with spear tip for food and soil applications

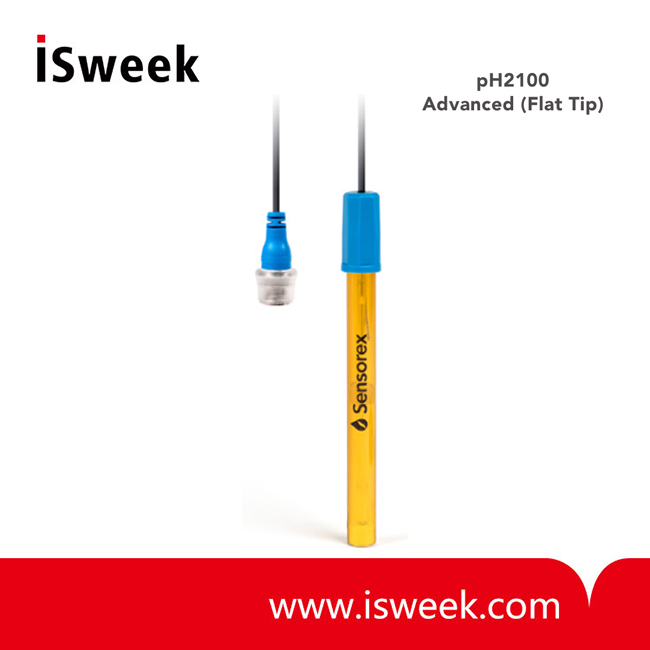

pH2100	Double junction, sealed Ultem? pH electrode with flat measurement surface for specialty applications

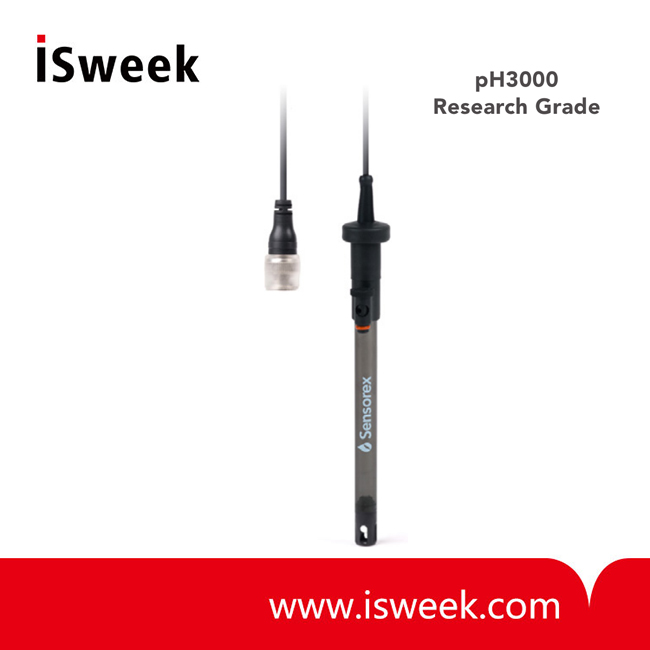

pH3000	High accuracy, research grade double junction refillable Ultem? pH electrode
