Insertion/Wet-tap Flat-Surface, Self-Cleaning pH and ORP Electrodes - S656CD

? Range:
0-14pH (0-12pH without na+ error)
+/- 2000mV for ORP
? ?Quick disconnect design saves time and money
? ?Installs in seconds, no tools necessary
? ?Flat-surface design resists coating
? ?CPVC or PVDF construction
? ?Available with or without ATC elements
? ?Protective tip reduces pH glass breakage (S656CD)

Model Number: S656CD
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

S600 Series Flat-Surface, Self-Cleaning pH and ORP Electrodes
Insertion/Wet-tap pH and ORP electrodes, assemblies and cables

Item No.:
S675, S676, S677, S675TC, S676TC, S677TC, S656CD,
S655CD-ORP, S656CD-ORP, S675K, S675TK, S655KD,
S655KD-HT, S655KD-ORP, S655KD-ORP-HT

S600 Series Insertion/Wet-tap pH and ORP Electrodes Features
? Quick disconnect design saves time and money
? Installs in seconds, no tools necessary
? Flat-surface design resists coating
? CPVC or PVDF construction
? Available with or without ATC elements
? Protective tip reduces pH glass breakage (S656CD)

S600 Series Insertion/Wet-tap pH and ORP Electrodes Description

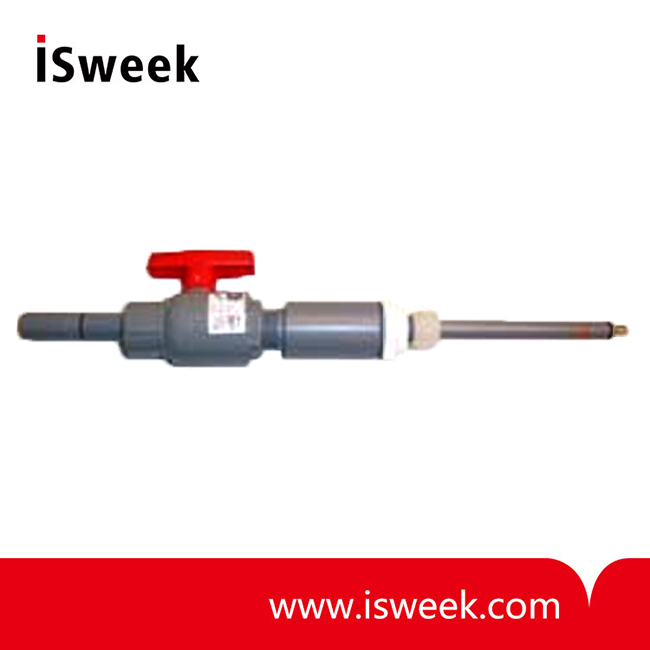

Without the need for system shutdown for electrode maintenance, the insertion assembly allows pH measurements to be made in pressurized tanks and main lines. The assembly’s adjustable insertion depth allows it to be placed in a turbulent flow region, enabling it to operate in the selfcleaning mode.

In abrasive applications, the electrode is best positioned flush with the pipe wall or tank wall. High suspended solids and viscous liquid pH measurements are simple with the insertion assembly and electrode pair. The specially designed internal makes the electrode mountable in virtually any direction, including inverted. a 1” full-port ball-valve (Sensorex BV-1) is recommended for installation.

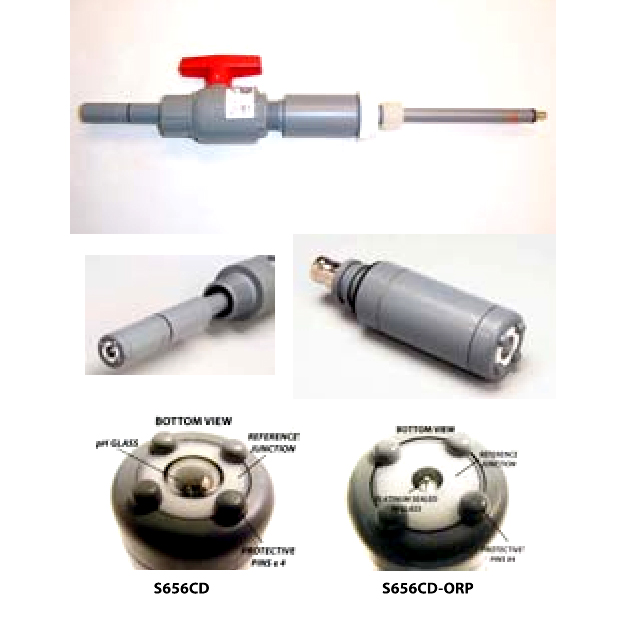

New part number S656CD has four protective pads to reduce pH glass breakage. The S656CD replaces the 970283 which is now obsolete. In addition to the protective pad feature, the S656CD also includes our high performance acrylamide gel that provides longer life in many applications.

S600 Series Insertion/Wet-tap pH and ORP Electrodes Specifications

Range	0-14pH (0-12pH without na+ error) +/- 2000mV for ORP
Wetted Materials Body/Junction: CPVC/HDPe ("-CD" models) PVDf/ Porous PVDf ("-KD" models) Measuring Surface: pH glass (pH), Platinum or Gold (ORP)
Temperature/Pressure Range (all models ending in "-CD") = 0C* - 75C (0-100psig), 80C (0-85psig) (all models ending in "-KD") = 0C* - 100C (0-100psig) Note: From 0 to 10C, electrodes will exhibit slower response time.
Reference Type	Ag/AgCl, Sealed Double Junction
Installation	Any direction
