Sanitary Flange Mounted Conductivity/Resistivity Sensor - CS615/CS620 Series
? Cell Constants: 0.01, 0.1, 1.0?
? Max Temperature?: 121 Degrees C?
? Max Pressure?: 100 psig?
? All 316 stainless steel construction
? Available with automatic temperature compensation
? Cell constant values of 0.01, 0.1 and 1.0
? 1"-1.5" and 2" Tri clamp flanges available
? Sensors are steam sterilizable
- Model Number: CS615/CS620 Series
- Data Sheet:
- Quantity:
- - +
Product Specification
Item No.: CS615, CS615TC, CS620, CS620TC
CS615/CS620 Series Conductivity Sensors Features
? All 316 stainless steel construction
? Available with automatic temperature compensation
? Cell constant values of 0.01, 0.1 and 1.0
? 1"-1.5" and 2" Tri clamp flanges available
? Sensors are steam sterilizable
CS615/CS620 Series Conductivity Sensors Description
Two models are available for 1"-1.5" Tri clamps or 2" Tri clamp flanges. Cell constants available are 0.01, 0.1 and 1.0. Optional temperature compensators are available to mate with specific makes and models of instrumentation. Cable is ten feet long and supplied with tinned wire terminations. Longer cable lengths are available at an additional cost. Please contact Sensorex with your requirements.
CS615/CS620 Series Conductivity Sensors Specifications
|
Cell Constants |
0.01, 0.1, 1.0 |
|
Wetted Materials |
316 stainless steel, Teflon, EPDM |
|
Max Temperature |
121 Degrees C |
|
Max Pressure |
100 psig |
|
Temp Comp |
(User specified temperature elements) Pt1000, Pt100 |
|
Cable Length |
10ft standard, tinned wire terminations (Longer length available at addtional cost, contact Sensorex) |
|
Process Connection |
Sanitary flange |
|
Surface Finish |
min RA20 |

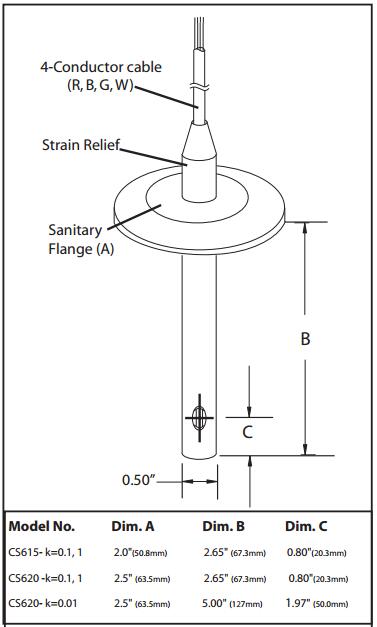

Designed for sanitary flange installations into 1-1.5" or 2" Tri clamp flanges. All 316SS construction with Teflon insulators.
CS615/CS620 Series Conductivity Sensors Ordering Information
Standard cable length is 10ft with tinned lead terminations. If longer cable length is required, specify cable length (if not 10ft). Also specify temperature compensation value and cell constant (K=0.01 or 0.1 or 1.0) and when ordering.
|
Sensors |
|
|
CS615 |
1" or 1.5" Conductivity sensor |
|
CS615TC |
1"or 1.5" Conductivity sensor with ATC |
|
CS620 |
2" Conductivity sensor |
|
CS620TC |
2" Conductivity sensor with ATC |
|
TC codes: PT1 = PT100 RTD, P1K = PT1000 RTD
Calibration Solutions-Quarts
|
|
|
TDS15 |
15ppm/23.8uS |
|
TDS30 |
30ppm/46.7uS |
|
TDS1000 |
1000ppm/1417uS |
|
TDS1500 |
1500ppm/2060uS |
|
TDS3000 |
3000ppm/3900uS |
|
TDS5687 |
5687ppm/7000uS |
|
TDS9523 |
9523ppm/10000uS |
|
Many other value solutions are available. Contact Sensorex for a complete listing. |
|
