High-speed Signal Conditioner - FPI-HS

? Measuring range:
R1: 0 to 5 psi / R2: 0 to 50 psi
R3: 0 to 150 psi / R4: 0 to 1000 psi
? Operating temperature: -20°C to 150°C?
? Accuracy: ±0.5% of full scale?
? Resolution?: 0.05% of full scale?
? Sampling rate?: Up to 15 kHz?
? Number of channel?: 1?
? Operating temperature?: 10°C to 50°C?

Model Number: FPI-HS
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Pressure High-Speed Measurement Applications

This "signal conditioning" module is both the light source and receiver of the fiber optic measurement system. The FPI-HR or FPI-HS convert the optical signal to a pressure reading and requires no external amplification box. The researcher may plug the catheter’s optical connector directly into the module or may use an (optional) extension cable with accompanying connection box.

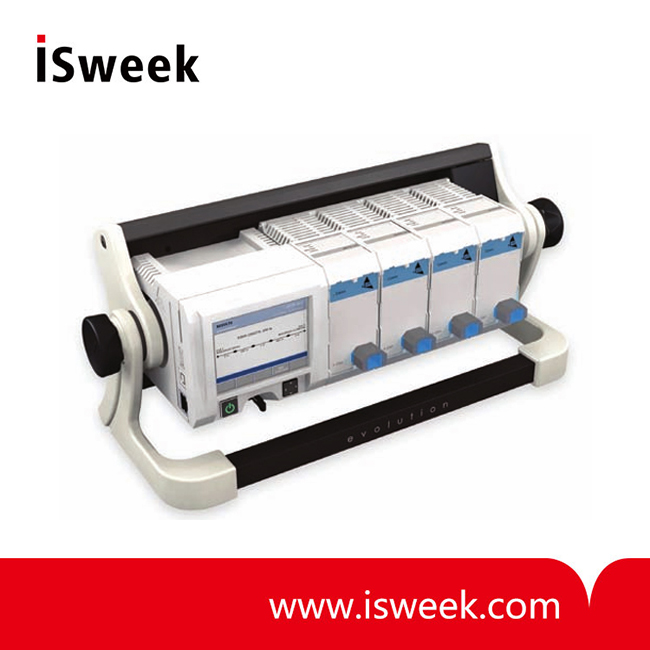

FPI-HS
Single channel (15,000Hz)

FPI-HS High-speed Signal Conditioner Application Products
? FOP pressure sensor
? FPI-HS module sensor
? EVOLUTION chassis

FPI-HS High-speed Signal Conditioner Key Features
? High accuracy
? Up to 15 kHz sampling rate
? Temperature-compensated modules
? Atmospheric pressure compensation (option)

FPI-HS High-speed Signal Conditioner Specifications

	Pressure – FOP-M
Measuring range	R1: 0 to 5 psi / R2: 0 to 50 psi R3: 0 to 150 psi / R4: 0 to 1000 psi
Operating temperature	-20°C to 150°C
Accuracy¹	±0.5% of full scale
Resolution	0.05% of full scale
Sampling rate	Up to 15 kHz
Number of channel	1
Analog output (Optional)	0 to 5V or 4–20 mA / 16 bits resolution
Operating temperature	10°C to 50°C
Storage temperature	-20°C to 70°C
Power consumption	<12 Watts
Lamp lifetime²	3000 hours
Connector	SCAI³, SCA
Fiber core size	62.5/125μm
Communication / Evolution chassis	USB via EVO chassis / TS 35 DIN RAIL
Communication / OEM	RS-232 / RS-485
LED sensor signal and communication diagnostic	Yes

1. Includes reproducibility (sensor/module exchange), repeatability and hysteresis, non-linearity, scale error, offset error, conditioner temperature compensation error.
Pressure: Accuracy at room temperature.
2. Lamp is replaceable on fi eld.
3. SCAI is an SCA connector with smart chip communicating calibration data to signal conditioner module.
