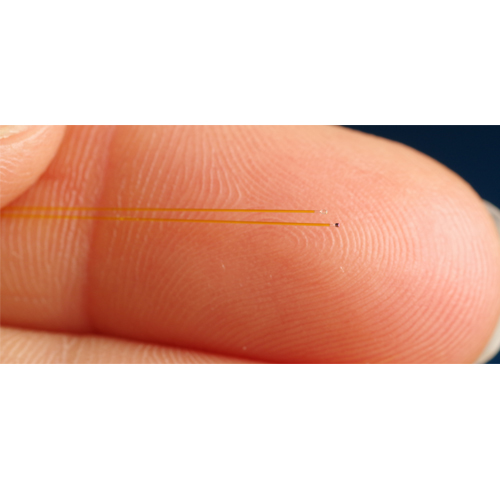

Fiber Optic Medical Pressure Sensor - FOP-M260

? Pressure Range: -300mmHg to 300mmHg
? Resolution: 0.1mmHg
? System Accuracy: ±3mmHg
? Zero thermal effect: <0.3mmHg/°C
? Proof pressure: >4500mmHg
? Cable Sheathing: Nylon Sheathing, OD: 0.9 mm

Model Number: FOP-M260
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

FOP-M260 Fiber Optic Medical Pressure Sensor Description
The FOP-M260 has a diameter of 260microns (0.010’’) and has a standard range of ±300mmHg relative to atmospheric pressure.
FOP-M260 is used in several FDA and CE approved devices in a variety of clinical applications.

FOP-M260 Fiber Optic Medical Pressure Sensor APPLICATION
? Cardiovascular: LV pressure, arterial BP
? Pharmacology: Drug and Fluid injection
? Neurosciences: Intracranial pressure
? Spine - Intradiscal pressure
? Bone - Intramedullary pressure
? Urology - Bladder/Ureter pressure
? MRI RFI Gating - Arterial blood pressure or LV pres-sure for image gating
? Respiratory / Pulmonology
? Otorhinolaryngology: Inner ear pressure
? Ophthalmology: Intraocular pressure
? Gastro intestinal

FOP-M260 Fiber Optic Medical Pressure Sensor SPECIFICATIONS

Pressure Range ¹	-300mmHg to 300mmHg
Resolution ²	0.1mmHg
System Accuracy ³	±3mmHg
Zero thermal effect ⁴	<0.3mmHg/°C
Proof pressure	>4500mmHg
Cable Sheathing	Nylon Sheathing, OD: 0.9 mm
Tip Termination	Bare / Sheathed / Sheathed with gel / Custom design
Standard Sensor Length	2 Meters
Connector	SCAI, SCAI is a SCA connector with smart chip communi-cating calibrating data to the signal reading module

¹. Relative to atmospheric pressure
². With a FPI-HS reading module and a filter of 30Hz applied.
³. M260 sensor and FPI-HR module : includes reproducibility (sensor/module exchange), repeatability andhysteresis, non-linearity, scale error, offset error, conditioner temperature compensation error.
⁴. Determined between 10°C and 70°C at atmospheric pressure (～760mmHg)
