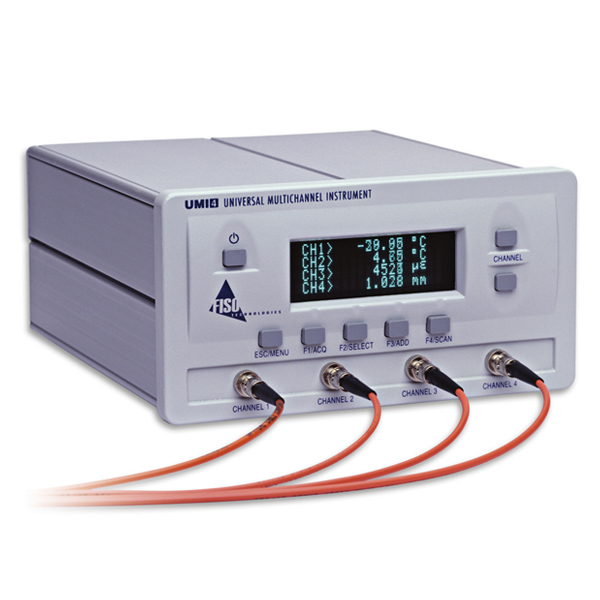

Fiber Optic Signal Conditioner Universal Multichannel Instrument - UMI

? 4 or 8 channels
? ±5 V Analog output
? RS-232 and USB communication ports
? Up to 20 Hz sampling rate
? Large VFD Display
? Compatible with most of FISO’s fiber optic sensors

Model Number: UMI
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

UMI Multi-channel Fiber Optic Signal Conditioner
The UMI is a tabletop, fiber optic signal conditioner especially designed to work with all of FISO’s fiber optic sensors. It is a general-purpose instrument ideally suited to perform multi-point temperature, pressure, strain, refractive index and displacement measurements in a myriad of industrial and R&D applications in hostile environments.

UMI Multi-channel Fiber Optic Signal Conditioner Key features:
? 4 or 8 channels
? ±5 V Analog output
? RS-232 and USB communication ports
? Up to 20 Hz sampling rate
? Large VFD Display
? Compatible with most of FISO’s fiber optic sensors

UMI Multi-channel Fiber Optic Signal Conditioner Applications:
? Microwave food processing
? Microwave packaging design
? Thermotherapy applications
? NMR
? Automotive
? Aerospace
? High temperature displacement measurement
? Multi-purpose laboratory applications
? In-situ process monitoring
? Civil engineering
? New material research
? Hazardous environments

UMI Multi-channel Fiber Optic Signal Conditioner Specifications:

Number of channels	4 or 8
Sampling rate	20 Hz
Switching time	150 ms
Precision	0.025% of full scale
Resolution	0.01% of full scale
Dynamic range	15 000 : 1
Display	4 lines by 20 characters Vacuum Fluorescent Display
Data logging	50 000 data points
Analog outputs	±5 V software adjustable in scale and offset
Communication	RS-232; USB
Upgradeability	Flash ROM firmware
Lamp life	40 000 hours of continuous use
Weight	2.2 kg (4.9 lb)
Dimensions (W x D x H)	191 x 217 x 99 mm (7.2 x 8.5 x 3.9 in)
Power requirements	10 to 20 Volts (5 Watts)
Operating temperature	-20°C to 40°C (-4°F to 104°F)
