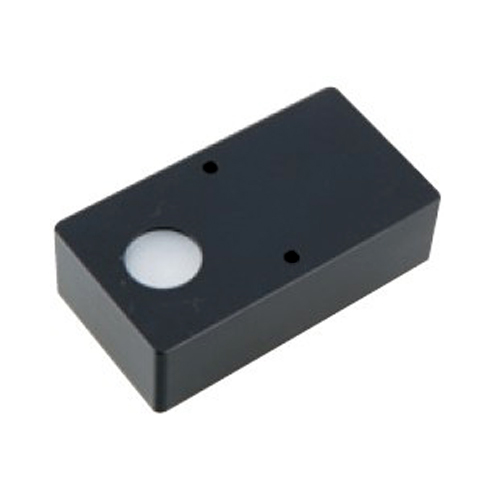

UV Sensor Probe - GUVA-T11GC-2LA2
- Air Environment
- Single Supply Voltage, Analog Voltage Output
- Power supply: 9~24VDC
- Supply Current: 0.05mA
- Spectral Detection Range: 220~370nm
- Output Voltage: 0~5V
- Detection Power Range: 0~100mW/cm2
- Response Time: 10ms
- Model Number: GUVA-T11GC-2LA2
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVA-T11GC-2LA2 UV Sensor Probe Features
- Air Environment, Single Supply Voltage, Analog Voltage Output
GUVA-T11GC-2LA2 UV Sensor Probe Applications
- UV Lamp Monitoring
GUVA-T11GC-2LA2 UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max |
||||
|
Storage Temperature |
Tst |
-40 |
|
90 |
℃ |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
℃ |
|
GUVA-T11GC-2LA2 UV Sensor Probe Electro-Optical Characteristics (at 25 ℃)
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
||||
|
Supply Voltage |
Vcc |
9 |
|
24 | V | DC |
|
Supply Current |
IQ |
|
0.05 |
|
mA |
|
|
Spectral Detection Range |
λ |
220 |
|
370 | nm |
10% of Max |
|
Output Voltage |
Vout |
0 |
|
5 | V |
|
|
Detection Power Range |
P | 0 |
|
100 | mW/cm2 |
|
|
Response Time |
T |
|
10 |
|
ms |
|
