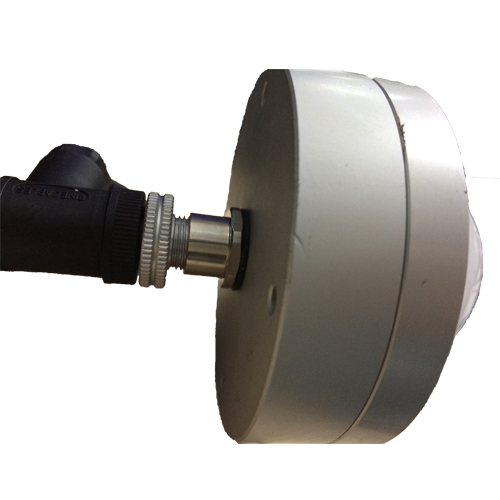

UV Sensor Probe - GUVA-S12SC-I8H3
- Single Supply Voltage, 4-20mA, Current Output
- Measure the UV Power from Sunlight
- Power Supply DC 9 ~ 24V
- Supply current:3.19~4.1mA, typical 4mA
- Spectral Detection Range: 240~370 nm
- Detection Power Range: 0~50mW/cm2
- Response Time: 10ms
- Model Number: GUVA-S12SC-I8H3
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVA-S12SC-I8H3 UV Sensor Probe Features
- Single Supply Voltage, 4-20 mA Current Output
- Measure the UV Power from Sunlight
GUVA-S12SC-I8H3 UV Sensor Probe Applications
- UV Power Monitoring of Sunlight
GUVA-S12SC-I8H3 UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max |
||||
|
Storage Temperature |
Tst |
-40 |
|
90 |
℃ |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
℃ |
|
GUVA-S12SC-I8H3 UV Sensor Probe Electro-Optical Characteristics (at 25 ℃)
|
Parameter |
Symbol |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max. |
|||||
|
Supply Voltage |
Vcc |
9 |
|
24 | V | DC | |
|
Offset Current |
IQ |
3.9 |
4 |
4.1 |
mA |
|
|
|
Spectral Detection Range |
λ |
240 |
|
370 | nm |
10% of Max |
|
|
Output Current |
Iout |
4 |
|
20 | mA |
at 1 mW/cm2 |
|
|
Detection Power Range |
P | 0 |
|
50 | mW/cm2 |
|
|
|
Response Time |
T |
|
10 |
|
ms |
|
|
|
Load Resistor |
RL |
|
|
500 |
? |
|
|
