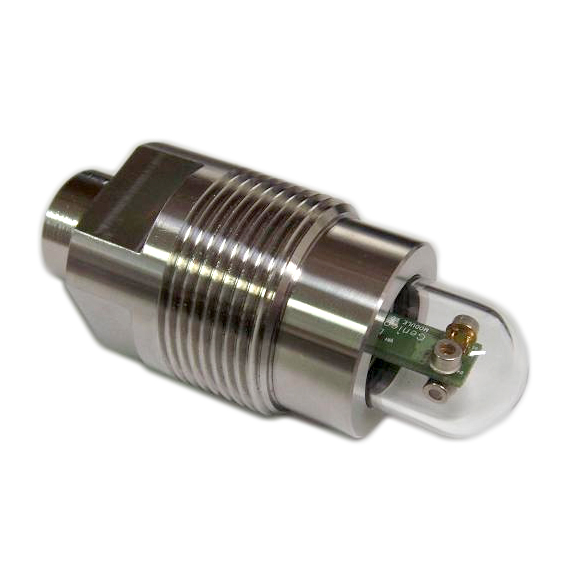

UV-C Sensor Probe - GUVC-T11GC-I7LW11
- Single Supply Voltage, 3 wire 4-20 mA Current output
- Water Environment (10 bar)
- AlGaInN-based UV Sensor
- Thread/Length for Mounting: PT 1? " /21 mm
- Operating Temperature: -30~85°C
- Supply Voltage: DC 9~24 V
- Offset Current: 4mA
- Spectral Detection Range: 220~280nm
- Model Number: GUVC-T11GC-I7LW11
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVC-T11GC-I7LW11 UV Sensor Probe Features
- Single Supply Voltage, 3 wire 4-20 ? Current Output
- Water Environment (10 bar)
GUVC-T11GC-I7LW11 UV Sensor Probe Applications
- Sterilization Lamp Monitoring
- Pure UV-C Monitoring
GUVC-T11GC-I7LW11 UV Sensor Probe Case dimensions
|
Thread/Length for Mounting |
Body
(mm) |
Window (mm) |
Head (mm) |
Wrench
Size (mm) |
Length (mm) |
Weight (kg) |
Body (stainless steel) |
| PT 1? "/21 mm | Φ42 |
Φ24 x 24 |
Φ36 x 15 | 36 | 81 |
0.44 |
316-L ( 1.4404 ) |
GUVC-T11GC-I7LW11 UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. | ||||
|
Storage Temperature |
Tst |
-40 |
|
90 |
°C |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
°C |
|
GUVC-T11GC-I7LW11 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
|
Parameter |
Symbol |
Value |
Unit |
Remark | ||
|
Min. |
Typ. |
Max. |
||||
|
Supply Voltage |
Vcc |
9 |
|
24 | V |
DC |
|
Offset Current |
Ioff |
|
4 |
|
mA |
|
|
Spectral Detection Range |
λ |
220 |
|
280 | nm |
10% of Max |
|
Output Current |
Iout |
4 |
|
20 | mA |
|
|
Detection Power Range |
P | 0 |
|
100 | mW/cm2 |
Total power of 4 sensor |
|
Response Time |
T |
|
10 |
|
ms |
|
* Maximum of detection power : 20 mW/cm2 (Option), 100 mW/cm2 (Standard)
