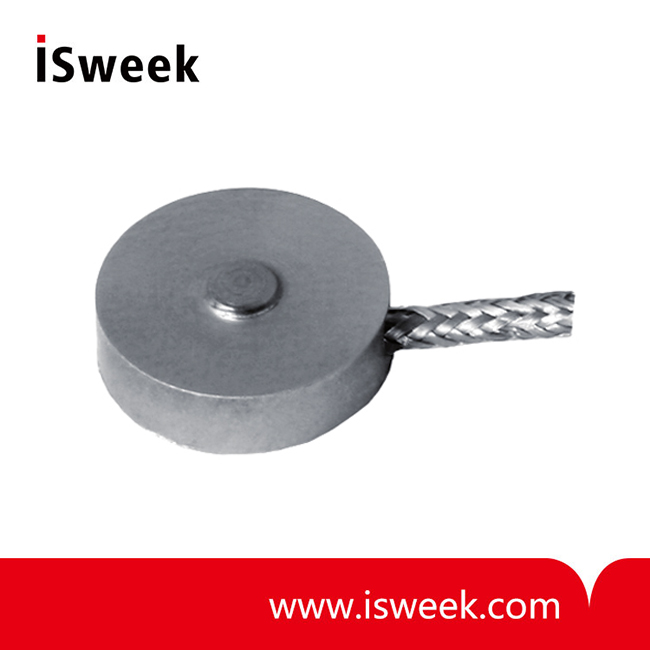

Subminiature Compression Load Cell - XLC86
? Measuring ranges: 0-50 g to 0-1,000 lbs
? Excitation: 5 VDC
? Casing Material: Stainless Steel
? Very Small Size
? 1.00% Accuracy
? Ease of Installatio
? Overload Protection
? Extended Compensated Temperature Range
- Model Number: XLC86
- Data Sheet:
- Quantity:
- - +
Product Specification
XLC86 Subminiature Compression Load Cell Model
? 0-50 g to 0-1,000 lbs
XLC86 Compression Load Cell Model Features
? Very Small Size
? 1.00% Accuracy
? Ease of Installation
XLC86 Compression Load Cell Model Options
? Overload Protection
? Extended Compensated Temperature Range
? Inline Amplifier
? Cable Length

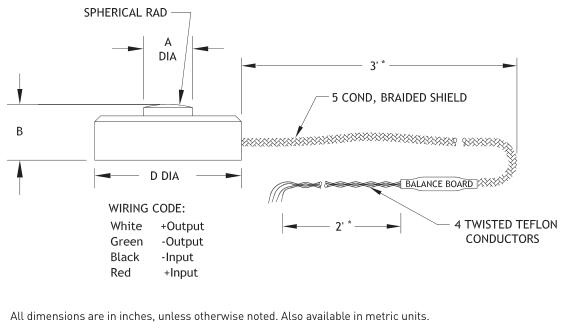

XLC86 Compression Load Cell Model Drawing
? 99-2634-0000
XLC86 Compression Load Cell Model Performance Specifications (FSO is Full Scale Output)
|
EXCITATION |
5 VDC |
|
OUTPUT 50 to 150g 250 to 500g 1000g 5 to 1000lb |
|
|
LINEARITY 50 to 500g 1000g to 1000lb |
|
|
HYSTERESIS 50 to 500g 1000g to 1000lb |
|
|
REPEATABILITY |
±0.10% FSO |
|
ZERO BALANCE |
±2% FSO |
|
OPERATING TEMP RANGE |
-65 to +250°F (-54 to +121°C) |
|
COMPENSATED TEMP RANGE |
+65 to +160°F (+15 to +71°C) |
|
THERMAL EFFECTS on Zero on Span |
|
|
SAFE OVERLOAD |
150% of Capacity |
|
ULTIMATE OVERLOAD |
300% of Capacity |
|
BRIDGE RESISTANCE 50 to 500g 1000g to 1000lb |
|
|
CASING MATERIAL |
Stainless Steel |
|
Capacity (gram/lbs) |
Ordering Example |
|
50 grams |
XLC86-050G |
|
1,000 grams |
XLC86-01KG |
|
10 lbs |
XLC86-0010 |
|
250 lbs |
XLC86-0250 |
|
1,000 lbs |
XLC86-001K |
|
Ranges (gram/lbs) |
D | A | B |
|
0 - 50 to 0 - 500 grams |
.38 |
.09 |
.13 |
|
0-1,000 grams to 0-50 lbs |
.38 |
.09 |
.13 |
|
0-100 to 0-250 lbs |
.50 |
.12 |
.15 |
|
0-500 to 0-1,000 lbs |
.75 |
.25 |
.25 |
