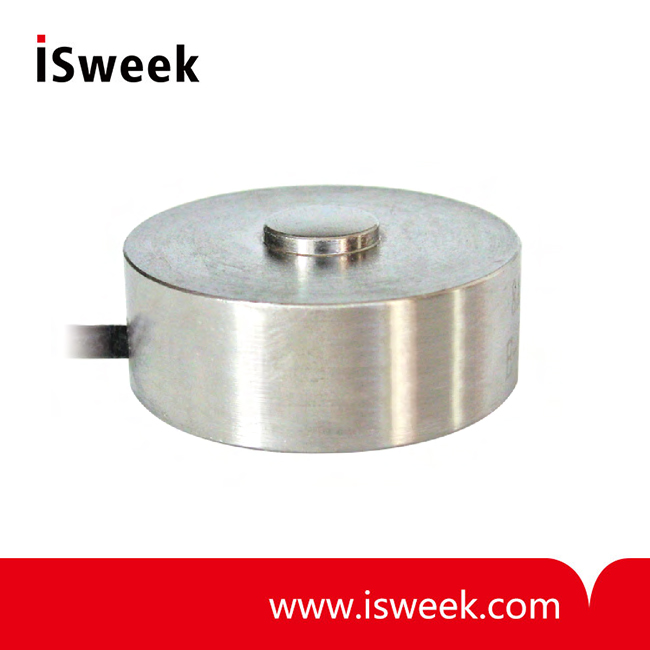

200kg to 2500kg Low Profile Compression Load Cell - CK
? Capacity from 200 kg to 2500 kg
? 17-4 PH Stainless Steel
? Combined Error ≤ ±0.5%
? Protection Class IP67
? Rated output: 1 mV/V ±15%?
- Model Number: CK
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
CK
Compression Load Cell - Low Profile
Capacity from 200 kg to 2500 kg
? 17-4 PH Stainless Steel
? Combined Error ≤ ±0.5%
? Protection Class IP67
CK Compression Load Cell TECHNICAL FEATURES
|
Material |
17-4 PH stainless steel |
|
Nominal load (E max) |
200 - 500 - 1000 - 2500 kg |
|
Combined error |
≤±0.5% |
|
Protection class |
IP67 |
|
|
|
|
Rated output |
1 mV/V ±15% |
|
Temperature effect on zero |
0.005% °C |
|
Temperature effect on span |
0.005% °C |
|
Compensated temperature range |
-10 °C / +50 °C |
|
Operating temperature range |
-20 °C / +70 °C |
|
Creep at nominal load in 30 minutes |
0.3% |
|
Max supply voltage without damage |
15 V |
|
Input resistance |
400 Ω ±100 |
|
Output resistance |
350 Ω ±5 |
|
Zero balance |
±1% |
|
Insulation resistance |
>5000 MΩ |
|
Safe overload (% of full scale) |
120% |
|
Ultimate overload (% of full scale) |
200% |
|
Deflection at nominal load |
0.3 mm |
CK Compression Load Cell ELECTRICAL CONNECTIONS
|
Cable lenght |
5 m |
|
Cable diameter |
3 mm |
|
Cores |
4/6 x 0.25 mm2 |
