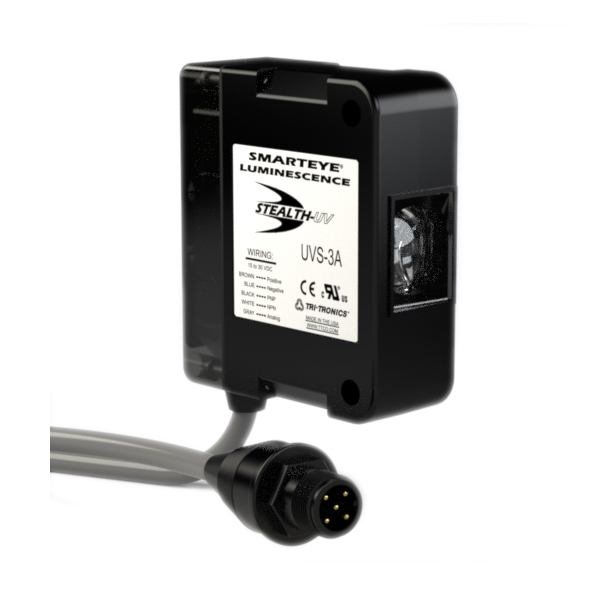

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor - UVS-A Series

? Supply Voltage:
10 to 30 VDC on 4-20 mA and 0-5 VDC models
15 to 30 VDC for 0-10 VDC models
Polarity Protected
? Current Requirements:
UVS-1A through 4A; 50 mA max
UVS-5A & 6A; 65 mA max (exclusive of load)
? Analog Output: 4-20 mA; 0-5 VDC; or 0-10 VDC
? Ambient Temperature: -15°C to +70°C (5°F to 158°F)
? Industry Ratings: NEMA 4, IP67

Model Number: UVS-A Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor Description
The SMARTEYE ? Stealth-UV Analog/Digital Sensor is a special-purpose sensor designed to detect the presence of invisible UV fluorescent materials contained in special chalk, ink, paint, grease, glue, and optical brighteners found in labels, paper, tape, string, etc. The sensor contains an ultraviolet (UV) solid-state light source that is used to excite the luminescent materials to fluoresce in the visible range.

The Analog Output is 4-20mA as the standard factory default configuration. The sensor can also be ordered with a 0-5 or a 0-10 VDC output. This provides flexibility when interfacing to different machine input requirements.

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor Features
? The widest selection of UV sensors in the world
? Analog and Digital outputs in one sensor:
Digital: NPN and PNP
Analog: 4-20mA, 0-5VDC or 0-10VDC
? Four easy AUTOSET modes
Light State
Dark State
Mid-Point
Two-Point
? The only standard fiber optic Luminescence sensor available in the industry
? Longest range, up to 24 inches
? Immune to most ambient light, including direct sunlight
? Contrast Indicator for "at-a-glance" performance data

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor Benefits
? One sensor fits all - both analog and digital outputs
? Three standard output configurations for multiple machine interfaces
? Four AUTOSET modes for maximum sensing flexibility and sensitivity
? Minimize inventory requirements
? Easy to use

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor Applications
? Product inspection & verification
? Amount of glue/adhesives on paper, plastics, envelopes and transparent materials
? Detection and verification of invisible registration marks for printing, cutting, positioning
? Continuous web splice detection
? Detecting and measuring marks (chalk) for grading or sorting such as lumber/wood, and tile products
? Verifying the presence/amount of lubricants such as oil, grease or identifying oil leaks
? Seeing UV threads in carpets for cutting or positioning
? Triggering on inkjet printed marks for product identification or inserting
? Detection of cellophane tape on cardboard cartons or boxes
? Detection & verification of cap liners for quality assurance & control

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor Specifications

SUPPLY VOLTAGE	? 10 to 30 VDC on 4-20 mA and 0-5 VDC models ? 15 to 30 VDC for 0-10 VDC models ? Polarity Protected
CURRENT REQUIREMENTS	? UVS-1A through 4A; 50 mA max ? UVS-5A & 6A; 65 mA max (exclusive of load)
DIGITAL OUTPUT	? (1) NPN and (1) PNP output transistor: NPN: Sink up to 150 mA PNP: Source up to 150 mA ? Continuous short circuit protected ? Outputs protected from pulsing during power up
ANALOG OUTPUT	? 4-20 mA; 0-5 VDC; or 0-10 VDC
RESPONSE TIME	? 200 us for UVS-1A through 4A ? 750 μs for UVS-5A ? 300 μs for UVS-6A
AMBIENT TEMPERATURE	? -15°C to +70°C (5°F to 158°F)
LIGHT IMMUNITY	? Responds to sensor’s pulse modulated light source, resulting in high immunity to most ambient light, including indirect sunlight
CONNECTION TYPE	? Built in 6" pigtail cable with 5-Pin Male, M12 Mini Micro connector

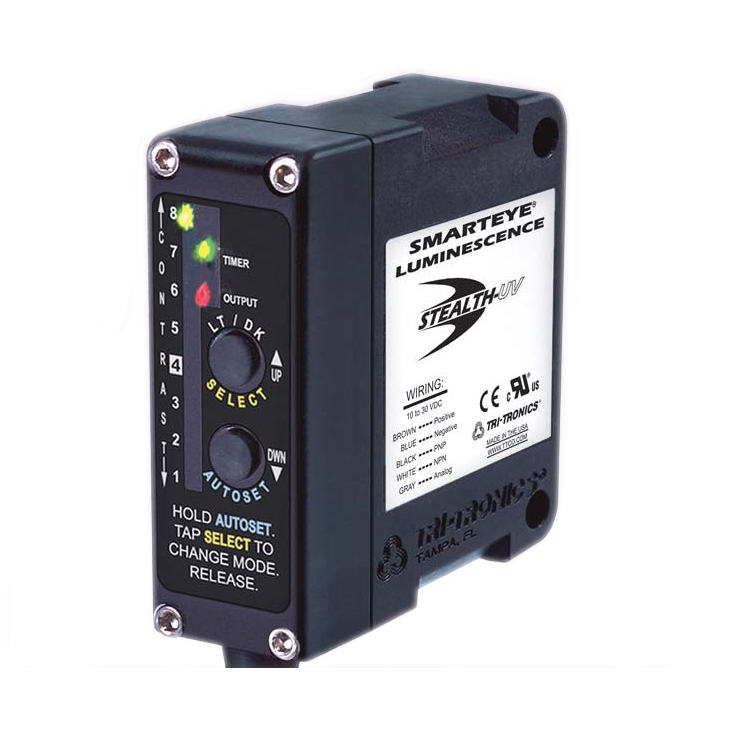

PUSHBUTTON CONTROL	? AUTOSET pushbutton setup ? Tweak adjustments with “UP” or “DWN” buttons ? Selection of Light/Dark operation ? Enable/Disable pulse stretcher ? "Select" button scrolls thru four AUTOSET modes
DIAGNOSTIC INDICATORS	? Contrast Indicator – Display scaled reading of sensor's response to contrasting UV light levels (light vs. dark) on an 8 bar LED display Note: All 8 LEDs will flash three times if contrast insufficient or too low in Two-Point AUTOSET mode ? Red LED Output Indicator – Illuminates when the sensor's output transistors are "ON" NOTE: If Output LED flashes, a short circuit condition exists ? Green LED Timer Indicator – Illuminates when the 15 ms pulse stretcher timer is enabled
LIGHT SOURCE	? UV LED, 375 nm Wavelength
RUGGED CONSTRUCTION	? Chemical resistant high impact polycarbonate housing, acrylic or glass lens cover ? Industry Ratings: NEMA 4, IP67
CERTIFICATIONS	? UL, CE, RoHS

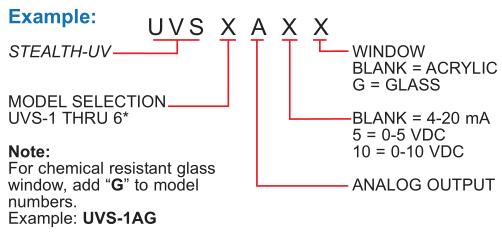

SMARTEYE Stealth-UV Analog/Digital Luminescence Sensor How to Specify
Model/Range Guidelines
Optimal range is dependent upon fluorescent concentration, size, and surface reflectivity.

Sensing Range Guidelines

Catalog Listing	Digital Output	Analog Output	Supply Voltage	Min. Load Voltage Out	Max. Impedance Out	Scanning Distance	Usable Range	Spot Size
UVS-1A	NPN/PNP	4-20mA	10 to 30VDC	N/A	500Ohms @ 12VDC In	0.5 Inches (12.7 mm)	5 Inches (127 mm)	.067 Inches (1.7 mm)
UVS-1A5		0 to 5VDC	10 to 30VDC	1k Ohm	N/A
UVS-1A10		0 to 10VDC	15 to 30VDC
UVS-2A	NPN/PNP	4-20mA	10 to 30VDC	N/A	500Ohms @ 12VDC In	1.0 Inch (25.4 mm)	7.5 Inches (190.5 mm)	.086 Inches (2.2 mm)
UVS-2A5		0 to 5VDC	10 to 30VDC	1k Ohm	N/A
UVS-2A10		0 to 10VDC	15 to 30VDC
UVS-3A	NPN/PNP	4-20mA	10 to 30VDC	N/A	500Ohms @ 12VDC In	2.0 Inches (50.8 mm)	10 Inches (254 mm)	.128 Inches (3.25 mm)
UVS-3A5		0 to 5VDC	10 to 30VDC	1k Ohm	N/A
UVS-3A10		0 to 10VDC	15 to 30VDC
UVS-4A	NPN/PNP	4-20mA	10 to 30VDC	N/A	500Ohms @ 12VDC In	4.0 Inches (101.6 mm)	13 Inches (330 mm)	.16 Inches (4.1 mm)
UVS-4A5		0 to 5VDC	10 to 30VDC	1k Ohm	N/A
UVS-4A10		0 to 10VDC	15 to 30VDC
UVS-5A	NPN/PNP	4-20mA	10 to 30VDC	N/A	500Ohms @ 12VDC In	8.0 Inches (203 mm)	2 Inches To 2 Feet (50.8 - 609.6 mm)	1.0 Inch (25.4 mm)
UVS-5A5		0 to 5VDC	10 to 30VDC	1k Ohm	N/A
UVS-5A10		0 to 10VDC	15 to 30VDC
UVS-6A	NPN/PNP	4-20mA	10 to 30VDC	N/A	500Ohms @ 12 VDC In	Dependent upon fiber optic selection	Up To 2.5 Inches (63.5 mm)	Dependent upon fiber optic selection
UVS-6A5		0 to 5VDC	10 to 30VDC	1k Ohm	N/A
UVS-6A10		0 to 10VDC	15 to 30VDC
