pH Sensor - SE 560
- pH: 0 ~ 14
- Temperature: -20 ~ +80℃
- Pressure: Unpressurized
- Temperature detector: Pt 1000
- Integrated temperature detector
- Measurement at low temperatures
- 3 ceramic junctions
- VP screw cap
- Model Number: SE 560
- Data Sheet:
- Quantity:
- - +
Product Specification

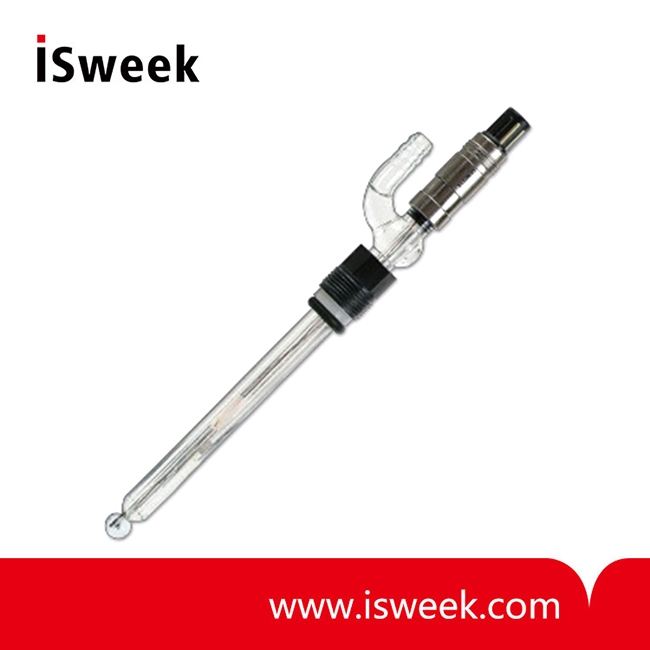

SE 560 pH Sensor
For low-conductivity media or low temperatures, refillable liquid electrolyte
Precise measurements due to self-cleaning junctions with high outflow of electrolyte even for media of very low conductivity. Measurement at low temperatures possible thanks to a special low-impedance glass.
SE 560 pH Sensor Applications
Ultrapure water, drinking water, boiler feed water in power plants, cooling brine
SE 560 pH Sensor Facts
- Precise measurement under difficult conditions (low conductivity, contaminations)
- Integrated temperature detector
- Measurement at low temperatures
- 3 ceramic junctions
- VP screw cap
SE 560 pH Sensor Specifications
|
pH |
0 ~ 14 |
|
Temperature |
-20 ~ +80℃ |
|
Pressure |
Unpressurized |
|
Temperature detector |
Pt 1000 |
|
Sensor material |
Low-impedance standard pH glass, fast response |
|
Reference system |
Liquid electrolyte, refillable, Ag/AgCl system |
|
Junction |
Platinum (3 x) |
|
Immersion depth |
120 mm |
|
Sensor cap |
VP (VarioPin) |
