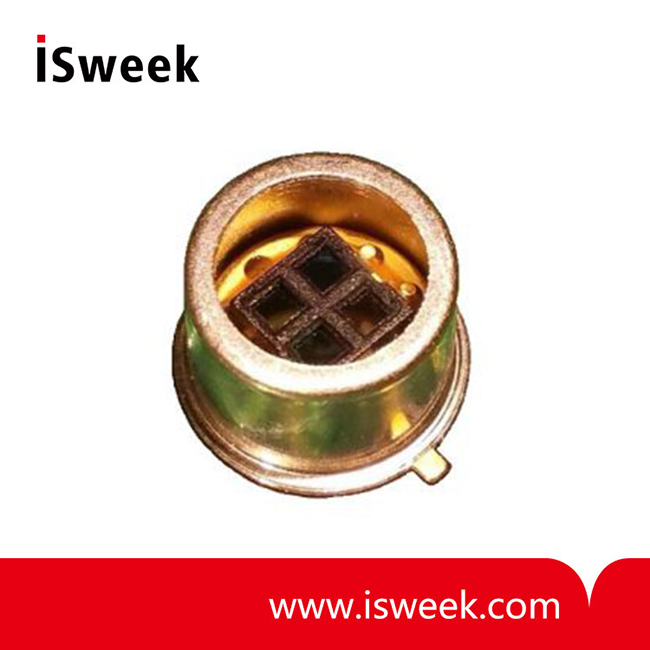

PbSe 4 Channel Infrared Detector - PbSe 4

? Four discrete ultra-sensitive optical channels in one package
? Support simultaneous measurement of multiple materials
? Sensitive in 1 to 5.5 um range for near and mid IR applications
? Compact TO-5 package maximizes potential application
? Hermetically sealed for use in harsh environments
? Available with narrow band pass (NBP) spectral filters
? Filters designed for CO2, CO and Hydrocarbon measurements

Model Number: PbSe 4
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

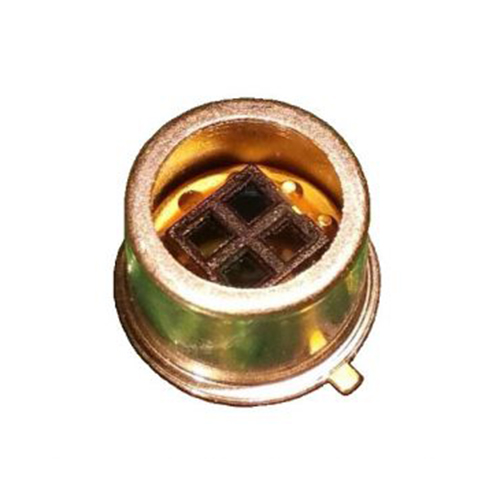

PbSe 4 Channel Infrared Detector
Multi-element assembly available with two to four discreet optical channels in a single package.

PbSe 4 Channel Infrared Detector Key Features:
? Four discrete ultra-sensitive optical channels in one package
? Support simultaneous measurement of multiple materials
? Sensitive in 1 to 5.5 um range for near and mid IR applications
? Compact TO-5 package maximizes potential applications
? Ideal for portable instruments where size is critical
? Hermetically sealed for use in harsh environments
? Available with narrow band pass (NBP) spectral filters
? Filters designed for CO2, CO and Hydrocarbon measurements
? Available with customer specified spectral filters

PbSe 4 Channel Infrared Detector Applications:
? Non-dispersive Infrared (NDIR) gas measurement

PbSe 4 Channel Infrared Detector Mechanical Dimensions:

PbSe 4 Channel Infrared Detector Filter Specifications:
? Element 1 – HC, CWL = 3.44 +/- .03 um, Transmission > 85% at CWL
? Element 2 – REF, CWL = 3.84 +/- .04 um, Transmission > 85% at CWL
? Element 3 – CO2, CWL = 4.26 +/- .04 um, Transmission > 85% at CWL
? Element 4 – CO, CWL = 4.64 +/- .05 um, Transmission > 85% at CWL
