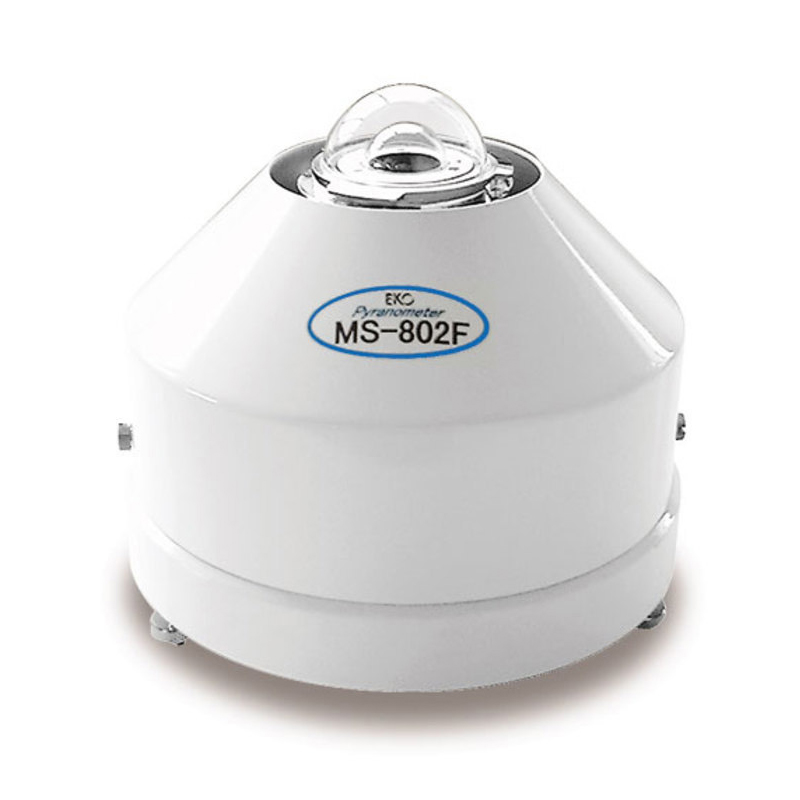

Secondary Standard Pyranometer - MS-802/MS-802F

? ISO 9060 classification?: Secondary Standard?
? Response time 95%: < 5?sec
? Sensitivity?: Approx. 7? μV/W ? m-2
? Impedance?: Approx. 500? Ω
? Operating temperature range: - 40 to +80?°C
? Irradiance range: 0 - 4000 W/m2?
? Cable length?: 10m?
? Wavelength range?: 285 to 3000 nm?

Model Number: MS-802/MS-802F
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MS-802 Secondary Standard Pyranometer Description
The MS-802 Secondary Standard Pyranometer is the ultimate reference sensor to measure global solar irradiance with the highest precision. Its robust brass mechanical construction makes it a durable sensor suitable to be used in harsh environments. The MS-802 is used as standard for PV research and climatol- ogy studies around the world.

In combination with a Sun tracker (STR-series) or manual shading ring (RSR-01), respectively the Global Normal Incidence (GNI) and Diffuse (DHI) irradiance can be measured. The MS-802F is a MS-802 with integrated ventilator unit to improve the performance under various environmental conditions (prevents or minimizes the effect of dew, rain, snow, ice and dust).

MS-802 Secondary Standard Pyranometer Features
? Secondary Standard Pyranometer
? Fast Response Time (95% < 5S)
? Temperature Compensated In A Wide Temperature Range
? High Quality Optical Glass Domes For Proper Cosine Response
? MS-802F is an MS-802 with a 110 VAC/12 VDC Ventilation System To Prevent Any Possible Influince Of Frost, Snow And Dus

MS-802 Secondary Standard Pyranometer Specifications

Specifications (typical)	MS-802 / MS-802F
ISO 9060 classification	Secondary Standard
Response time 95% (sec)	< 5
Zero offset - Thermal radiation (200W/m2)	< 6 W/m2
Zero offset - Temperature change (5K/hr)	< 2 W/m2
Non-stability (change/year)	< 0.5 %
Non-linearity (at 1000W/m2)	< 0.2 %
Directional response (at 1000W/m2)	< 10 W/m2
Spectral selectivity (0.35-1.5μm)	< 1 %
Temp. response (for 50°C band)	< 1 %
Tilt response (at 1000W/m2)	< 0.2 %
Sensitivity (μV/W ? m-2)	Approx. 7
Impedance (Ω)	Approx. 500
Operating temperature range (°C)	- 40 to +80
Irradiance range (W/m2)	0 - 4000 W/m2
Cable length	10m
Wavelength range	285 to 3000 nm
