Product Specification

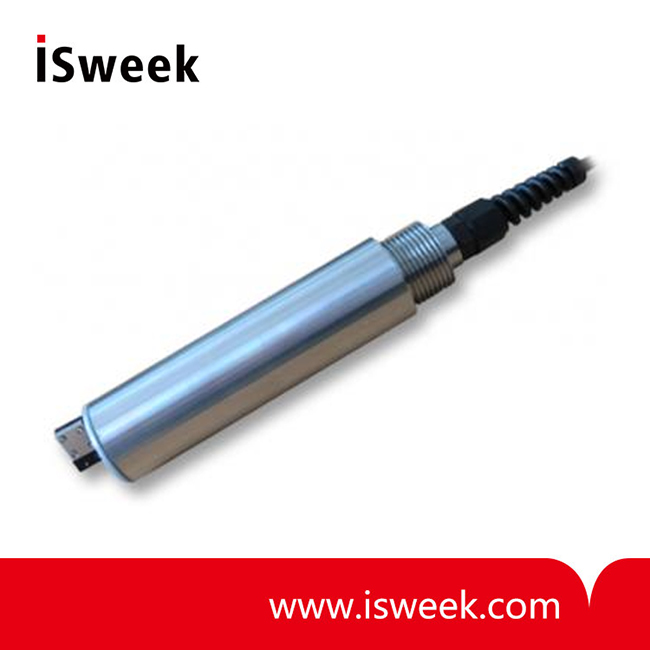

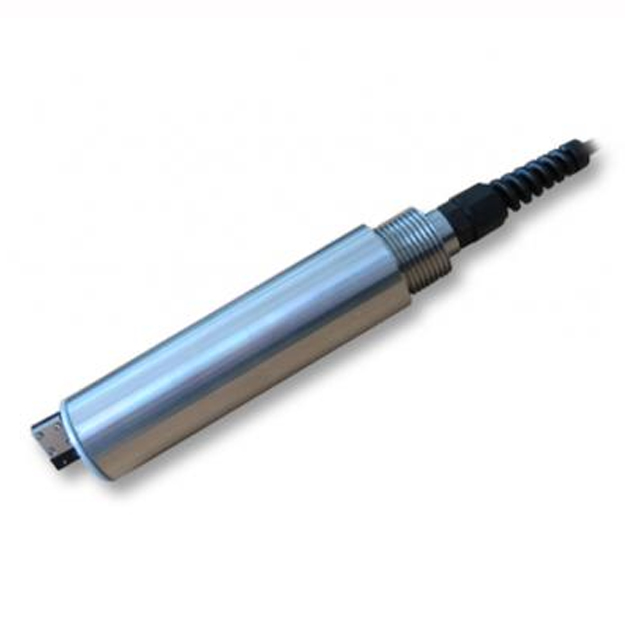

Y514-A?Chlorophyll Sensor?Description
Chlorophyll sensor is developed for in-situ monitoring. It has integrated wiper system which can automatically clean the optical sensor surface. Its low maintenance and rugged design is especially good for long term deployment for river, lake, pond, and ocean monitoring.

Y514-A?Chlorophyll Sensor?Features
? 0~400ug/L Chl or 0~100RFU
? Accuracy 0.09ug/L Chl
? 0~50 ℃; IP68 rating, 10m underwater
? Fluorometric method
? RS-485; MODBUS protocol compatible
? One or two point user calibration
? With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world

Y514-A?Chlorophyll Sensor?Technical Parameters
