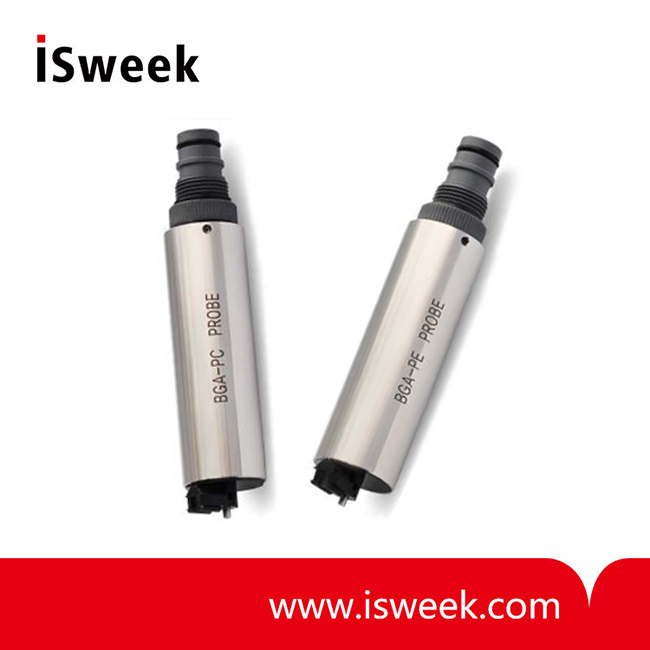

Integrated Blue-green Algae Sensor - BGA-200
? Measurement Range:
- Blue algae: 0~100ug/l (BGA-PC)
- Red algae: 0~80ug/l(BGA-PE)
? Resolution: 0.01ug/L
? Accuracy: ±1%F.S.
? Working temperature: 0~40℃.
? Working Pressure: <0.1 MPa.
? Power Supply: 7~16VDC ±10%?
? Signal Output: Rs485 (Modbus/RTU)
- Model Number: BGA-200
- Data Sheet:
- Quantity:
- - +
Product Specification
BGA-200 Integrated Blue-green Algae Sensor Description
This product is one of the optical transmitter cyanobacteria and red algae, using ultraviolet light absorption principle, protection class IP68, can be installed directly into the formula, suitable for all occasions need to measure blue-green algae, such as marine environmental monitoring and other industries.
BGA-200 Integrated Blue-green Algae Sensor Technical Parameters
| Measurement Range |
Blue algae: 0~100ug/l (BGA-PC) Red algae: 0~80ug/l(BGA-PE) |
||
| Resolution | 0.01ug/L | ||
| Accuracy | ±1%F.S. | ||
| Working temperature | 0~40℃. | ||
| Working Pressure | <0.1 MPa. | ||
| Power Supply | 7~16VDC ±10% | ||
| Signal Output | Rs485(Modbus/RTU) | ||
| Wetted Material | SS316L | ||
| Installation | Sinking | ||
| Maintenance | Electrode is cleaned once a month, once every three months calibration. | ||
| Display | No display | ||
| Temperature Compensation | Automatic temperature compensation NTC10K | ||
| Calibration | Two-point calibration | ||
| Enclosure Rating | Standard cable length 10 m | ||
| Measuring Principle | Fluorescence |
