Product Specification

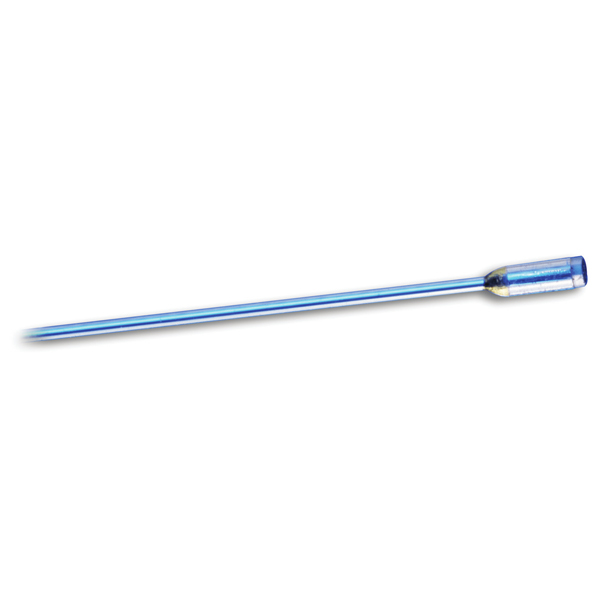

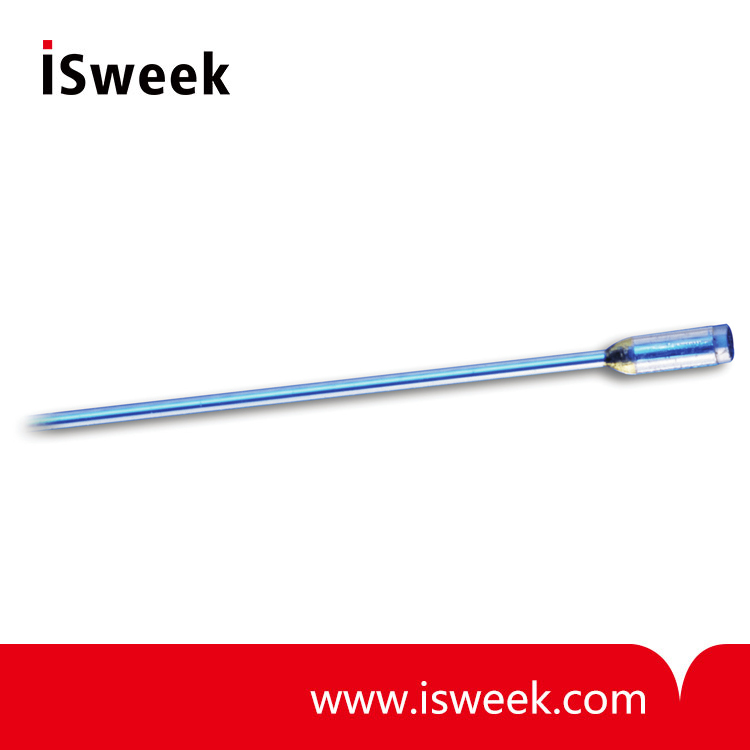

FOP-MHP Fiber Optic Pressure Sensor

The FOP-M High Pressure is a fiber optic pressure sensor designed mainly for applications where high pressure conditions can be found such as in aero-space and defense. It is also a useful tool for general industrial applications in harsh and hazardous environments.

Designed to operate in high-pressure conditions, where standard sensors fail, the FOP-M High Pressure sensor offers immunity to EMI/RFI, a small size, reliable mea-surements under harsh conditions, high accuracy, and resistance to corrosive envi-ronments.

FOP-MHP Fiber Optic Pressure Sensor Key Features
??Designed to operate in high?pressure ranges, where standard?sensors fail
??Intrinsically safe
??Immune to EMI/RFI

FOP-MHP Fiber Optic Pressure Sensor Applications
??Aerospace
??Defense
??Metallurgy
??Industrial in-situ process monitoring
??High temperature
??Harsh and hazardous environments
??High temperature environments
??Oil well and natural gas pumping station
??Plastic injection molding & extrusion monitoring
??Food packaging

FOP-MHP Fiber Optic Pressure Sensor Specifications
Pressure range: 0-3000 psi; 0-5000 psi
Resolution(*1): <0.5% of full scale
Accuracy(*2): <2% of full scale
Connector type: ST connector
Operating temperature: -20℃ to 150℃ (-4℉ to 302℉)
*1. Signal conditioner dependent.
*2. Relative to atmospheric pressure.
