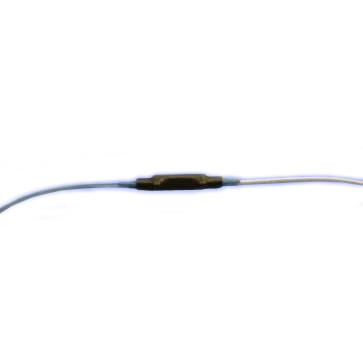

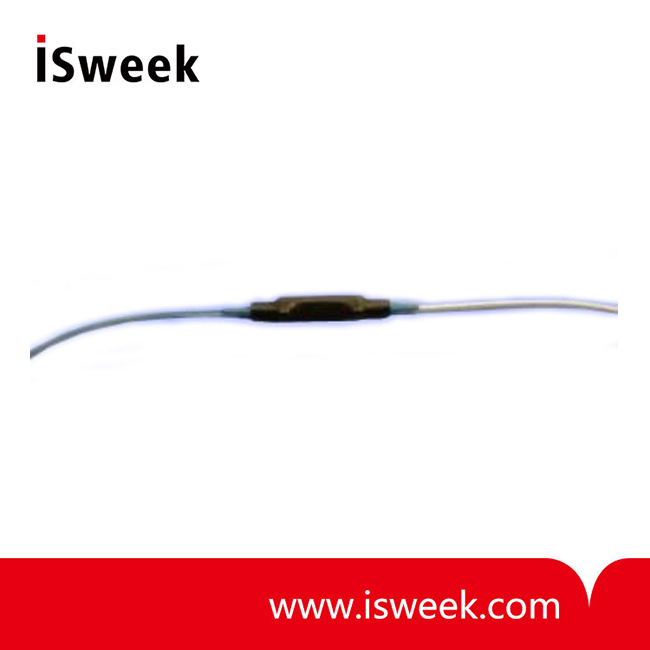

Fiberoptic Electric Field Sensor (Straight Version) - EOFS-xx1 Series

? No metal parts
? Passive
? Miniature
? Optical fiber readout
? Microwave pulse measurement
? Electric field measurement
? Microwave pulse measurement
? Electric field measurement

Model Number: EOFS-xx1 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

EOFS-xx1 Series Fiberoptic Electric Field Sensor Product Description
This Electric-field sensor, based on EO effect, is probed by a laser through optic fiber and packaged only with dielectric components. It is ideally suitable to remotely and non-intrusively measure electric fields and microwave radiation up to Gigahertz range.

EOFS-xx1 Series Fiberoptic Electric Field Sensor Features
? No metal parts
? Passive
? Miniature
? Optical fiber readout

EOFS-xx1 Series Fiberoptic Electric Field Sensor Applications
? Microwave pulse measurement
? Electric field measurement

EOFS-111 Series Fiberoptic Electric Field Sensor Performance Specifications - High Frequency

High Frequency Sensor	Min	Typical	Max	Unit
Frequency	DC		7.0	GHz
Sensitivity		8		mV/m-Hz ^1/2
Maximum detectable E-field			200	kV/m
Damage E-field			5	MV/m
Package Dimension**	6.0 x 6.0 x 40.0			mm

* Defined by measuring with a 1550nm laser at 20mW and 10 MHz.
** High frequency sensor

EOFS-121 Series Fiberoptic Electric Field Sensor Performance Specifications of Low Frequency

Low Frequency Sensor	Min	Typical	Max	Unit
Frequency	DC		400	MHz
Sensitivity*		0.8		mV/m-Hz^1/2
Maximum detectable E-field			1	kV/m
Damage E-field			5	MV/m
Package Dimension	8.0 x 8.0 x 60.0			mm
