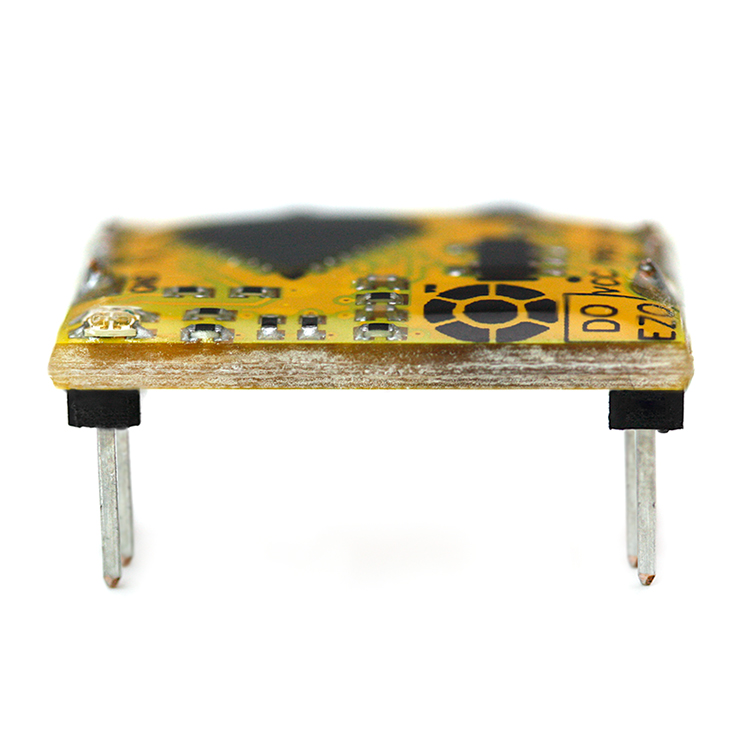

EZO Dissolved Oxygen Circuit - EZO-DO

? Reads: Dissolved Oxygen
? Range: 0.01 - 100+ mg/L, 0.1 - 400+ % saturation
? Accuracy: +/- 0.05 mg/L
? Max rate: 1 reading per sec
? Calibration: 1 or 2 point
? Data protocol?: UART & I2C?
? Operating voltage?: 3.3V - 5V?
? Data format?: ASCII?

Model Number: EZO-DO
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

EZO Dissolved Oxygen Circuit

EZO-DO EZO Dissolved Oxygen Circuit Description
EZO Dissolved Oxygen circuit is a very sensitive device. This sensitivity is what gives the Dissolved Oxygen circuit its accuracy. This also means that the Dissolved Oxygen circuit is capable of reading micro-voltages that are bleeding into the water from unnatural sources such as pumps, solenoid valves or other probes/sensors.

When electrical noise is interfering with the Dissolved Oxygen readings it is common to see rapidly fluctuating readings or readings that are consistently off. To verify that electrical noise is causing inaccurate readings, place the Dissolved Oxygen probe in a cup of water by itself. The readings should stabilize quickly, confirming that electrical noise was the issue

When reading Dissolved Oxygen and Conductivity together, it is strongly recommended that the EZO? Dissolved Oxygen circuit is electrically isolated from the EZO? Conductivity circuit.

EZO-DO EZO Dissolved Oxygen Circuit Dimensions

EZO-DO EZO Dissolved Oxygen Circuit Power consumption

	LED	MAX	STANDBY	SLEEP
5V	ON	13.5 mA	13.1 mA	0.66 mA
5V	OFF	12.7 mA	12.7 mA
3.3V	ON	12.1 mA	12 mA	0.3 mA
3.3V	OFF	11.9 mA	11.9 mA

EZO-DO EZO Dissolved Oxygen Circuit Absolute max ratings

Parameter	MIN	YP	MAX
Storage temperature (EZO? D.O.)	-65 °C		125 °C
Operational temperature (EZO? D.O.)	-40 °C	25 °C	85 °C
VCC	3.3V	5V	5.5V

EZO-DO EZO Dissolved Oxygen Circuit Specifications

Reads	Dissolved Oxygen
Range	0.01 - 100+ mg/L 0.1 - 400+ % saturation
Accuracy	+/- 0.05 mg/L
Max rate	1 reading per sec
Supported probes	Any galvanic probe
Calibration	1 or 2 point
Temp. compensation	Yes
Salinity compensation	Yes
Pressure compensation	Yes
Data protocol	UART & I2C
Default I2C address	97 (0x61)
Operating voltage	3.3V - 5V
Data format	ASCII
Circuit dimensions	13.97mm x 20.16mm (0.55" x 0.79")
Weight	1.77 grams
