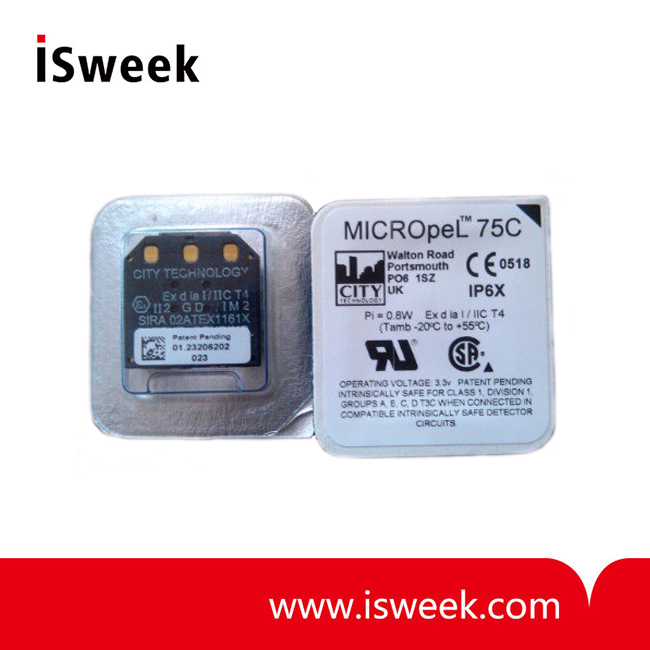

Combustible Gas Sensor - MICROpeL 75C

? Range: 0-100% LEL
? Sensitivity: 31 ± 5 mV/%methane
? T90 Response Time: <5 seconds (methane)
? Linearity: Linear up to 3% methane
? Operating Voltage: 3.30 ± 0.02 VDC
? ATEX, UL and CSA Approvals
? Withstands EN/IEC 60079-0 impact test
? Enhanced H2S and silicone poison resistance
? Reduced Orientation Effects

Model Number: MICROpeL 75C
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MICROpeL 75C Combustible Gas Sensor Description
MICRO combustible gas sensor, resistant to H2S and enhanced resistance to silicone poisoning – ATEX, UL & CSA certified.

MICROpeL 75C Combustible Gas Sensor Key Features & Benefits:
? ATEX, UL and CSA Approvals
? Withstands EN/IEC 60079-0 impact test
? Enhanced H2S and silicone poison resistance
? Reduced Orientation Effects

MICROpeL 75C Combustible Gas Sensor Performance Characteristics

MEASUREMENT
Operating Principle	Catalytic Oxidation
Gases Detected	Combustible gases
Suitable for	Methane, ethane, propane, butane, pentane, hexane, carbon monoxide & hydrogen
Unsuitable for	Higher hydrocarbons, alcohols, ketones, esters, hydrogen sulfide and other sulfur containing compounds
Range	0-100% LEL
Sensitivity*	31 ± 5 mV/%methane
T90 Response Time*	<5 seconds (methane)
Poison Resistance	Resistance to H2S poisoning Superior silicone resistance
H2S Filter Lifetime	Typically 1000 ppm hr
Linearity	Linear up to 3% methane

ELECTRICAL
Operating Voltage	3.30 ± 0.02 VDC
Detector Operating Current	78 ± 6 mA
Maximum Power Consumption	295 mW
Resolution	1% LEL

MECHANICAL
Weight	2 g (nominal)
Orientation Sensitivity	None

ENVIRONMENTAL
Operating Temperature Range	-20 oC to +55 oC
Operating Pressure Range	1 atm ± 20%
Operating Humidity Range	0-90% RH non-condensing

LIFETIME
Long Term Span Drift*	<5% signal/month
Long Term Zero Drift*	<5% LELmethane/month
Recommended Storage Temp	0 oC to 20oC
Shelf life	6 months in sealed container
Warranty	12 months from date of despatch

* Specifications are valid at 20°C, 50%RH and 1013 mbar at a flow rate of 300 ml/min.
Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
