Higher Temperature Resistivity Flammable Gas Sensors - NAP-56A
Supply voltage: DC 2.5±0.25V; AC 2.5±0.25V (RMS 50-60Hz)
Current (2.5V applied): DC 150-170mA; AC 150-170mA (RMS 50-60Hz)
Operating temp.: -10 ~ +50℃
Operating humidity: less than 95%RH
Output in clean air: -35 ~ +35mV
- Model Number: NAP-56A
- Data Sheet:
- Quantity:
- - +
Product Specification
NAP-56A is not made with thermoplastics to achieve a higher temperature resistivity. The pin locations and dimensions are compatible to NAP-55A for the convenience of current users of Nemoto NAP-55A. The gas sensitivity is better than NAP-55A by about 15%. Users are to pay attention to this higher gas sensitivity upon calibration.
* Target gases & concentration
|
gases |
Detection range |
|
|
Methane |
CH4 |
0.05-5% (0.05-2%)
|
|
Ethane |
C2H6 |
0.05-3.2% (0.05-1.5%)
|
|
Hydrogen |
H2 |
0.05-4% (0.05-1.5%)
|
|
Hydro-carbons |
CnH2n+2 |
1-100%LEL (1-50%LEL) |
( ) is a detection range in high accuracy
* Ratings
Item
Ratings
Supply voltage
DC 2.5±0.25V
AC 2.5±0.25V(RMS 50-60Hz)
Current (2.5V applied)
DC 150 - 170mA
AC 150 - 170mA(RMS 50-60Hz)
Ambient temperature
In operation -10 ~ +50℃
In storage -10 ~ +50℃
Ambient humidity
In operation : less than 95%RH
In storage : less than 99%RH
(without dew condensation)
Structure & appearance of NAP-56A

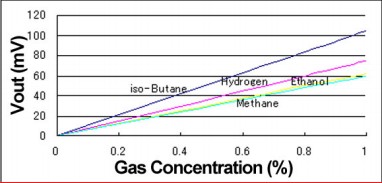

* Gas sensitivity characteristics
|
Gases and concentration |
Output values |
|
Output in clean air |
-35~ +35mV |
|
Methane 3,000ppm |
15~ 23mV |
|
Iso-butane 1,400ppm |
12~ 18mV |
|
Hydrogen 1,400ppm |
10~ 17mV |
