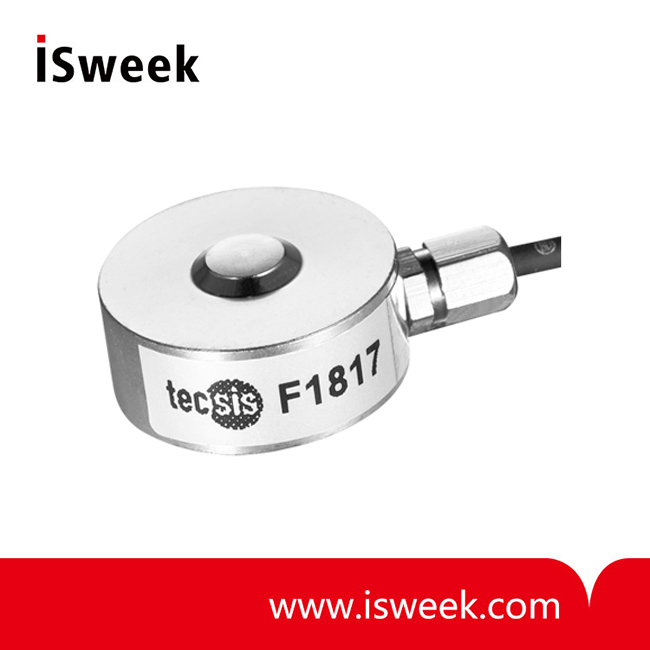

5kg to 1t Compression Load Cell - F1817
? capacities range from 5Kg to 1t
? Rated output: 1.5±10% mV / V
? Zero balance: ±2 % F.S.
? Non-linearity: ≤1 % F.S.
? Hysteresis: 0.25 % F.S.
? Repeatability: 0.25% F.S.
? Operation temp range: -20 ~ 80°C
? Protection class: IP64
- Model Number: F1817
- Data Sheet:
- Quantity:
- - +
Product Specification
F1817
Compression Load Cell
F1817 Compression Load Cell Size and Capacity
F1817 Compression Load Cell Features & Applications
? Stainless steel miniature type load cell.
? Designed for low profile compression service.
? Its capacities range from 5Kg to 1t .
? It comes complete with 1.5m of load cell cable.
? Diameter 19mm, height 9mm.
? Customizable.
? The protection class is IP66.
? It is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.
F1817 Compression Load Cell Technical Parameters
|
Specifications |
Technique |
|
Rated output |
1.5±10% mV / V |
|
Zero balance |
±2 % F.S. |
|
Non-linearity |
≤1 % F.S. |
|
Hysteresis |
0.25 % F.S. |
|
Repeatability |
0.25% F.S. |
|
Temp.effect on output |
0.36 % F.S. / 10°C |
|
Temp.effect on zero |
0.18 % F.S. / 10°C |
|
Input impedance |
350±10Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5 V |
|
Maximum excitation |
10 V |
|
Compensated temp range |
- 10 ~ 60°C |
|
Operation temp range |
- 20 ~ 80°C |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
200 % F.S. |
|
Cable size |
?2×3000 mm |
|
Protection class |
IP64 |
|
Cable color code |
Input: Red(+) Black(-);
|
