3 in 1 pH/Reference/Temperature Electrodes - S290C Series

? pH Measuring Range: 0-14 pH (Na+ error >12.3 pH)
? Temperature Range: 0-70 Degrees C
? Wetted Materials: Epoxy, Silicone, Pellon R, pH Glass, leaded glass
? Temp Comp: 10K NTC, 30K NTC or Pt1000 RTD
? Cable Length: 30 inches
? Response Speed pH: >90% in 1 second
? ?Durable Epoxy body construction

Model Number: S290C Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

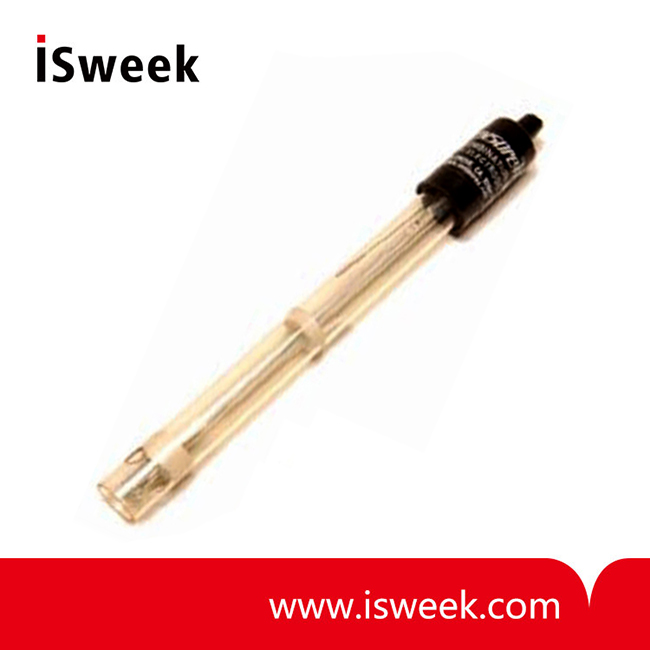

3 in 1 pH/Reference/Temperature Electrodes

Item No.: S290C, S291C, S292C, S293C, S294C, S295C S296C, S297C, S298C, S299C

S290C Series 3 in 1 pH/Reference/Temperature Electrodes Features
? Available for many popular makes and models of benchtop pH meters
? Durable Epoxy body construction
? Shipped in soaking solution ready for immediate use
? Value price for 3 electrodes in 1!
? Gel-filled reference, choice of single or double junction

S290C Series 3 in 1 pH/Reference/Temperature Electrodes Description
3-in-1 combination electrodes are excellent choices for applications requiring pH, reference, and automatic temperature compensation (ATC). The 3-in-1 electrode operates like three separate electrodes, at a value price, you would pay for only one electrode.

These electrodes are designed to retrofit the original factory electrodes supplied with your meter but at substantial savings. Built into the body is an ATC element compatible with your meter. Combine the ATC element with the Sensorex durable and proven epoxy body pH electrode and you will get a premium quality direct fit: a 3-in-1 replacement pH electrode.

S290C Series 3 in 1 pH/Reference/Temperature Electrodes Specifications

pH Measuring Range	0-14 pH (Na+ error >12.3 pH)
Temperature Range	0-70 Degrees C
Wetted Materials	Epoxy, Silicone, Pellon R , pH Glass, leaded glass
Temp Comp	10K NTC, 30K NTC or Pt1000 RTD (see ordering information)
Cable Length	30 inches
Response Speed pH	>90% in 1 second

S290C Series 3 in 1 pH/Reference/Temperature Electrodes Ordering Information
All 3-in-1 pH/Reference/ATC electrodes are supplied with 36 inches of cable and specific connectors to match meter by brand and model number.

Part Number	Used With Meter	ATC Element Type	Connectors
S290C	Orion Series A, HACH EC	30K NTC	BNC + 8-pin DIN
S291C	Orion Series EA/SA	30K NTC	BNC + Banana Plug x 2
S292C	Corning	30K NTC	BNC + Phono plug
S293C	Custom Configurable	Specify	Specify
S294C	HACH One	30K NTC	BNC + C3
S295C	WTW	30K NTC	DIN M + 1 each 4mm Banana plug
S296C	Jenco Instruments, 1671, 6072, 6091N	10K NTC	4-pin Hirose
S298C	Fisher Scientific	10K NTC	BNC + sub-mini phono plug
S299C	Mettler Toledo	1000 Ohm RTD	DIN M + 3.5mm phono plug
