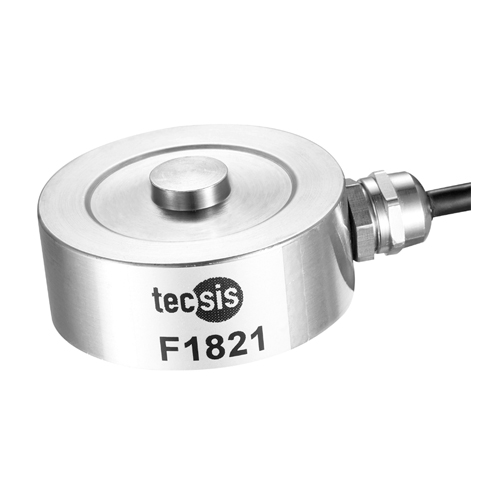

20kg to 10t Compression Load Cell - F1821

? capacities range from 20kg to 10t
? Rated output: 1.5±10% mV / V
? Zero balance: ±3 % F.S.
? Non-linearity: 0.5 % F.S.
? Hysteresis: 0.5 % F.S.
? Repeatability: 0.1 % F.S.
? Operation temp range: -20 ~ 80oC
? Protection class: IP66

Model Number: F1821
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

F1821
Compression Load Cell

F1821 Compression Load Cell Size and Capacity

F1821 Compression Load Cell Features & Applications
? Stainless steel load cell.
? Its capacities range from 20kg to 10t.
? It comes complete with 3m of load cell cable.
? The protection class is IP66.
? Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications.
? There are four holes in the background of the load cell, this makes it easy to install.
? Apply for mechanical assembling, stamping force test and control which precision requirements are undemanding.Like pressing machine, Bearing assembly machine.
? Transient force measurement and control of dynamic stamping equipment.
? Hopper scale and tank scale dynamic weight control.

F1821 Compression Load Cell Technical Parameters

Specifications	Technique
Rated output	1.5±10% mV / V
Zero balance	±3 % F.S.
Non-linearity	0.5 % F.S.
Hysteresis	0.5 % F.S.
Repeatability	0.1 % F.S.
Creep (30min)	0.1 % F.S.
Temp.effect on output	0.05 % F.S. / 10°C
Temp.effect on zero	0.05 % F.S. / 10°C
Input impedance	385±10Ω
Output impedance	350±3Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	10 V
Maximum excitation	15 V
Compensated temp range	-10 ~ 60 oC
Operation temp range	-20 ~ 80oC
Safe overload	150% F.S.
Ultimate overload	200 % F.S.
Cable size	?4×3000 mm
Protection class	IP66
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
