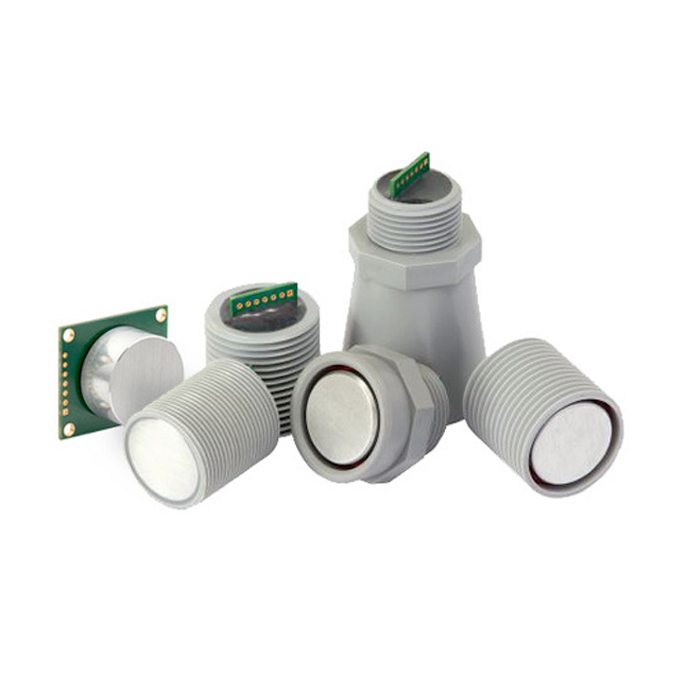

XL-MaxSonar-WRM1 High Performance Ultrasonic Rangefinder - MB7052

? Resolution of 1 cm
? 6.67Hz read rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Operates from 3.0-5.5V
? Low 3.4mA average current requirement
? Operational Temperature from -40?C to +70?C (-40?F to +160?F)
? Maximum range of 765 cm (300 inches)

Model Number: MB7052
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MB7052?XL-MaxSonar-WRM1
High Performance Ultrasonic Precision Rangefinder

MB7052?XL-MaxSonar-WRM1?Ultrasonic Rangefinder?Product Description

The XL-MaxSonar-WRM1 ignores smaller targets and only reports the range to target with the largest acoustic return. This is one of our advanced weather resistant sensors designed for target detection and ranging outdoors or in tank or bin applications.

The weather resistant XL-MaxSonar-WRM1 is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4-inch PVC pipe fittings.

High output acoustic power combined with continuously variable gain, real?time background automatic calibration, real?time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.

MB7052?XL-MaxSonar-WRM1?Ultrasonic Rangefinder?Product Specifications
? Resolution of 1 cm
? 6.67Hz read rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 select sensor outputs: Analog Voltage, Serial, Pulse Width
? Operates from 3.0-5.5V
? Low 3.4mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Operational Temperature from -40?C to +70?C (-40?F to +160?F)
? Real-time automatic calibration (voltage, humidity, ambient noise)
? Firmware filtering for better noise tolerance and clutter rejection
? 200,000+ Hours Mean Time Between Failure
? Weather Resistant (IP67), optional Chemical Resistant F-Option
? Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4" National Pipe Thread Straight)
? Our most advanced weather resistant, ultrasonic sensor
? Additional stability filter rejects occasional anomalous readings
? Detects the largest signal return in the field of view
? Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
? Can be used to range large objects behind small obstructions
? Maximum range of 765 cm (300 inches)
? Long range, narrow detection zone

MB7052?XL-MaxSonar-WRM1?Ultrasonic Rangefinder?Features and Benefits
? Clutter rejection provides range to the largest amplitude reflection within the field of view
? Real-time calibration, noise rejection and additional filtering provides stable range information
? Excellent for ranging to large objects in the presence of cluttered or noisy environments
? Excellent for applications that require consistently accurate outputs
? Impressive acoustic and electrical noise resistance
? 6.6Hz refresh rate on the MB7052

MB7052?XL-MaxSonar-WRM1?Ultrasonic Rangefinder?Applications and Uses
? Autonomous Navigation
? Environments with acoustic and electrical noise
? Bin Level Measurement
? Tank Level Measurement

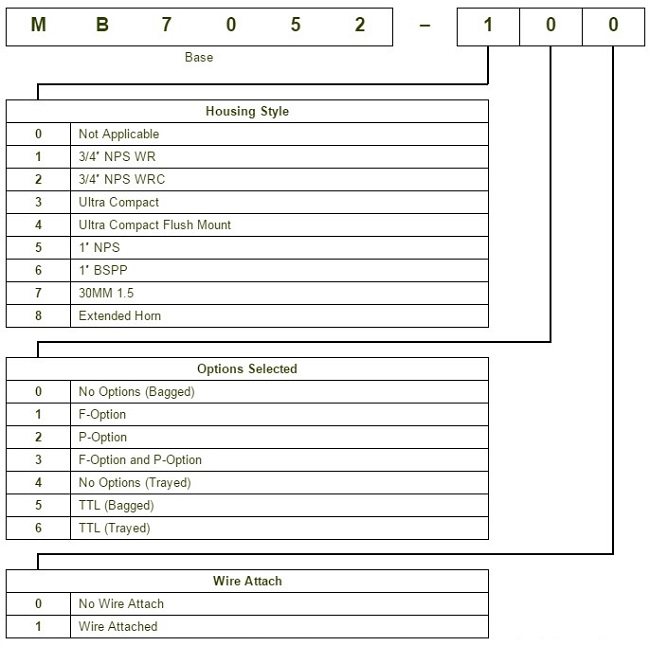

MB7052?XL-MaxSonar-WRM1?Ultrasonic Rangefinder?Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
