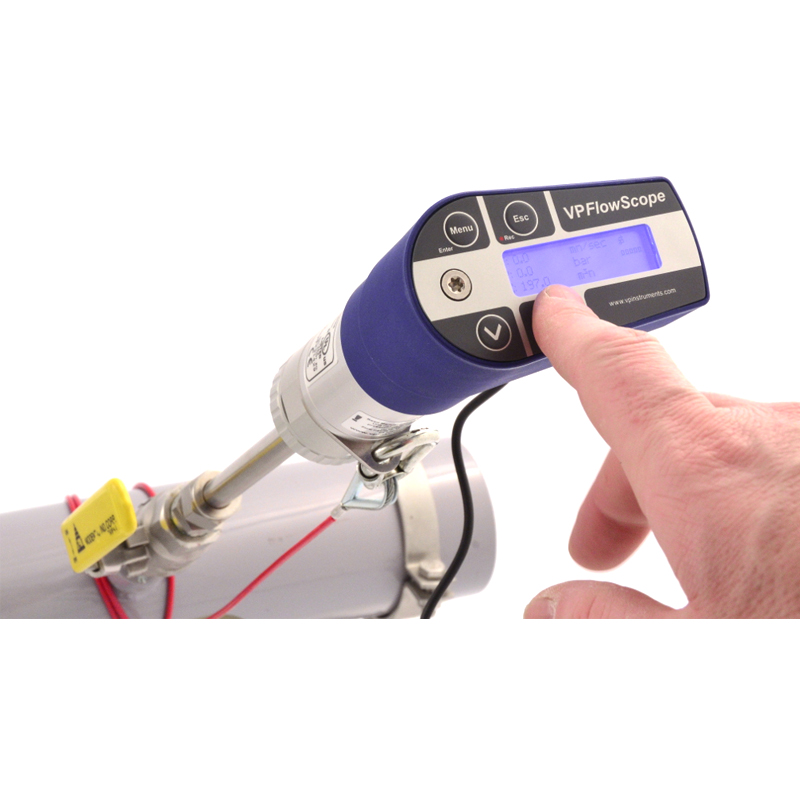

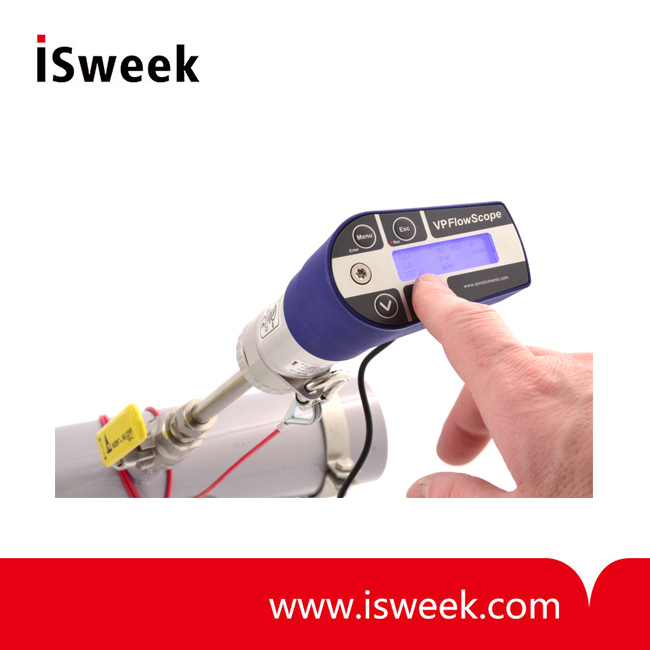

Wet Compressed Air Flow Meters - VPFlowScope DP
? Flow: 20 ~ 200 mn/sec | 65 ~ 650 sfps
? Bi-directional: Standard
? Pressure: 0 ~ 16 bar | 0 ~ 250 psi gauge
? Temperature: -40 ~ 150 °C | -40 ~ 320 °F. Icing should be avoided
? Gas types: Wet compressed air, dry compressed air, nitrogen and inert gases
? Output: RS485 (Modbus RTU) digital | 4 … 20 mA analog
? Probe length: 400 mm | 15" (other lengths on request)
? Power supply: 12 ~ 24 VDC
? Approvals: CE, UL/CUL
- Model Number: VPFlowScope DP
- Data Sheet:
- Quantity:
- - +
Product Specification
VPFlowScope DP Compressed Air Flow Meters Description
The VPFlowScope DP measures mass flow, temperature and pressure simultaneously and is optimized for wet compressed air measurements. The patented design has a bright blue LCD display which provides real-time information that, in combination with the built-in data logger, enables you to make recordings for certain periods of time. In turn, you can use our VPStudio software to process this data and print reports for real-time measurements.
VPFlowScope DP Compressed Air Flow Meters Features and benefits
? For wet compressed air
? Three sensors in one instrument
? Standard Modbus and 4 … 20 mA
? Bi-directional
VPFlowScope DP Compressed Air Flow Meters Applications
? Air audits
? Compressor efficiency monitoring
? Air treatment equipment (drier/filter) monitoring
VPFlowScope DP Compressed Air Flow Meters Specifications
Flow measurement
(minimum detection level and max flow rate shown)
Flow range
20...200 mn/sec
65…650 sfps
Accuracy
2% of reading under calibration conditions
Recommended pipe diameter: 50mm | 2 inch and up
Reference conditions
0°C, 1013.25 mbar - DIN1343
32°F, 14.65 psi
Gas temperature
-40....150°C
-40..302°F Icing should be avoided
Gases
Compressed air, non aggressive gasses and non combustible
gasses, 95% non condensing gases
Pressure sensor
Range
0...16 bar gauge
0…250 psi gauge
Accuracy
+/- 1.5% FSS (0...60°C)
+/- 1.5% FSS (32..140°F)
Temperature sensor
Range
-40....150°C
-40…302°F
Accuracy
+/- 1°C
Display
Technology
Liquid crystal
Back light
Blue with auto power save
Memory
2.000.000 point memory
Mechanical
Probe length
400 mm
15.7 inch
Probe diameter
12.7 mm
0.5 inch
Process connection
Compression fittings, 0.5 inch, NPT thread
IP grade
IP52 when mated to display module
IP63 when mated to connector cap
Wetted materials
Alu, SS316, epoxy
Ambient temperature
0..60°C
32 .. 140°F
Ambient humidity
10 - 95%. Avoid condensation at all times
Inputs and outputs
Analog
4..20mA or pulse, selectable via installation software
Serial IO
Modbus RTU
Supply
12..24 VDC +-10% CLASS 2 (UL)
Power consumption
150mA at 24VDC
VPFlowScope DP Compressed Air Flow Meters Order information
The VPFlowScope DP is available in 1 length (400 mm) only. You can choose some options:
|
Order Code |
Flow range |
Option |
Length |
Option |
Display |
|
VPS.R200.P4DP |
20 to 200 mn/sec |
P400 |
400 mm length |
D0 |
No display, No connector cap |
|
|
|
|
|
D10 |
Display |
|
|
|
|
|
D11 |
Display + 2M point logger |
|
|
|
|
|
D2 |
Connector cap |
