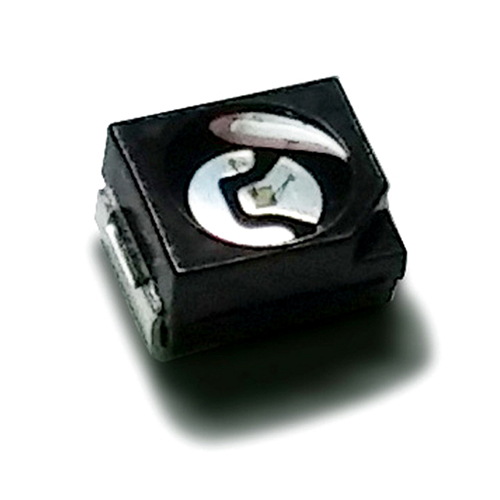

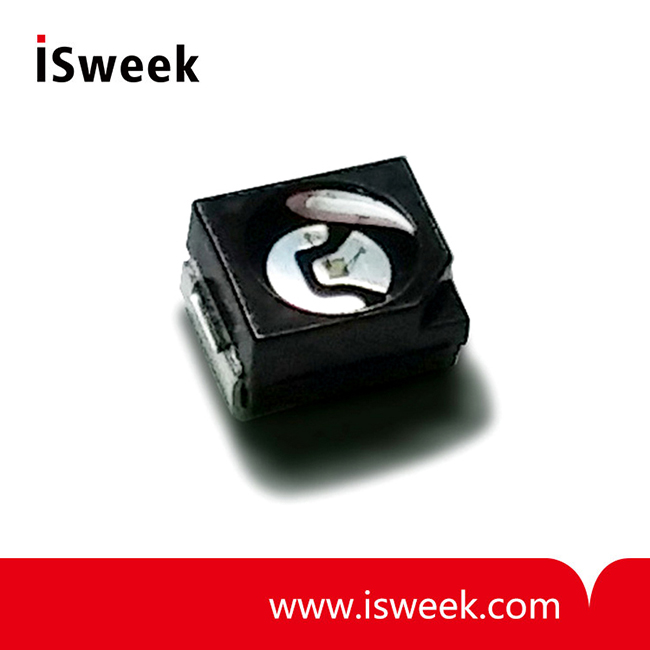

UV / Visible Sensor - GVGR-S11SD
- Reverse Voltage: 5V
- Dark Current(Max.): 1nA
- Spectral Detection Range: 295~490nm
- SMD3528 with Si-encapsulant
- Indium Gallium Nitride Based Material
- PN-type Photodiode
- Photovoltaic Mode Operation
- High Responsivity & Low Dark Current
- Model Number: GVGR-S11SD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GVGR-S11SD?UV / Visible Sensor?Features
SMD3528 with Si-encapsulant
Indium Gallium Nitride Based Material
PN-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. GVGR-S11SD?UV / Visible Sensor?Applications
UV LED Monitoring (385, 405nm, etc.)
Blue LED Monitoring
UVA Lamp Monitoring
UV Curing

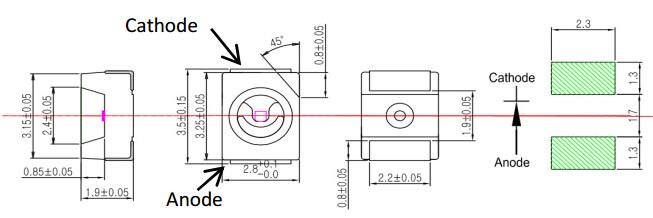

3. GVGR-S11SD?UV / Visible Sensor?Outline?Diagrams?and?Dimensions?
4. GVGR-S11SD?UV / Visible Sensor?Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃
5. GVGR-S11SD?UV / Visible Sensor?Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 44nA (405nm LED, 1mW/cm2)

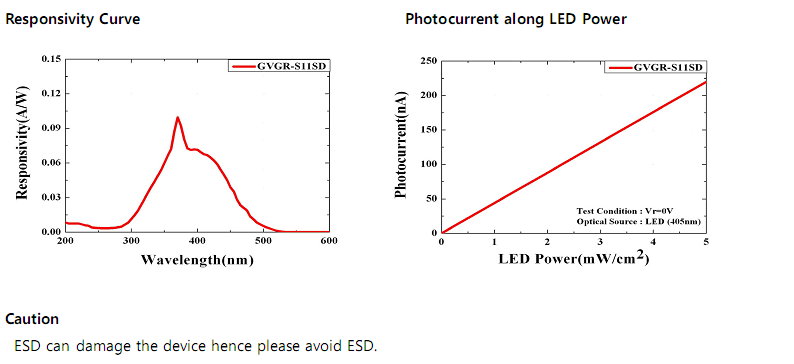

Responsivity: 0.07A/W
Spectral Detection Range: 295~490nm
