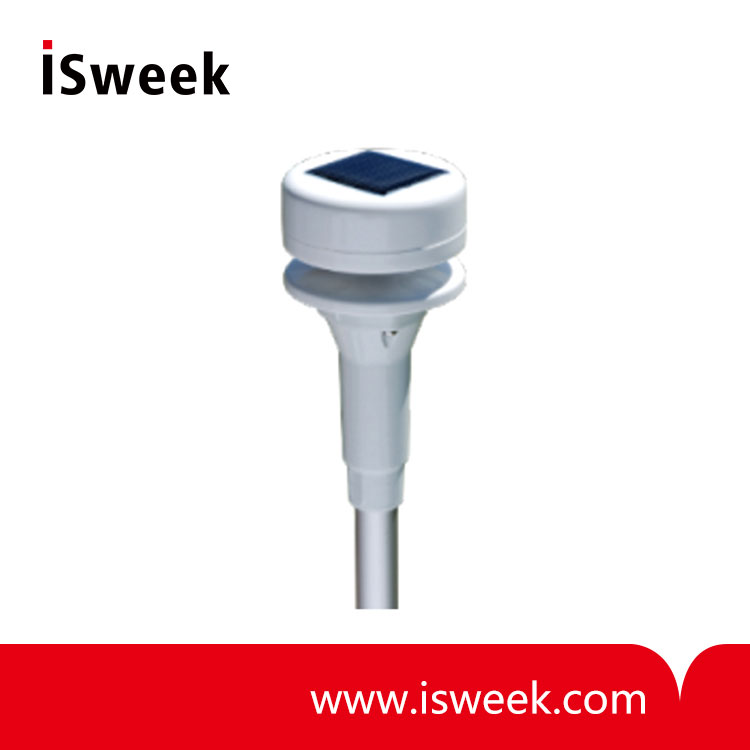

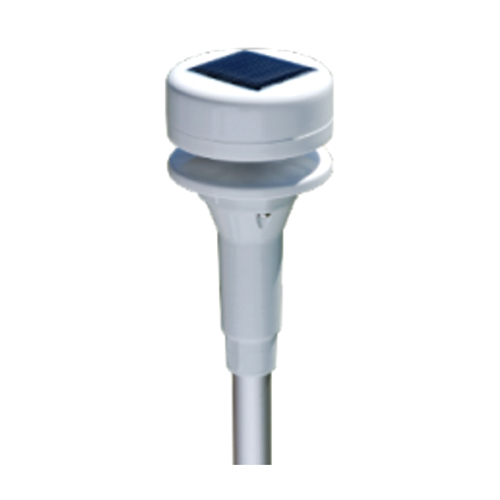

Ultrasonic Wind Speed Sensor - SONIC-ANEMO-DZP

Output rate: 1 measure and update per second
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1° (9 bits)
Power supply: Photovoltaic Panel, Battery LIFEPO4
Op. temp. without icing: -15° C to +55° C

Model Number: SONIC-ANEMO-DZP
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor Description:

SONIC-ANEMO-DZP UltraSonic Anemometer is powered by its own solar panel. It is well suited to remote installations where power consumption matters. This unit connects directly to a pulse or potentiometer input (i.e. on Davis instruments). It is a useful product for professionals, integration to AWS (Autonomous Weather Station), and well-informed users.

SONIC-ANEMO-DZP Ultrasonic Wind Speed Sensor Specification:

Output data format	WA: 25KΩ, 5V max, WS: Pulse open collector 10 mA max
Information transmited	Instant. W. Speed, Instant. W. Angle
Output rate	1 measure and update per second
Wind module sensitivity	0.12 m/s
Wind module resolution	0.05 m/s
Wind module dynamic	0.12 to 40 m/s
Direction sensitivity	+/-1.5°
Direction resolution	1° (9 bits)
Power supply	Photovoltaic Panel, Battery LIFEPO4
Electrical consumption	n.a. / operates from exposition of 50 W /m2
Op. temp. without icing	-15° C to +55° C
Cable	5 m / 4x0.22 mm2 UV proof
Connection	RJ11
Weight of the head	N/A
Weight of unit assembly	200 gr with mounting part
Mounting	Vertical ; 300 aluminium arm, ? 16 mm

Options

These industrial option are "Din" boxes with:
? 1x connection for 24VDC/AC power supply
? 1x connection for CV7-V data
? 1x 12 V connection for CV7-V power supply
? Galvanic isolation betwen power supply and analog outputs
? Galvanic isolation betwen power supply and sensor's power supply
? The sensor input is optocoupled.

420 AC

This option features :
? 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
? 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
? 2 Dry contacts for wind speed alarm

ANA-AC

This option features 3 outputs 0-10V:
? 0-15m/s
? 0-30m/s or 0-40m/s selectable
? 0-359° wind direction.
