Ultrasonic Thickness Gauge - GM130

? Measuring range: 1.0~300mm (Steel)
? Accuracy: ±(1%H+0.1mm)
? Working frequency: 5MHz
? Resolution: 0.01mm/0.1mm
? Sound velocity range: 1000~9999m/s
? Operation temperature: 0 to 40℃
? Temperature of workpiece: < 60 ℃
? Relative Humidity: <90%

Model Number: GM130
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

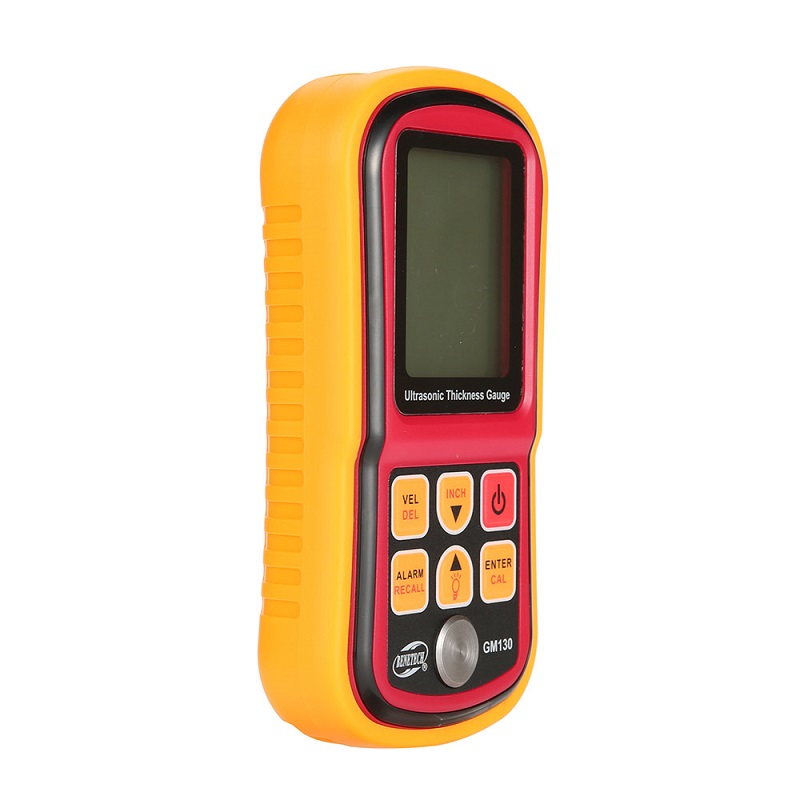

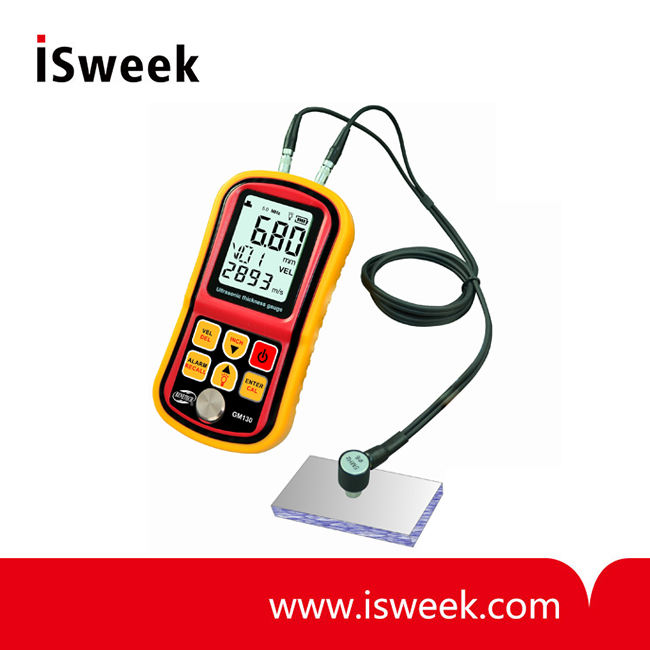

GM130 Ultrasonic Thickness Gauge Introduction
This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardw- are /parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.

GM130 Ultrasonic Thickness Gauge Scope of application
This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc., as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron due to its big crystalloid composition.

GM130 Ultrasonic Thickness Gauge Features and functions
? Auto calibration to assure the accuracy
? Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
? Preset 12 sound velocities for different material
? Coupling status indication
? 12 thickness measurement data store and recall
? Thickness alarm setup
? acklight display
? Low battery indication
? Auto power off
? Metric / Imperial selection

GM130 Ultrasonic Thickness Gauge Specification

Measuring range	1.00 to 300.0mm(steel)
Accuracy	±(1%H+0.1mm) H denotes the measured thickness
Working frequency	5MHz
Resolution	0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm)
Minimum limit for tube measuring (steel)	Ф152.0mm(￠6mm transducer) Ф 203.0mm(￠10mm transducer)
Sound velocity range	1000 to 9999m/s Thickness≤20mm, accuracy of velocity:±1% Thickness≥20mm, accuracy of velocity: ±5%
Operating environment	Operation temperature: 0 to 40℃ Temperature of workpiece: < 60 ℃ Relative Humidity: <90% Do not apply in violent vibration / erosive material Avoid impact and humidity
Power supply	1.5V AAA * 3 PCS
Operation current	≤35mA (with back light on)
Size	7229146mm
Weight	223g
