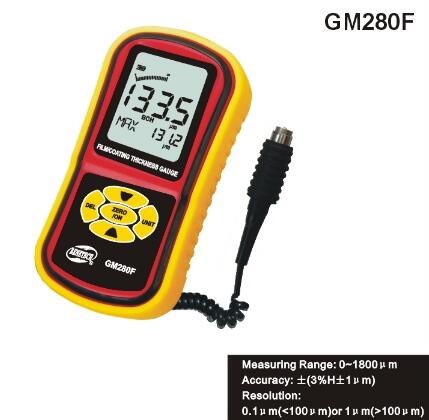

Film/Coating Thickness Gauge - GM280F

? Measuring range: 0~1800μm
? Accuracy: ±(3%H±1μm)
? Resolution: 0.1μm or 1μm
? Power supply: 3*1.5V AAA alkaline battery
? Operation current: Around 25mA
? Battery life: Continuously 20 hour
? Operation temperature: 0 to 40℃
? Operation humidity: 10 to 95%RH

Model Number: GM280F
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM280F Film/Coating Thickness Gauge Introduction
This product adopts piezoelectric effect of artificial polarized ceramic for design. it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. Field.

GM280F Film/Coating Thickness Gauge Features
? LCD displays measurement result and conditions directly
? Measures acceleration (m/s² peak), velocity (mm/s ms), and displacement (mm p-p)
? Selective vibration characteristic
? Uses hi-sense of vibration sensor, measuring accurately
? Equipped with two probes (S and L) to adapt the different measurement requirements
? Provides a magnetic probe to fit the condition uneasy hold on by hand
? Low battery indication
? Auto turn off function
? LCD back light function
? Maximum value hold function
? Temperature unit °C/°F selection

GM280F Film/Coating Thickness Gauge Measurement range

Range	Resolution	Accuracy
0 to 1800μm	0.1μm/1μm	±(3%H+1μm)

Remark: H= Nominal transformation ratio

GM280F Film/Coating Thickness Gauge Condition of Objective material
? Suitable for measure about non magnetic coating on magnetic conductor base material.
? The minimum curvature radius. Convex=2mm Concave= 11mm
? Base sample diameter: 12mm
? Base substrate thickness: 0.5mm

GM280F Film/Coating Thickness Gauge Specification

Technical parameter	Technical index
LCD display	3 1/2 display
Power supply	3*1.5V AAA alkaline battery
Operation current	Around 25mA
Battery life	Continuously 20 hour
Auto off	1 min.
LCD backlight function	7 second
Operation temperature	0 to 40℃
Operation humidity	10 to 95%RH
Low battery indication	2.8V±0.2V
Product size	72x35x145mm
Weight	246.1g (without battery)
