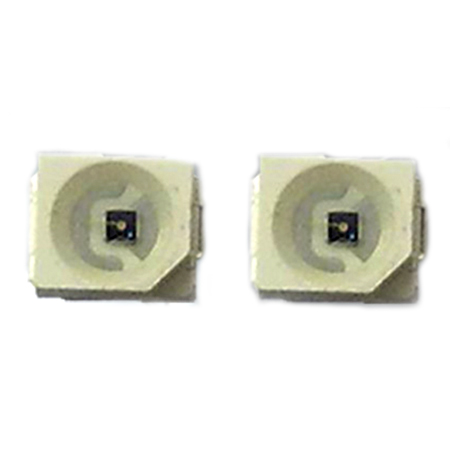

SMD Light Sensor - EKPSMD3528
Special filter epoxy encapsulation;
Special response characteristics similar to the human eyes;
Linear output with light changes;
Have certain temperature stability;
Low dark current,low intensity of illumination.
- Model Number: EKPSMD3528
- Quantity:
- - +
Product Specification
Light sensor, with a chip built in, is sensitive to ambient light. Its photopic response is close to human eye. Being compliant with RoHs, it can be used as replacement of Cds photocell. Packing comes as 3000pcs/reel
EKPSMD3528 SMD Light Sensor Features:
Special filter epoxy encapsulation;
Special response characteristics similar to the human eyes;
Linear output with light changes;
Have certain temperature stability;
Low dark current,low intensity of illumination.
EKPSMD3528 SMD Light Sensor Typical Applications:
Direct replacement of CdS LDR;
Adjust background light,such as PDA,television,Cameras,
LCD/LED displays and mobile phones,etc.;
Electronic toys and lighting equipment
EKPSMD3528 SMD Light Sensor Structure Diagram: (unit: mm)
EKPSMD3528 SMD Light Sensor Ultimate parameters: Ta=25℃:
|
parameters |
Symbol |
Rating |
Unit |
|
Positive Breakdown Voltage |
Vdd |
70 |
V |
|
Reverse Breakdown Voltage |
-Vdd |
7 |
V |
|
Max. Power |
PD |
100 |
mW |
|
Working Temperature |
Topr |
-25~+70 |
℃ |
|
Storage Temperataure |
Tstg |
-25~+80 |
℃ |
|
Welding Temperataure (5") |
Tsol |
260 |
℃ |
EKPSMD3528 SMD Light Sensor Electrical Optical Characteristics Ta=25℃:
|
Parameters |
Symbol |
Test Conditions |
Min. |
Typ. |
Max. |
Unit |
|
|
Light Current |
EKPSMD3528 |
IC (Vdd=5V
Rss=1k)
|
Vdd=5V, Ev= 10Lux |
|
|
|
μA |
|
Vdd=5V, Ev= 20Lux |
10 |
17 |
22 |
||||
|
Vdd=5V, Ev= 100Lux |
|
|
|
||||
|
Dark Current |
Idrk |
Vdd=5V, Ee= 0 *2 |
|
|
10 |
nA |
|
|
Spectrum |
λ |
|
450~1050 |
nm |
|||
|
Saturation Voltage |
Vdd-Vss |
|
|
0.3 |
|
V |
|
|
Rise Time |
tr |
Vdd=5V, IC=5mA
RL=1K
|
|
3.2 |
|
μS |
|
|
Fall time |
tf |
|
4.8 |
|
μS |
||
