Light Sensor - EKPSMD111A
Direct replacement CdS LDR
RoHS
Enhanced photosensitive sensor
Direct replacement CdS LDR;
Adjust background light,such as television,PDA,Cameras,LCD/LED
displays and mobile phones,etc.;
Control toys and lighting equipment.
- Model Number: EKPSMD111A
- Quantity:
- - +
Product Specification
EKPSMD111A Light Sensor General Features
- Direct replacement CdS LDR
- RoHS
- Enhanced photosensitive sensor
EKPSMD111A Light Sensor Typical applications
Direct replacement CdS LDR;
Adjust background light,such as television,PDA,Cameras,LCD/LED
displays and mobile phones,etc.;
Control toys and lighting equipment.
EKPSMD111A Light Sensor Characteristic
Special filter epoxy encapsulation,spectral response characteristics
similarto the human eys;
Linear output with light changes;
Have certain temperature stability;
Low dark current,low intensity of illumination;
RoHS.

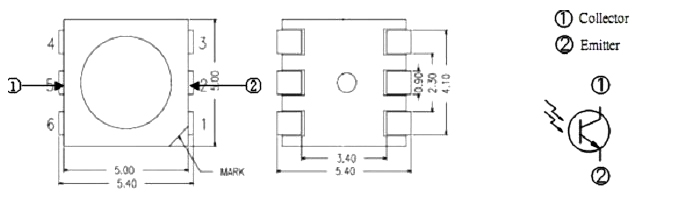

EKPSMD111A Light Sensor Structure diagram
|
parameters |
Symbol |
Rating |
Unit |
|
Positive Breakdown Voltage |
Vdd |
70 |
V |
|
Reverse Breakdown Voltage |
-Vdd |
7 |
V |
|
Max. Power |
PD |
450 |
mW |
|
Working Temperature |
Topr |
-25~+70 |
℃ |
|
Storage Temperataure |
Tstg |
-25~+80 |
℃ |
|
Welding Temperataure (5″) |
Tsol |
260 |
℃ |
EKPSMD111A Light Sensor Photoelectric Characteristic
|
Parameters |
Symbol |
Test Conditions |
Min. |
Typ. |
Max. |
Unit |
|
|
Bright Current |
EKPSMD111A
|
Iss (Vdd=5V
Rss=1k)
|
Vdd=5V, Ev= 10Lux |
|
|
|
μA |
|
Vdd=5V, Ev= 20Lux |
1000 |
2000 |
2500 |
||||
|
Vdd=5V, Ev= 100Lux |
|
|
|
||||
|
Dark Current |
Idrk |
Vdd=5V, Ee= 0 |
|
|
10 |
nA |
|
|
Spectrum |
λ |
|
480 |
|
1050 |
nm |
|
|
Saturation Voltage |
Vdd-Vss |
|
|
0.18 |
|
V |
|
|
Rise Time |
tr |
Vdd=5V, Iss=100mA |
|
3.2 |
|
μS |
|
|
Fall time |
tf |
|
4.8 |
|
μS |
||
