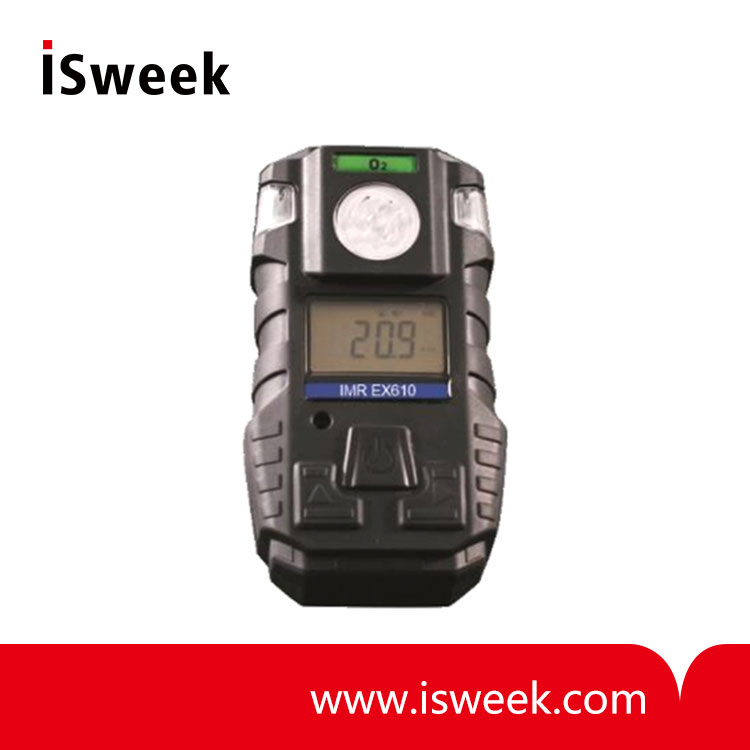

SMART Sensor Gas Detector - IMR EX610

? Target gas: combustible gas, toxic gas, Oxygen
? Detecting method: Natural diffusion
? Power Source: Lithium battery (DC3.7V 1800mAh)
? Charging time: 4 ~ 6hours
? USB connectivity for data transfer
? Explosion-proof grade: Exia II CT4
? Ingress protection: IP66

Model Number: IMR EX610
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IMR EX610 SMART Sensor Gas Detector MAIN FUNCTION AND FEATURES
? SMART sensor module, easy for replacement and maintenance
? Intrinsically safe design
? Wide screen LCD
? High / Low alarm adjustable
? Calibration level adjustable for each calibration
? Combustible gas channel with high-concentration protection function
? Low-voltage alert
? Internal memory storage of measurements (10,000 records)
? Data upload to PC
? Audible, visual and vibration alarm
? Self-test power on
? Self-diagnostic and self-correction function

IMR EX610 SMART Sensor Gas Detector TECH SPECIFICATIONS
? Target gas: combustible gas, toxic gas, Oxygen
? Detecting method: Natural diffusion
? Response Time:
Semi-conductor, Catalytic, Thermal Conductivity t₉₀ < 30s
Oxygen, Carbon Monoxide, Hydrogen Sulfide t₉₀ < 30s
Other Sensors t₉₀ < 120s
? Working Conditions:
Combustible Gas: -40°C ~ 70°C
Toxic Gas: -20°C ~ 50°C
Working humidity: ≤ 95%RH non-condensating
? Power Source: Lithium battery (DC3.7V 1800mAh)
? Charging time: 4 ~ 6hours
? Continuous working time:
≥ 8 hours (for combustible gas and toxic gas)
≥ 300 hours (for toxic gas under temperature of 20°C)
? USB connectivity for data transfer
? Explosion-proof grade: Exia II CT4
? Ingress protection: IP66
? Dimensions: 108.4mm x 61mm x 36mm
? Weight: about 191g

IMR EX610 SMART Sensor Gas Detector SPECIFICATION

Gas	Detection Range	L-Alarm Point	H-Alarm Point	TWA (ppm)	STEL (ppm)
CH4/CO/H2S/O2	N/A	N/A	N/A	N/A	N/A
LEL	0-100% LEL	20% LEL	50% LEL	N/A	N/A
CO/H2S/O2	N/A	N/A	N/A	N/A	N/A
CH4	0-100% LEL	20% LEL	50% LEL	N/A	N/A
C3H8	0-100% LEL	20% LEL	50% LEL	N/A	N/A
O2	0-30% vol.	19.5% vol.	23.5% vol.	N/A	N/A
H2S	0-100 ppm	10 ppm	15 ppm	10 ppm	15 ppm
CO	0-1000 ppm	35 ppm	200 ppm	35 ppm	200 ppm
CO	0-2000 ppm	35 ppm	200 ppm	35 ppm	200 ppm
NH3	0-100 ppm	25 ppm	50 ppm	25 ppm	35 ppm
CL2	0-20 ppm	5 ppm	10 ppm	0.5 ppm	1.0 ppm
SO2	0-100 ppm	2 ppm	5 ppm	2 ppm	5 ppm
CO2	0-5000 ppm	1500 ppm	2000 ppm	N/A	N/A
CH4	0-5% vol.	0.5% vol.	1% vol.	N/A	N/A
H2	0-100% LEL	20% LEL	50% LEL	N/A	N/A
H2	0-1000 ppm	35 ppm	250 ppm	N/A	N/A
NO	0-100 ppm	25 ppm	50 ppm	25 ppm	50 ppm
NO2	0-20 ppm	5 ppm	10 ppm	5 ppm	10 ppm
PID	0-100 ppm		PID Sensor Module for VOC
MOS	0-1000 ppm		MOS Sensor Module for VOC
PH3	0-20 ppm	5 ppm	10 ppm	5 ppm	10 ppm
HCN	0-100 ppm	5 ppm	10 ppm	5 ppm	10 ppm
HCI	0-20 ppm	5 ppm	10 ppm	5 ppm	10 ppm
