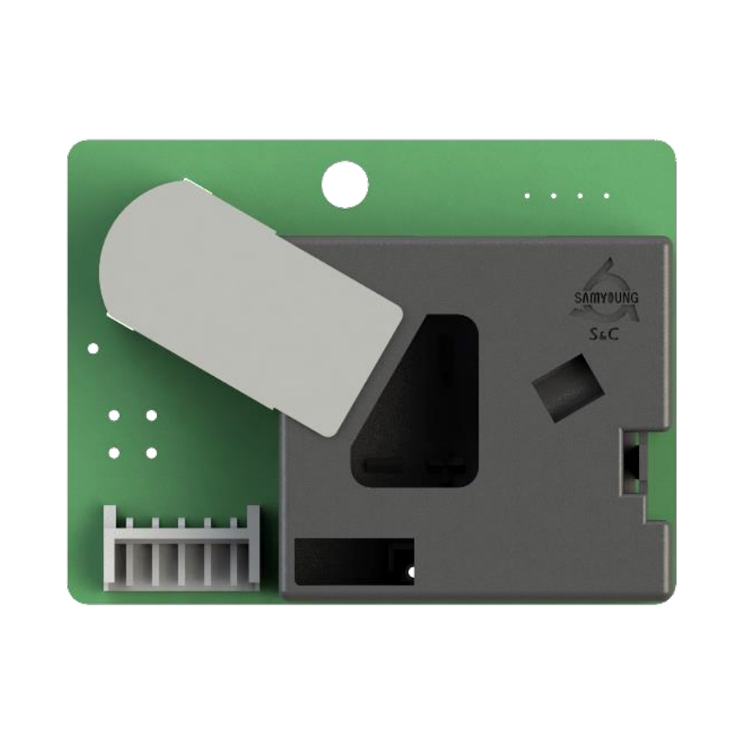

PM2.5/PM1.0 Particle Sensor - PSMU Series
? Detectable Size: ≥0.3μm
? Effective Range: 0 ~ 500 μg/m3
? Maximum Range: 0 ~ 900 μg/m3
? Response Time: 1sec
? Supply Voltage: DC 5.0V±10% Ripple 30mV or Less
- Model Number: PSMU Series
- Data Sheet:
- Quantity:
- - +
Product Specification
PSMU Series PM2.5/PM1.0 Particle Sensor Description
PSMU Series, in which SAMYOUNG S & C's 20years knowledge and technology are concentrated, is a PM2.5/PM1.0 dedicated sensor with a radical improvement for detection capability at ultra-fine particle range - 0.3μm~1.0μm, which assures PM2.5/PM1.0 weight concentration values more accurate than conventional presumptive sensors.
PSMU Series which performs higher accuracy along with improved sensitivity than conventional sensors provides reliable information to users enabling more accurate and sophisticated control in the applications such as air purifiers, air conditioners and air quality measuring devices.
PSMU Series?PM2.5/PM1.0 Particle Sensor?Features
? Detectable Particle Size - ≥0.3μm
? Real-time PM2.5/PM1.0
? UART Output - μg/m3
? Excellent Accuracy
? High Linearity and Uniformity
? Market-proven Reliability and Durability
PSMU Series?PM2.5/PM1.0 Particle Sensor?Applications
? Air Solution Products (Air Purifier, Air Conditioner and etc.)
? HVAC Control System
? Smart IAQ Device
? Outdoor Particle Sensing Device
PSMU Series?PM2.5/PM1.0 Particle Sensor?Product Specifications (Ta=25°C)
|
Parameter |
Index |
|
Detectable Size |
≥0.3μm |
|
Effective Range |
0 ~ 500?μg/m3 |
|
Maximum Range |
0 ~ 900?μg/m3 |
|
Accuracy |
±25% @ 100 ~ 500?μg/m3 ±25μg @ 0 ~ 100?μg/m3 |
|
Time for Initial Stabilization |
60 sec. after powered on |
|
Response Time |
1sec |
|
Supply Voltage |
DC 5.0V±10% Ripple 30mV or Less |
|
Current Consumption |
Typ. 85mA |
|
Output Signal |
UART |
|
Operating Temperature |
-10 ~ 65°C |
|
Operating Humidity |
<95%RH (Non-Condensing) |
|
Storage Temperature |
-20 ~ 80°C |
|
Storage Humidity |
<95%RH (Non-Condensing) |
|
Dimensions |
59 x 45 x 17mm (W x H x D) |
|
Light Source Life Time |
Min. 5 years |
|
Weight |
25g |
