Product Specification

GP2Y1010AU0F Compact Optical Dust Sensor Description:

This an optical air quality sensor, designed to sense dust particles using the SHARP GP2Y1010AUOF chipset.

An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air. It is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.

The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m.

*The resistor and capacitor included in this kit can be used to create a filter (highpass/lowpass) at the output of the sensor for more accurate readings. Comes with cable.



GP2Y1010AU0F Compact Optical Dust Sensor Features:

1. Compact, thin package (46.0 × 30.0 × 17.6 mm)

2. Low consumption current (Icc: MAX. 20 mA)

3. The presence of dust can be detected by thephotometry of only one pulse

4. Enable to distinguish smoke from house dust

5. Lead-free and RoHS directive compliant



GP2Y1010AU0F Compact Optical Dust Sensor Applications:

1. Detecting of dust in the air.

2. Example: Air purifier, Air conditioner, Air monitor



GP2Y1010AU0F Compact Optical Dust Sensor Specifications:

· Analog sensor

· Low current consumption: 11-20mA

· Vin: 7VDC

· Precision: 0.5V/0.1mg/m

· Dimensions: 1.81 x 1.18 x 0.69" (46.0 × 30.0 × 17.6 mm)

· 0.02 kg

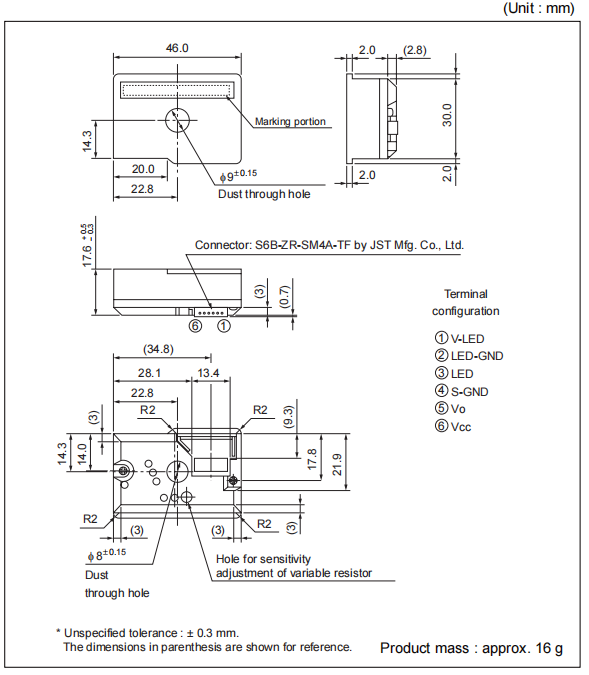

GP2Y1010AU0F Compact Optical Dust Sensor Outline Dimensions:



GP2Y1010AU0F Compact Optical Dust Sensor Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Rating	Unit
Supply voltage	VCC	-0.3 to +7	V
Input terminal voltage *1	VLED	-0.3 to VCC	V
Operating temperature	Topr	-10 to +65	°C
Soldering temperature	Tsol	-20 to +80	°C

^*1 Open drain drive input

GP2Y1010AU0F Compact Optical Dust Sensor Electro-optical Characteristics (Ta=25°C, VCC=5V)

Parameter	Symbol	Conditions	MIN.	TYP.	MAX.	Unit
Sensitivity	K	*1 *2 *3	0.35	0.5	0.65	V/(0.1mg/m3)
Output voltage at no dust	VOC	*2 *3	0	0.9	1.5	V
Output voltage range	VOH	*2 *3 RL =4.7kΩ	3.4	?	?	V
LED terminal current	ILED	*2 LED terminal voltage = 0	?	10	20	mA
Consumption current	ICC	*2 RL =∞	?	11	20	mA

^*1 Sensitivity is specified by the amount of output voltage change when dust density changes by 0.1 mg/m3.
     And the dust density for detection is a value of the density of cigarette (MILD SEVEN?) smoke measured
     by the digital dust monitor (P-5L2: manufactured by SHIBATA SCIENTIFIC TECHNOLOGY LTD.).
^*2 Input condition is shown in Fig. 1
^*3 Output sampling timing is shown in Fig. 2
