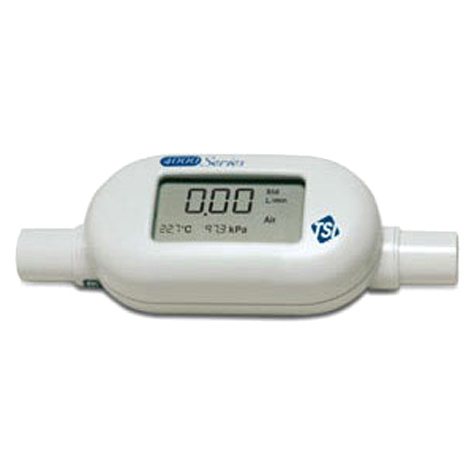

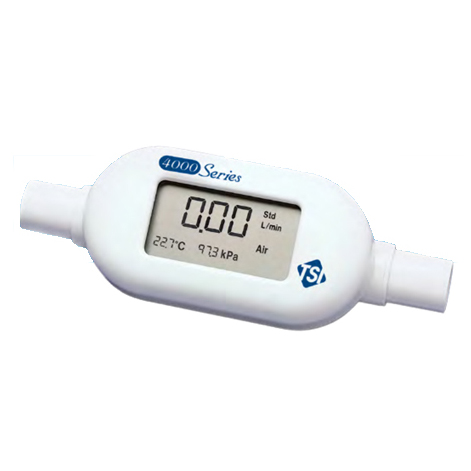

Mass Flowmeter for Gases - 4040

? Fast and accurate
? Low pressure drop
? ?Calibration: Air, O2, N2
? Inlet/Outlet Diameter: 22 mm ISO tapered
? Flow Measurement Range: 0-300 Std L/min
? Volume Measurement Range: 0.01 - 99.9 liters?
? Pressure Measurement? Range?: 50-199 kPa absolute?
? Temperature Measurement? Range?: 0-50°C?
? ?DC Power Input?: 7.5 VDC ±1.5 V, 300 mA max?

Model Number: 4040
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

4040 Mass Flowmeter PRODUCT DETAILS
The Mass Flow Meter 4040 features a 22mm ISO connection. It can be calibrated for air, oxygen, or nitrogen and has a 0-300 liter per minute range.

Whether measuring gas flows in a laboratory, hospital or clinic, or manufacturing setting, TSI general purpose mass flow meters provide accurate results and support multiple data output options. The display versions come complete with accessories, making setup and operation fast and convenient.

The TSI mass flow meters are specified as two percent of flow rate reading. One TSI mass flow meter covers the same range as three percent (or more) of full scale devices, with better accuracy at most points.

Fast four-millisecond response ensures accuracy in fluctuating flows. This fast response time is ideal for closed-loop control systems and integrated volume measurements. Low pressure drop minimizes flow circuit back pressure and its impact on the system.

4040 Mass Flowmeter FEATURES AND BENEFITS
? Range: 0-300 L/min
? Calibration: Air, O2, N2
? Connection: 22mm ISO
? Fast and accurate, 4mm response time
? Low pressure drop

4040 Mass Flowmeter APPLICATIONS
? Medical
? Industrial
? Laboratory

4040 Mass Flowmeter SPECIFICATIONS – DIGITAL DISPLAY MODELS

Model		4040
Gas Calibration		Air, O2 , N2 , Air/O2 Mixture
Inlet/Outlet Diameter		22 mm ISO tapered
Flow Measurement	Range	0-300 Std L/min
	Accuracy — Air and O2	±2% of reading or 0.05 Std L/min, whichever is greater
	Accuracy — N2	±3% of reading or 0.1 Std L/min, whichever is greater
	Accuracy — Air and O2 mixture	±3% of reading or 0.1 Std L/min, whichever is greater
	Accuracy — N2O	N/A
	Response	4 ms to 63% of full scale flow
LCD Display Units		L/min, Std L/min
Overall Dimensions		7.2” x 2.5” x 2.1” (182 x 63 x 53 mm)
Volume Measurement	Range	0.01 - 99.9 liters
Volume Measurement	Accuracy	±2% of reading (see Operator’s Manual for additional details)
Pressure Measurement	Range	50-199 kPa absolute
	Accuracy	±1 kPa
	Response	<4 ms to 63% of final value for step charge
Temperature Measurement	Range	0-50°C
	Accuracy	±1°C at flow greater than 1 Std L/min
	Response	<75 ms to 63% of final value for step change
Outputs	Analog	0-10 VDC flow only, zero and span adjustable via RS232
Outputs	Digital	RS232
DC Power Input		7.5 VDC ±1.5 V, 300 mA max
