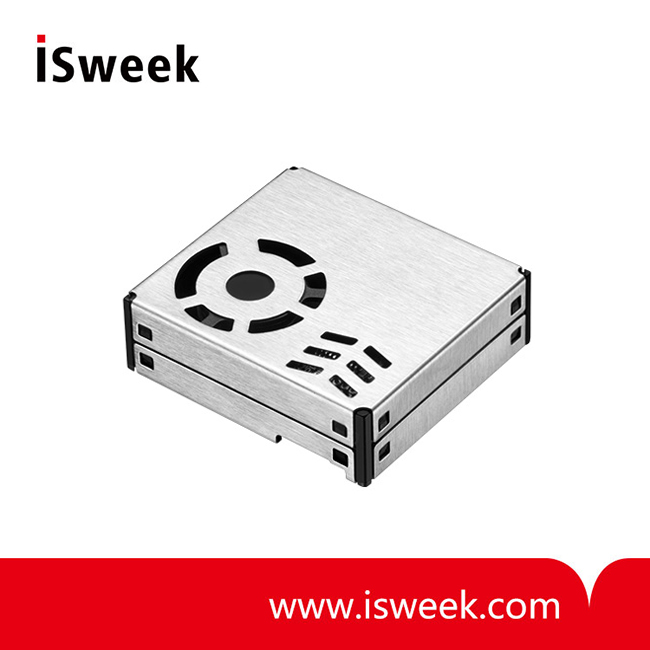

Laser Particulate Matter Sensor - MPM10 series
MPM10 series laser dust sensors adopt the principle of laser scattering, and are small in size. There are 6 products in total. The air inlet and outlet can be selected as required, which can accurately detect the concentration of suspended particles of 0.3~10μm, with high sensitivity and excellent performance.
- Model Number: MPM10 series
- Data Sheet:
- Quantity:
- - +
Product Specification
MPM10 series laser dust sensors adopt the principle of laser scattering, and are small in size. There are 6 products in total. The air inlet and outlet can be selected as required, which can accurately detect the concentration of suspended particles of 0.3~10μm, with high sensitivity and excellent performance.
Product parameters:
|
Parameters |
Indexes |
Unit |
|
Particulate matter detection category |
PM1.0, PM2.5, PM10 |
|
|
Particle size range of particulate matter |
0.3-10 |
um |
|
Mass concentration range of particulate matter (PM2.5 standard value) |
0~1000 |
μg/m3 |
|
Resolution ratio of mass concentration of particulate matter |
1 |
μg/m3 |
|
Ma ss c o n c e n tr a ti o n c o n sist e n c y o f particulate matter (PM2.5 standard value) * note |
±10%(@100 ~ 500μg/m3) ±10μg/m3 (@ 0 ~100μg/m3) |
|
|
Single response time |
≤1 |
s |
|
Comprehensive response time |
≤10 |
s |
|
DC supply voltage |
5.0 |
V |
|
Working current |
≤85 |
mA |
|
Standby current |
≤45 |
μA |
|
Output mode |
UART / IIC / PWM |
|
|
Storage temperature |
-30~+70 |
℃ |
|
Operating temperature range |
-10~+60 |
℃ |
|
Operating humidity range |
0-95%RH (without condensation) |
|
|
Mean free error time |
≥3 |
Y |
|
Boundary dimension |
37 . 8*34 . 8*11.8mm(L×W×H) |
mm |
Notes: Concentration consistency data of particulate matter are the data 2 in communication protocol (test condition: 25±2℃ and 50±10%RH).
