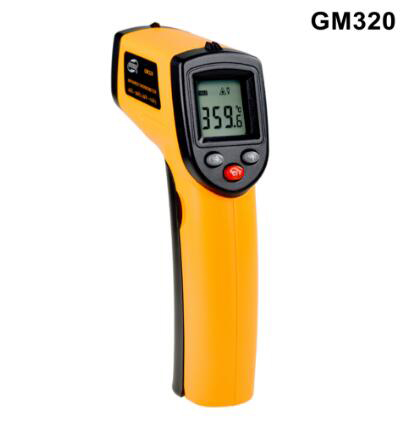

Infrared Thermometer - GM320
* Temperature range: -50 ~ 330℃ (-58~626℉)
* Accuracy: ±1.5% or ±1.5℃
* Repeatability: ±1% or ±1℃
* Distance Spot Ratio: 12:1
* Emissivity: 0.95 preset
* Resolution: 0.1℃/℉
* Response Time: 500ms
* Wavelength: 8-14μm
- Model Number: GM320
- Data Sheet:
- Quantity:
- - +
Product Specification
GM320 Infrared Thermometer Description
This GM320 infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
GM320 Infrared Thermometer Specification
|
Temperature range |
-50 ~ 330℃ (-58 ~ 626℉) |
|
Accuracy |
0℃~330℃ (32℉~626℉): ±1.5℃(±2.7℉) or ±1.5% -50℃~0℃(-58℉~32℉): ±3℃ (±5℉) Whichever is greater |
|
Resolution |
0.1℃ or 0.1℉ |
|
Repeatability |
1% of reading or 1℃ |
|
Response time |
500 mSec, 95% response |
|
Spectral response |
8-14 um |
|
Emissivity |
0.95 Preset |
|
Distance to Spot size |
12:1 |
|
Operating Temperature |
0 ~40℃ (32 ~ 104℉) |
|
Operating Humidity |
10~90%RH non-condensing, up to 30℃(86℉) |
|
Storage Temperature |
-20 ~ 60℃ (-4~140℉) |
|
Power |
1.5V AAA*2 battery |
|
Typical battery life |
Laser off:12 hrs |
